ISO9001 Stainless Steel 304 316 End Suction Centrifugal Pump 480m3/h
Price:
Negotiated
MOQ:
1 pcs
Delivery Time:
30 working days
Brand:
SANCHANG
Product Description
The IH series single stage end suction centrifugal pump is the most cost-effective solution for most every day pumping applications. End-suction pumps are available from dozens of manufacturers, in a wide range of materials of construction, and offered as both off-the-shelf and
custom-engineered products.

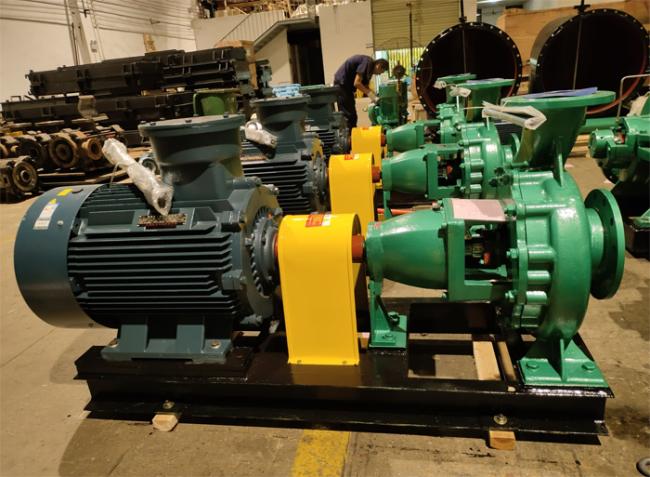

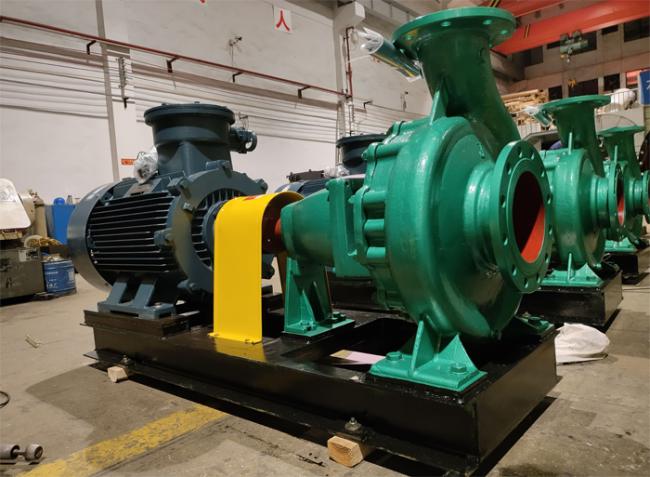

The highly efficient end suction pump is one of the simplest types of centrifugal pump that features motor slide rails and a back pull out design allowing for ready access and ease of maintenance. It’s a precision-made pump suitable for electric/diesel drives, designed to withhold temperatures of up to 105deg.C
Main Performance Data
Flow: 250 - 480 m3/h
Delivery Head: 48 - 52m
Inlet/Outlet Dia.: 200/150mm
Working Pressure: ≤ 0.8Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0℃ - 120℃
Model Instruction
E.G.: IS/IR/IY/IH/IHF200-150-400A
IS: Single stage end suction pump (for clean water)
IR: Single stage end suction pump (for hot water)
IY: Single stage end suction pump (for oil liquid)
IH: Single stage end suction pump (for corrosive liquid)
200: Inlet diameter is 100mm
150: Outlet diameter is 80mm
400: Rate impeller diameter is 160mm
A(B,C....): Impeller code
Applications
* Water supply
* Drainage
* Irrigation
* Air conditioning
* Fire fighting
* Condensate circulation
* Cooling services
* General industries
* Water transfer & boosting
* Drainage
* Irrigation
* Air conditioning
* Fire fighting
* Condensate circulation
* Cooling services
* General industries
* Water transfer & boosting
Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
| Parts Name | Clean Water | Drink Water | Hot Water | Corrosive Liquid | Acid Liquid |
| Pump Body | Cast Iron | S.S304 | Cast Steel/S.S304 | S.S304/S.S316 | Cast Iron + F46 |
| Shaft | Carbon Steel | S.S304 | S.S420/S.S304 | S.S304/S.S316 | S.S420/S.S630 |
| Shaft Sleeve | Carbon Steel | S.S304 | S.S420/S.S304 | S.S304/S.S316 | F46 |
| Impeller | Cast Iron | S.S304 | Cast Steel/S.S304 | S.S304/S.S316 | Cast Iron + F46 |
| Wearing Ring | Cast Iron | S.S304 | Cast Steel/S.S304 | S.S304/S.S316 | F46 |
| Bearing | China Make/NSK/SKF | ||||
| Seals | Mechanical Seals | ||||
