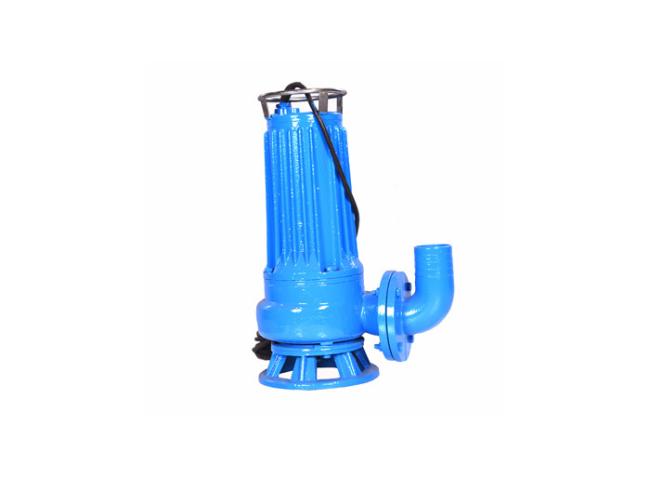

Electric 80mm Submersible Sewage Pump 460V 660V Cast Iron 380v Submersible Pump
80QW Series Submersible Water Pump for Raw Water Intake and Drainage
QW/WQ series submersible water pump, it is widely used in the raw water in-taking, irrigation, drainage applications, and also widely used in the civil water supply, industrial water delivery, sewage discharge, construction site, mining, etc. It is easy using, simple installation and easy movable.
Submersible pumps are used for a wide range of applications. If you have a small pump around your property or a well pump it is probably a submersible pump. Submersible pumps are also common in sewage applications, raw water pumping applications, and to remove storm water from structures like parking garages.
Submersible pumps are commonly used for sewage lift station applications. When water enters the wastewater system, in most cases it flows by gravity to a collection basin or sump. Submersible sewage pumps are then usually used to transfer the wastewater from the collection basin to a wastewater treatment plant.
While submersible pumps are designed to be operated while submerged, in some applications the units are installed in a dry environment called a dry-pit. Since the motors are designed to be water-cooled, in a dry pit application an external source of water must be used to cool the motors.
Main Performance Data
Flow: 10 - 4,000 m3/h
Delivery Head: 5-40m
Outlet Dia.: 50-600mm
Working Pressure: ≤ 1.5Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0℃-80℃
Model Instruction
E.G:100QW100-15-7.5
100: Outlet diameter (mm)
QW: Submersible pump
100: Flow capacity (m3/h)
15: Delivery head (m)
7.5: Motor power (kW)

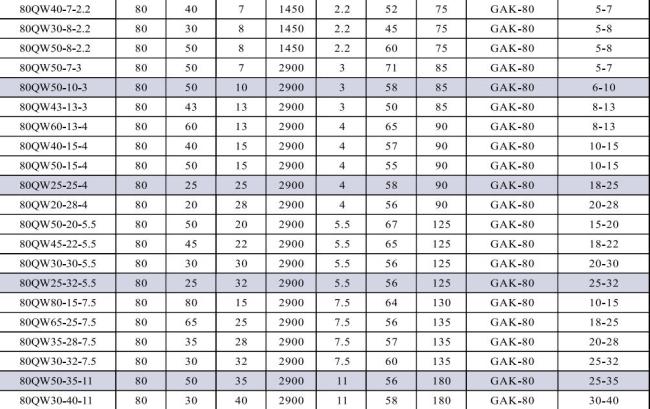

Performance Range of 80QW Submersible Water Pump
Applications
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
| Parts Name | For Clean Water | For Sewage | For Corrosive Liquid |
| Pump Case | Cast Iron HT250 | Ductile Iron/Cast Steel | S.S304 |
| Impeller | Cast Iron HT250 | Ductile Iron/Cast Steel | S.S304 |
| Shaft | Carbon Steel 45# | S.S420(2Cr13) | S.S304 |
| Shaft Sleeve | Carbon Steel 45# | S.S304 | S.S304 |
| Bearing | China Make/NSK/SKF | China Make/NSK/SKF | China Make/NSK/SKF |
| Seals | Mechanical Seals | Mechanical Seals | Mechanical Seals |
We offer a variety of service activities
* Installation & Commissioning of complete mechanical and electrical installations on turnkey basis.
* Repair & Maintenance - incidental service visits on location to breakdown repairs and maintenance on a 24-hour contract basis for products made by Sanchang or by any other manufacturer.
* Upgrades - with our engineering capabilities we can execute pump modifications to customer specifications of pump designs of most manufactures.
* Original spare parts - we provide stock control of spare parts for groups of pumps (total care maintenance). We are able to respond quickly and flexibly thanks to the availability of our own foundry.
