Power Plant SS316 High Pressure Centrifugal Water Pump 15-28m3/H

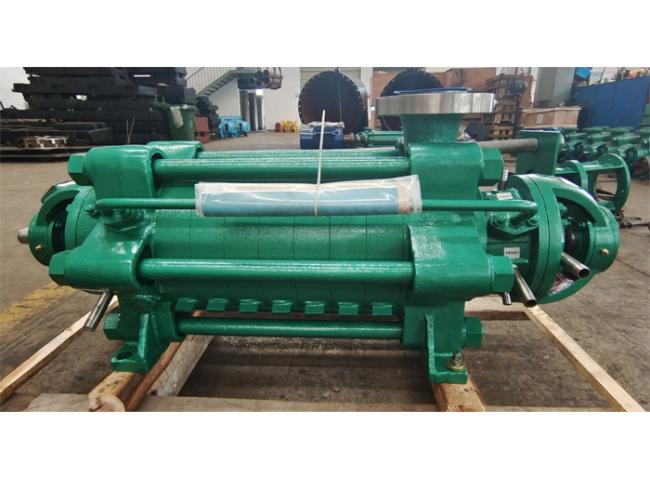

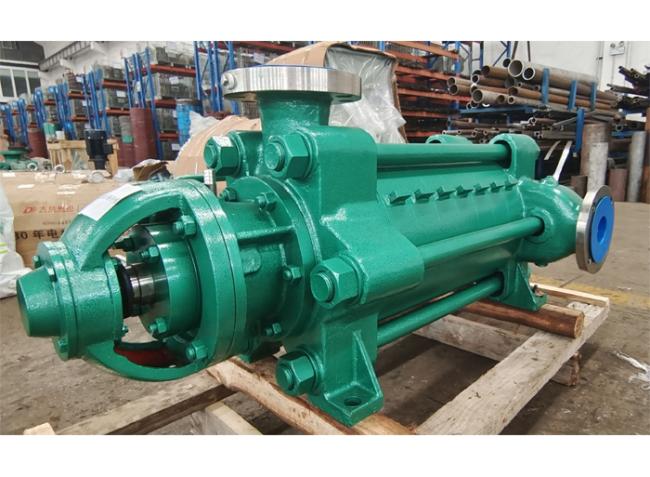

Horizontal Ring Section Multistage Centrifugal Water Pump D25-50X8 (Bare Shaft Pump)
The D series Multistage Ring Section Centrifugal Water Pump is a utility-grade, high-pressure, ring section pump with heavy duty, segmental ring, diffuser design. Axial thrust balance device with stacked rotor construction. Suitable for boiler feed pump and high building, long distance water transferring.
Features
High operating reliability
* Axial thrust balancing by balance disc.
* Adaptation of pump casing to rotor deflection line.
Ease of service
* Easy maintenance of wear parts (bearings, seal elements, balancing devices).
* Metal-to-metal sealing of casing.
Long service life
* Avoidance of cavitation erosion inside the pump through hydraulically optimised inlet.
* Variant straight shaft design featuring increased operation safety.
Reduced energy costs
* No pre-warming of pump required.
* More than 100 impeller/diffuser combinations with optimum efficiencies possible.
Application
* boosting in General Industries of chemical process
* Sewage Treatment Plant
* Marine & offshore
* Power Plant
* Sea Water Desalination
* Petrochemical processing
* Clear and lightly contaminated liquids
* Commercial water supply, High building water supply
* Mining water discharge
Parameters
| Flow Capacity | 15-28 m3/h | Delivery Head | 144-618 m |
| Inlet/Outlet Dia. | DN80/DN80 mm | Working Pressure | ≤ 9.27 MPa |
| Liquid Temperature | 0 - 80 ℃ | Driven By | Electric Motor / Diesel Engine |
| Seal Type | Mechanical seal / Gland packing | Liquid | Clean water or similar |
| Material of Construction | Cast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205 | ||
| Parts Name | Clean Water | Sewage | Hot Water | Corrosive Liquid | Oil Liquid |
| Pump Body | Cast Iron | Ductile Iron | Cast Steel/S.S304 | S.S304/S.S316/S.S2205 | S.S304/S.S316 |
| Shaft | Cast Iron | S.S420 | S.S420/42CrMo | S.S630 | S.S420/40Cr |
| Shaft Sleeve | Carbon Steel | S.S420 | S.S304 | S.S316/S.S630/S.S2205 | S.S304/S.S316 |
| Impeller | Cast Iron | Ductile Iron | Cast Steel/S.S304 | S.S304/S.S316/S.S2205 | S.S304/S.S316 |
| Wearing Ring | Cast Iron | Ductile Iron | Cast Steel/S.S304 | S.S304/S.S316/S.S2205 | S.S304/S.S316 |
| Bearing | China Make/NSK/SKF/Customized | ||||
| Seals | Mechanical Seals/Gland Packing Seals | ||||
