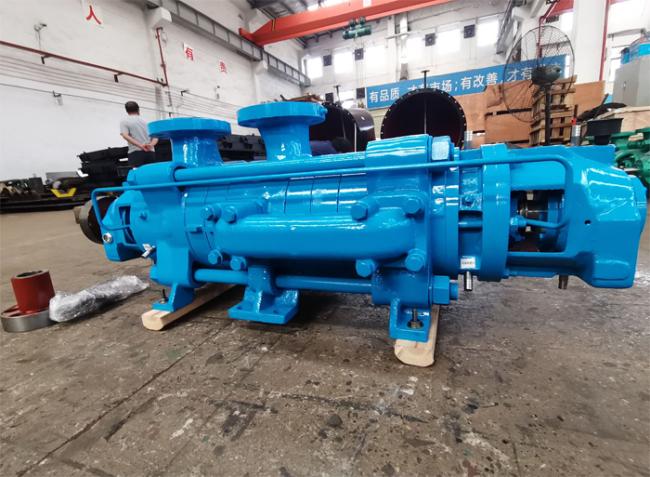

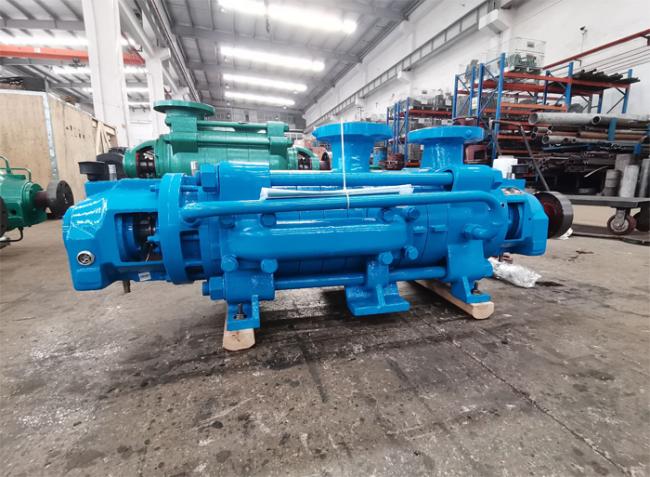

22kw-110kw Self Balancing High Pressure Boiler Feed Pump 28m3/H
* boosting in General Industries of chemical process
* boiler water feeding
* Food & beverage
* Sewage Treatment Plant
* Marine & offshore
* Power Plant
* Sea Water Desalination
* Petrochemical processing
* Clear and lightly contaminated liquids
* Commercial water supply, High building water supply
* Mining water discharge
* Supper long distance water transferring
* Handling feed water and condensate in power stations and industrial plants
Features
Suction and discharge casings
* provide flexibility for customer piping layout.
* radial and end suction configurations are available for the suction casing.
* discharge casing is dual volute type.
* radial suction casing and discharge casing can have nozzles positioned in 90O increments to allow customer flexibility in plant layout and equipment location.
Bearing housings
* housings on the radial suction pump are identical on both ends.
* made of high strength cast ductile iron and finned for additional cooling.
* cooling fan for additional thrust bearing cooling on the 5” and 6” sizes.
* bearing housings are configured to accept bearing temperature detectors and vibration instrumentation.

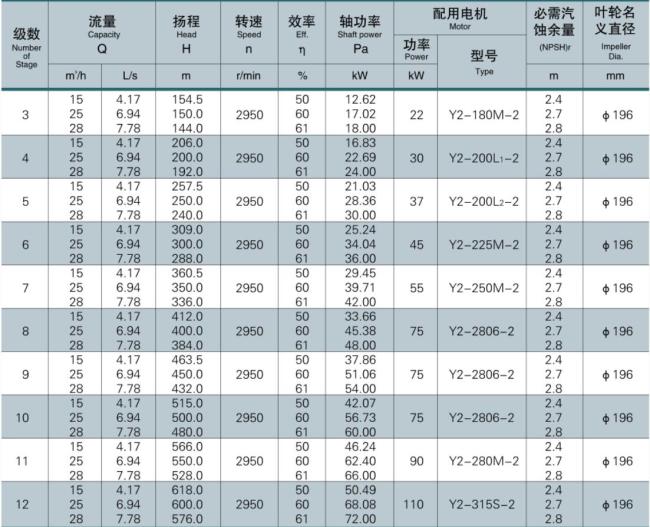

Parameters
| Flow Capacity | 15-28 m3/h | Delivery Head | 144-618 m |
| Inlet/Outlet Dia. | 80mm/80 mm | Working Pressure | ≤ 9.27 MPa |
| Liquid Temperature | 0 - 120 ℃ | Driven By | Electric Motor / Diesel Engine |
| Seal Type | Mechanical seal / Gland packing | Liquid | Clean water or similar |
| Material of Construction | Cast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205 | ||
* Installation & Commissioning of complete mechanical and electrical installations on turnkey basis.
* Repair & Maintenance - incidental service visits on location to breakdown repairs and maintenance on a 24-hour contract basis for products made by Sanchang or by any other manufacturer.
* Upgrades - with our engineering capabilities we can execute pump modifications to customer specifications of pump designs of most manufactures.
* Original spare parts - we provide stock control of spare parts for groups of pumps (total care maintenance). We are able to respond quickly and flexibly thanks to the availability of our own foundry.
* Inspection on site on an incidental or periodic basis.
* Training of our worldwide customers in the field of installation, operation and maintenance.
* Predictive maintenance helps to keep the lowest energy costs by means of professional vibration measurement and in time repair of possible defects.
