690V 6kV 10kV 1480rpm Underground Mine Water Pumps Seal housing

Features

Reduced wear
Elastically supported plain bearings made from tungsten carbide resist extreme vibrations and shocks. A balancing drum reduces axial thrust of bearings and loads on mechanical seal for more efficient operation.

Seal housing
Large, self-cleaning seal housing tranports particles outwards along the conical-shaped chamber to the relief piping, then back from sealing chamber to suction side to ensure seal longevity.

Sensor interfaces
Two standard pressure sensors, one at suction and one at discharge nozzle, measure inlet and outlet pressure, while optional sensors, one for horizontal, one for vertical, at the bearing frame can measure vibrations and bearing temperature. The sensors can be connected to any intellient plant monitoring and diagnostic system to monitor the pump's performance.

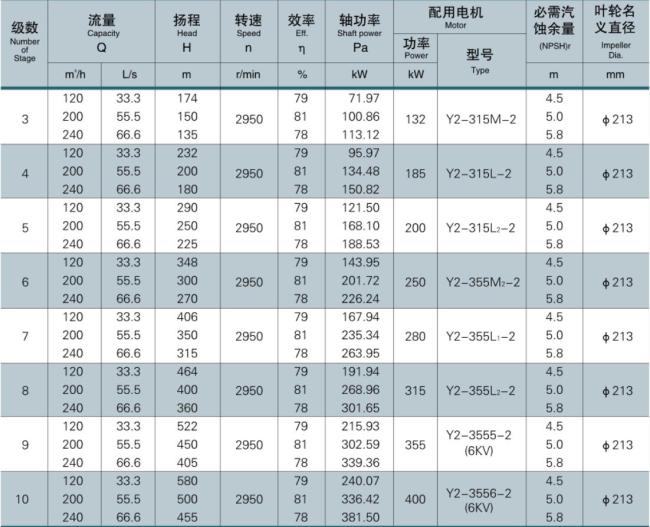

Parameters
