440V 460V Horizontal End Suction Chemical Circulation Pump 240m3/H For Corrosive Liquid

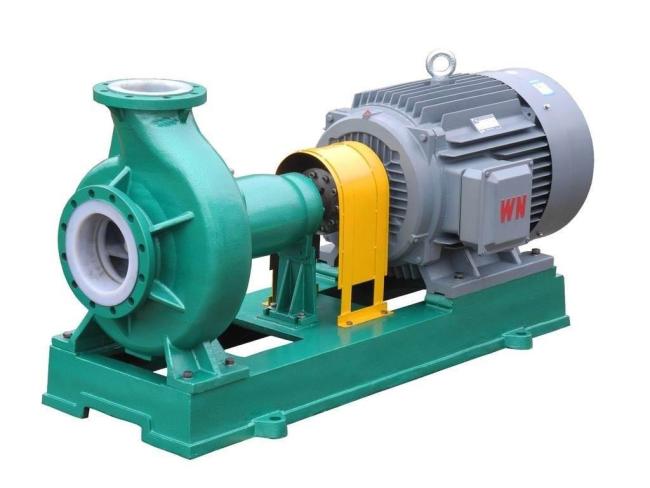

Horizontal End Suction Chemical Centrifugal Pump IHF150-125-315 for Acid or Similar Corrosive Liquid
The IHF series single stage end suction centrifugal pump is designed for acid or other corrosive liquid. It could be used to transfer clean water, fresh water, drink water, hot water and corrosive liquid. The pump is constructed with single impeller, horizontal installed, radial split volute casing with foot support and single entry impeller, end suction, vertical discharge.
| Parts Name | Clean Water | Drink Water | Hot Water | Corrosive Liquid | Acid Liquid |
| Pump Body | Cast Iron | S.S304 | Cast Steel/S.S304 | S.S304/S.S316 | Cast Iron + F46 |
| Shaft | Carbon Steel | S.S304 | S.S420/S.S304 | S.S304/S.S316 | S.S420/S.S630 |
| Shaft Sleeve | Carbon Steel | S.S304 | S.S420/S.S304 | S.S304/S.S316 | F46 |
| Impeller | Cast Iron | S.S304 | Cast Steel/S.S304 | S.S304/S.S316 | Cast Iron + F46 |
| Wearing Ring | Cast Iron | S.S304 | Cast Steel/S.S304 | S.S304/S.S316 | F46 |
| Bearing | China Make/NSK/SKF | ||||
| Seals | Mechanical Seals | ||||
Service activities
* Installation & Commissioning of complete mechanical and electrical installations on turnkey basis.
* Repair & Maintenance - incidental service visits on location to breakdown repairs and maintenance on a 24-hour contract basis for products made by Sanchang or by any other manufacturer.
* Upgrades - with our engineering capabilities we can execute pump modifications to customer specifications of pump designs of most manufactures.
