335m3/H Oil Centrifugal Pump Horizontal Centrifugal Sewage Pump DN250mm

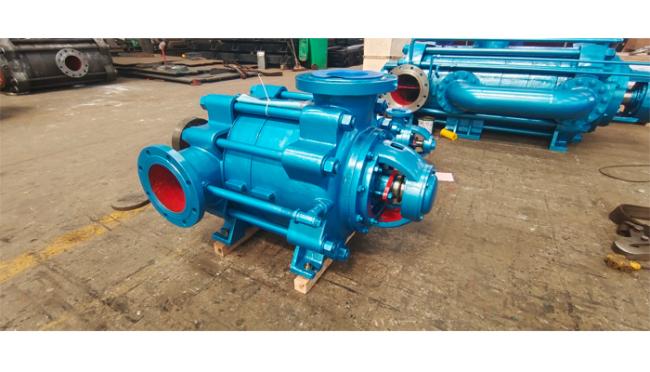

The D series Multistage Ring Section Centrifugal Process Pump is a configured, ring section, multistage pump specifically designed for high pressure feed service in long distance water tranferring applications.  A Centrifugal Process pump is one whose function is part of the process. The pump doing this type of job will be directly responsible for maintaining the continuous operation of the process.

Balancing system
The balancing system consists of the balancing bushing, installed in the discharge casing, and the balancing drum, assembled on the shaft. The system uses the force of the liquid being pumped to reduce load on mechanical seal and wear on the bearings. The complete system can be disassembled for maintenance without removing pump from its piping.

Seal housing
Large, self-cleaning seal housing tranports particles outwards along the conical-shaped chamber to the relief piping, then back from sealing chamber to suction side to ensure seal longevity.

Sensor interfaces
Two standard pressure sensors, one at suction and one at discharge nozzle, measure inlet and outlet pressure, while optional sensors, one for horizontal, one for vertical, at the bearing frame can measure vibrations and bearing temperature. The sensors can be connected to any intellient plant monitoring and diagnostic system to monitor the pump's performance.

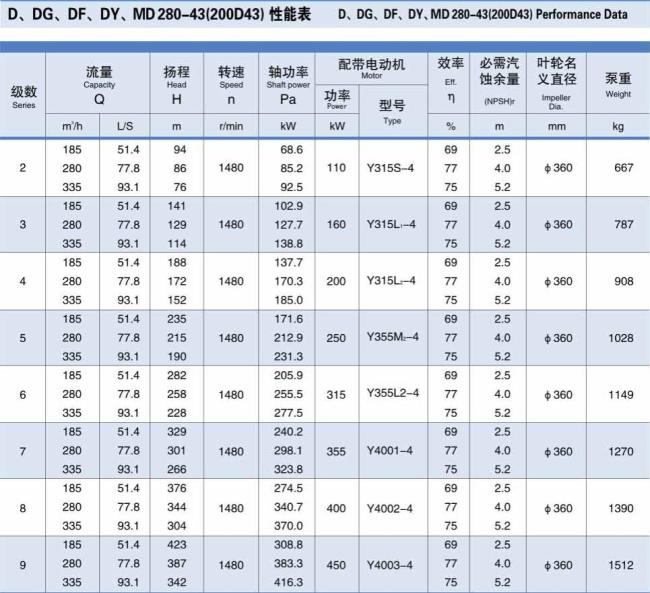

Parameters of Multistage Centrifugal Process Pump
