Bently Nevada 3500/64M 176449-05 3500/64M Dynamic Pressure Monitor

Product Details:

Additional Information:

Description:

The 3500/64M Dynamic Pressure Monitor is a single slot, fourchannel monitor that accepts input from high temperature pressure transducers and uses this input to drive alarms. The monitor’s one measured variable per channel is bandpass dynamic pressure.

You can use the 3500 Rack Configuration Software to configure the bandpass corner frequencies along with an additional notch filter. The monitor provides a recorder output for control system applications.

The primary purpose of the 3500/64M Dynamic Pressure Monitor is to provide the following:

Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms

Essential machine information for operations and maintenance personnel

Each channel, depending on configuration, conditions its input signal to generate various parameters called measured variables. You can configure alert and danger setpoints for each active measured variable.

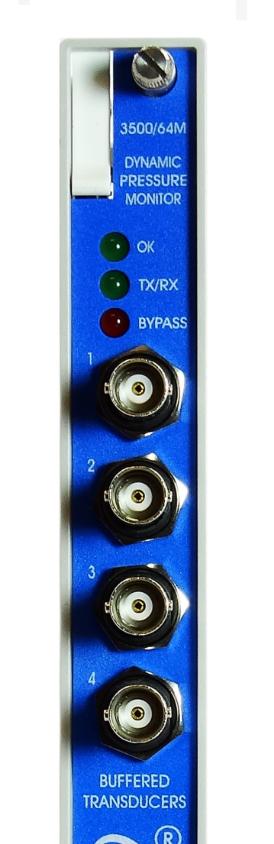

The front of each monitor has one coaxial connector for each channel. Each connector is short-circuit protected. The Cascade Mode does not cascade the buffered transducer outputs.

In Cascade Mode, you can select filter mode options for a channel pair only. One transducer provides input to four channels for different filtering requirements. As a result, you can configure four separate bandpass filter options and four separate full-scale ranges with one transducer input.
