Bently Nevada 3500/65-01-00 145988-02 16-Channel Temperature Monitor
Bently Nevada 3500/65-01-00 145988-02 16-Channel Temperature Monitor
Product Details:
| Brand Name | Bently Nevada |

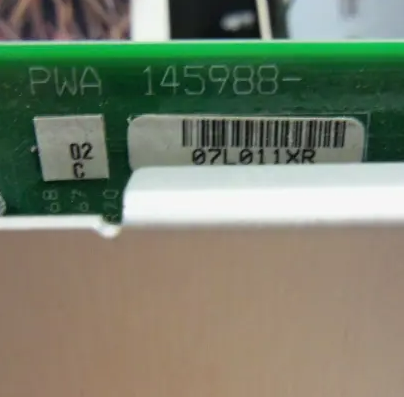

| Model | 3500/65-01-00 145988-02 |
| Condition | New |
| Gross Weight/Shipping Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 6.4" x 6.4" x 4.8" (14cm x 10 cm x 6 cm) |
| Country of Origin/Original Country | United States (USA) |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | Inquiry |
| Color | Depend on product |
| Warranty | 12 months |
| Lead time | In Stock |
| Courier partners | DHL, UPS, TNT, FedEx and EMS |
Description:
The 3500/65 monitor provides 16 channels of temperature monitoring and accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) temperature inputs. The monitor conditions these inputs and compares them against user-programmable alarm setpoints.
The monitor is programmed using the 3500 Rack Configuration Software. You can configure the 16-Channel Temperature Monitor to accept isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs.
In Triple Modular Redundant (TMR) configurations, you must install temperature monitors in groups of 3 adjacent monitors. In this configuration the monitor uses 2 types of voting to ensure accurate operation and to avoid singlepoint failures.
If you add the 3500/65 to an existing 3500 System your system will require the following or later firmware and software versions:
- 3500/22 Module Firmware Revision 1.50
- 3500/01 Software Version 3.85
- 3500/02 Software Not supported*
- 3500/03 Software Not supported*
- 3500/93 Module Firmware Revision 2.02
- System 1 Software Revision 5.2 with Service Pack 2 or later
Order information
| Model | 3500/65 |
16-Channel Temperature Monitor |
| I/O Module Type | 02 | RTD/Isolated Tip TC with Internal Terminations |
| Agency Approval Option | 00 | Not required |
Datesheet Link:
