NTK680 SB40 Hydraulic Breaker Piston
NTK680 SB40 Hydraulic Breaker Piston
Hydraulic Breaker NTK680/SB40 Piston Cylinder Piston

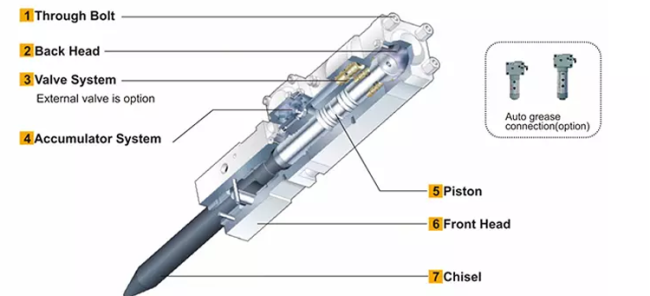

1. What factors affect a hydraulic hammer’s power?
The power of the hydraulic hammer is affected mainly by three factors: nitrogen pressure (back head pressure), hydraulic flow, and impact rate.
The amount of nitrogen is very specific; overcharging the nitrogen will make it stop hammering, while low nitrogen pressure results in weak hammering.
Hydraulic flow directly affects working pressure. Over-flow can damage the hammer very quickly, so be sure to work within the proper hydraulic range.
There is a frequency valve on the cylinder body responsible for the impact rate. Adjust it manually according to working conditions.
Basically, under certain working conditions, a slower impact rate leads to a more powerful impact, and higher frequency means a lighter blow.
2. How often does the seal kit need to be replaced?
It depends on working conditions, makes, and age. We recommend every three months.

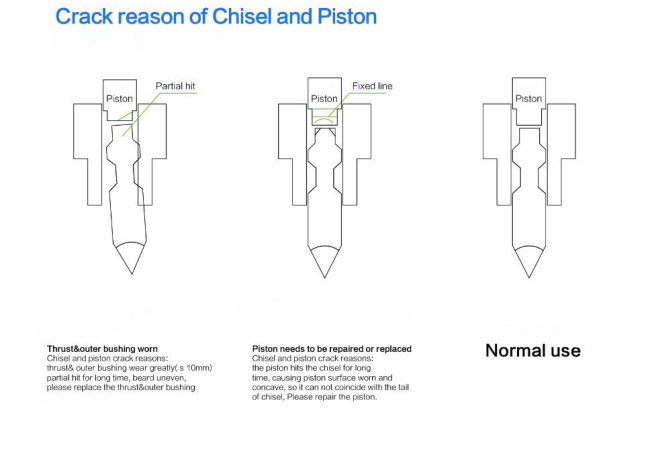

3. Can a broken piston be repaired?
No, a broken hydraulic hammer piston can never
We can supply the following models of hydraulic breaker piston
| Krupp | HM45,HM50/60,HM60/75,HM85,HM130/135,HM170/185,HM200,HM300/301,HM220V,HM230V,HM350V |
| HM400/401,HM550,HM560CS,HM580,HM600/601,HM700,HM2100,HM2200/2500CS/V,HM780,HM780V | |
| RAMMER | S21,S20/22,ROX100,S23,S25,S26/,ROX400,S29,S52/,ROX700, |
| S54/700,S55,S56/800,S82/1400 | |
| N.P.K | H1XA,H2XA,H3XA,H4X,H6XA,H7X,H8XA,H10XA |
| INDECO | MES350,HB5,HB8MES553,MES621,MES1200,HB12,HB19,MES1800,HB27,MES2500 |
| MONTABERT | BRH30,BRH40,BRH45,BRH60,BRH76/91,BRP100,BRP130,BRP125,BRH250/270,BRP1100/V1600,BRV1600 |
| BRH501/570,BRH620, BRH625/M900/V900,BRH750,BRV32M125SX,M300,M700,SC16/NeusonNE16 | |
| STANLEY | MB125,MB250/350,MB550,MB656,MB800,MB1550, |
| MB1950/1975,MB30EX,MB40EX | |
| FURUKAWA | HB05R,HB1G,HB2G,HB3G,HB5G,HB8G,HB10G,HB15G,HB20G |
| HB30G,HB40G,HB50G | |
| TOKU/TOYO | TNB1E,TNB2E,TNB4E,TNB6E,TNB7E,TNB14E,TNB22EA,THBB101, TNB-08M,TNB-1M,TNB-3M,TNB-3E |
| OKADA | OUB301,OUB302,OUB303,OUB305,OUB308,OUB310,OUB312,OUB316,OUB318, |
| SOOSAN | SB10,SB20,SB30,SB35,SB40,SB43,SB45,SB50,SB60,SB70,SB81,SB100,SB121,SB130,SB151,SH200 |
| SH400,SH700,SH-18G,SH-20G,SH-30G,SH-35G,SH-40G | |
| KWANGLIM | SG200,SG300,KSG350,SG400,SG600,SG800,SG1200,SG1800,SG2100,SG2500, |
| ATLAS COPCO | MB500,MB700/800,MB1000,MB1200,MB1500,MB1600,MB1700,HB2000,HB2200,HB2500,HB3000, |
| HB4200,TEX75/80/100H/HS,TEX110H/HS, TEX180H/HS,TEX200H,TEX250H1,TEX400H/HS,TEX600 | |
| DAEMO | DMB03,DMB04,DMB06,S150-V,S300-V,S500-V,S700-V,S900-V,S1300-V,S1800-V |
| BLT | BLT20, BLT30, BLT40,BLT50,BLT60,BLT80-1,BLT80-2,BLT81,BLT100,BLT160,BLT190 |
| MKB | MKB500,MKB800,MKB900,MKB1200,MKB1400,MKB1500,MKB1600,MKB1700,MKB2000,MKB2500 |
| MIRACLE | MB15M,MB20M,MB35M,MB50M,MB80M,MB100M,MB130M,MB160M,MB300M,MB180F,MB250F,MB250F |
| MSB | SAGA20,SAGA30,SAGA40,SAGA50,SAGA80,SAGA120,SAGA180,SAGA200,SAGA300,SAGA350,MS200 |
| MS250,MS300,MS400,MS450,MS500,MS550,MS600,MS700,MS750,MS800,MS900 | |
| HANWOO | RHB301,RHB302,RHB303,RHB304,RHB305,RHB306,RHB308,RHB309,RHB313, |
