ODM Crawler Excavator Hydraulic Breaker 21 Ton 135mm Anti Blank Fire
ODM Crawler Excavator Hydraulic Breaker 21 Ton 135mm Anti Blank Fire
Hydraulic Breaker/Hammer For 18-21 Ton Excavator As Chisel 135mm Road Rock Drill
Hydraulic Breaker NTK1350 Excavator Attachment Parts Demolition Hammer Chisel 135mm.
Feature
- Variety of tool configurations available
- Replaceable cylinder sleeves for easy, economical rebuild
- Anti-blank fire feature virtually eliminates dry firing for long hydraulic breaker life
- Vibration control that increases operator comfort to increase efficiency
Standard on all medium and large NTK hydraulic hammers, our shock-absorbing mounting bracket uses special heavy-duty rubber mounts to absorb shock, recoil, and impulse vibration. The unique one-piece design eliminates the need for mechanical springs and overly heavy mounting brackets. The net result is minimization of machine wear and improved operator comfort for greater reliability and productivity. - Simplified lubriion for greater reliability
- Full serviceability of the industry's easiest, lowest cost, body-rebuild system
Hydraulic breakers are not meant to have an easy life. They occasionally need to be rebuilt. When the hammer body is involved, NTK's replaceable sleeve design can reduce your costs by a factor of five to ten!

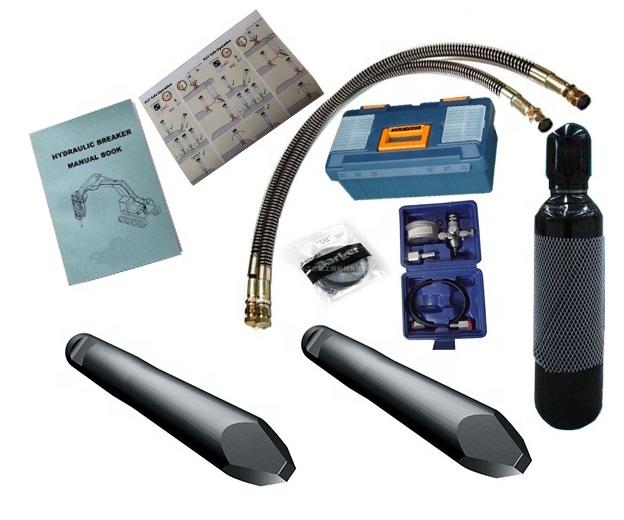

Two Standard Chisel, One Tool Box, Two Pieline, One 8L Nitrogen Gas Bottle.
The detail for NTK1350 as blow:
| TYPE | UNIT | NTK1350 | NTK1400 | NTK1550 | NTK1650 | NTK1750 | ||
| UNIT WEIGHT | KG | 1852 | 2081 | 2986 | 3248 | 4228 | ||
| LENGTH | mm | 2713 | 2824 | 3133 | 3577 | 3632 | ||
| Requierd Oil Flow | L/min | 120-180 | 120-180 | 180-240 | 200-260 | 210-290 | ||
| Working Pressure | kg/cm | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | ||
| Impact Rate | b.p.m | 350-500 | 350-500 | 300-450 | 280-370 | 150-300 | ||
| Hose Diameter | in. | 1 | 1 | 1¼ | 1¼ | 1¼ | ||
| Chisel Diameter | mm | φ135 | φ140 | φ155 | φ165 | φ175 | ||
| Chisel Length | mm | 1300 |
1300 |
1400 | 1500 | 1500 | ||
| Naise 85dB(A)-Distance | m | 16-22 | 16-22 | 26-35 | 37-42 | 38-45 | ||
| Applicable Excavator | m³TON | 0.7-0.8 | 0.7-0.9 | 1.1-1.4 | 1.3-1.5 | 1.4-2.0 | ||
| 18-21 | 18-26 | 28-35 | 38-45 | 40-55 | ||||
NTK1350 Hydraulic Breaker/Hammer Apply to:
E200B 320B 320C 320D 322C 323, PC200-6 PC200-7 PC200-8 PC210 PC220 PW210, DH220 DH225 DX225 DX215, Robex R200 R210 R220 R215, EX200 ZX200 ZX210 ZX220 ZX240 ZX270, SK200 SK210 SK220 SK230, EC210B EC210C EC210D EC210E EC240, HD700 HD800 HD820
FAQ
What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't provide warranty time for original and used products.
What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, the delivery time will be communied in advance, usually 3-7 days
How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
How do I pay?
You can pay by T/T, PayPal(for small amount)
