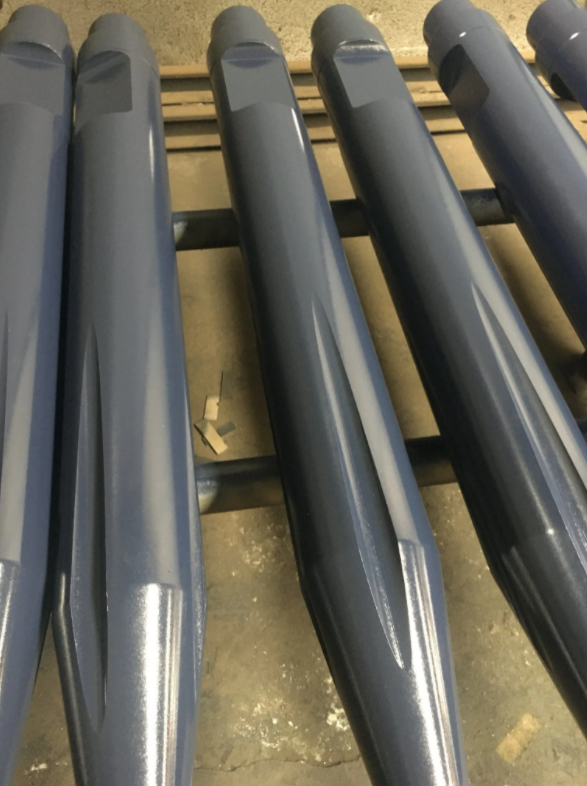

Conical Hydraulic Rock Breaker Chisel Sb35 Sb50 Sb70 Sb81 Excavator Hammer Chisel
Conicol Chisel for Hydraulic Rock Breaker Sb10 Sb40 Sb50 Sb35 Sb50 Sb70 Sb81 Sb121 Excavator Hammer Chisel for Sale
Product Description
1. Material: 40Cr or 42CrMo
2. Dimension: Depending on the specification of Tool Maker
3. Chisel type: Moil Point, Blunt Tool, Flat, wedge
4. Heat Treatment:
Austenting Temperature 810~850 (20min/inch) Cooling Water oil cooling Tempering 250~300 (1hr/inch)
5. Mechanical Properties:
Surface Hardness HRC51± 3
Core Hardness HRC35± 3 Tensile strength(min) 1250N/mm² Yield point (min) 950N/mm²
Elongation 10~14% Reduction of Area 35~40% Impact work 23~28 ft1b Grain size 7.0~8.0
We have hydraulic breaker chisel for following items
|
Krupp
|
HM45,HM50/60,HM60/75,HM85,HM130/135,HM170/185,HM200,HM300/301, |
| HM400/401,HM550,HM560CS,HM580,HM600/601,HM700 | |
RAMMER |
S21,S20/22,ROX100,S23,S25,S26/,ROX400,S29,S52/,ROX700, |
| S54/700,S55,S56/800,S82/1400 | |
| N.P.K | H1XA,H2XA,H3XA,H4X,H6XA,H7X,H8XA,H10XA |
| INDECO | MES350,HB5,MES553,MES621,MES1200,HB12,HB19,MES1800,HB27,MES2500 |
MONTABERT |
BRH30,BRH40,BRH45,BRH60,BRH76/91,BRP100,BRP130,BRP125,BRH250, |
| RH501,BRH620, BRH625,BRH750,BRV32 | |
STANLEY |
MB125,MB250/350,MB550,MB656,MB800,MB1550, |
| MB1950/1975,MB30EX,MB40EX | |
FURUKAWA |
HB5G,HB8G,HB10G,HB15G,HB20G,HB30G,HB40G,HB50G, F12,F19,F22,F22 |
| F27,F35,F45,F70 | |
| TOKU/TOYO | TNB1E,TNB2E,TNB4E,TNB6E,TNB7E,TNB14E,TNB22EA,THBB101, |
| OKADA | OUB301,OUB302,OUB303,OUB305,OUB308,OUB310,OUB312,OUB316,OUB318, |
| SOOSAN | SB10,SB20,SB30,SB35,SB40,SB43,SB45,SB50,SB60,SB70,SB81, |
| SB100,SB121,SB130,SB151 | |
| KWANGLIM | SG200,SG300,KSG350,SG400,SG600,SG800,SG1200,SG1800,SG2100,SG2500, |
| DAEMO | DMB03,DMB04,DMB104/DMB210,S150-V,S300-V,S500-V,S700-V,S900-V,S1300-V, |
| HANWOO | RHB301,RHB302,RHB303,RHB304,RHB305,RHB306,RHB308,RHB309,RHB313, |
| MSB | SAGA120,SAGA180, SAGA200,SAGA300,SAGA350 |
| MS200,MS250, MS300,MS550,MS600, MS700,MS750 |
FAQ
Q: Are you a manufacturer?
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, Iran, South Africa, etc.
