Live Streaming 360 Degree Conference Camera 1/3 Inch HD CMOS 20X camera
Professional HD 360 PTZ Digital Zoom 20X USB HDMI Live Streaming Video Conferencing Camera
* 20X optical zoom
* Sleek and intelligent design
* Crystal clear HD1080P image quality
* Preset: 9 via IR remote setting (255 via PELCO-P/D/64 via VISCA)
* Wide field of view with no video distortion(Pan:350°,Tilt: -35°~+55°)
* 1/3 inch high quality, 2.1MP (16:9)CMOS sensor
* Superior quality with Full Glass Lens Material

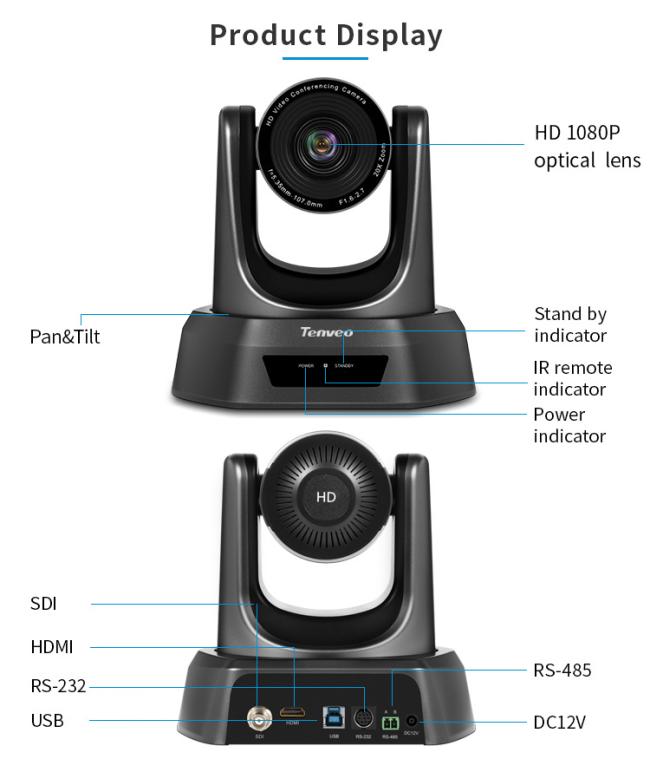

* 3G-SDI, HDMI , USB Video Output

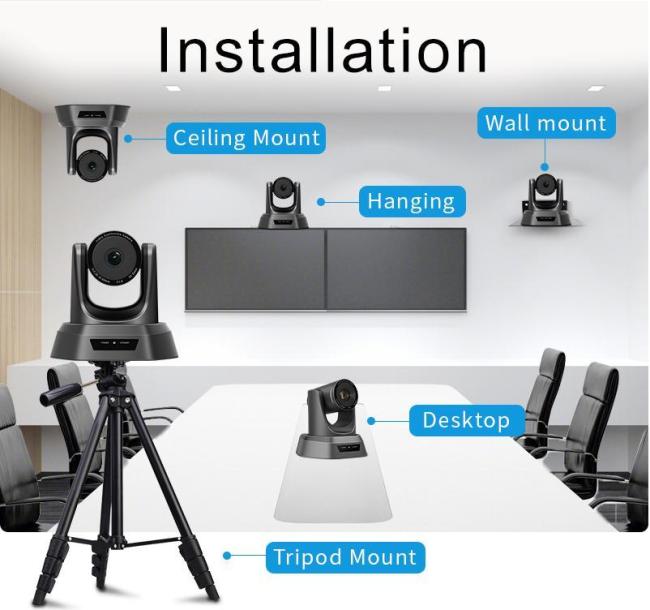

* Support ceiling mount, wall mount and tripod mount (Reverse mountable)
* 2D and 3D NR for best video quality in different lighting conditions
* Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
* Compatible with most leading video conferencing software and platform
* Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth
| Model No | TEVO-NV20A |
| Image Sensor | 1/3 inch HD CMOS |
| Effective Pixel | 2.38 mega pixel |
| Horizontal Resolution | 1080P60/50/30/25,1080i60/50,720P60/50 |
| Focal Length | 138 degree fixed focus wide angle |
| Signal Standard | NTSC/PAL |
| Zoom | Auto focus |
| Horizontal View Angle | Near-end 54.7°~Far-end 3.3° |
| Gain Control | Auto/Manual |
| SNR Ratio | 8 to 1/10000s (auto) |
| Preset Position |
IR remote control supports 9 presets, PELCO Protocol supports 255 presets; VISCA Protocol supports 64 presets |
| Pan/Tilt Movement Range |
Pan: +-175°(max speed 80°/S), Tilt: -35°~+55°(max speed 60°/S) |
| Control Protocol | VISCA,PELCO-D,PELCO-P (RS-232,RS485) |
| Control Teminal | USB, RS-232, RS-485 |
| Video Output | USB 2.0, SDI, HDMI |
| Noise Reduction | 2D/3D |
| Work Temperature | -10°~50° |
| Work Humidity | -20°~60° |
| Baud Rate | 38400/9600bps |
| Address Set | 1~255 |
| Decoder | Built-in decoder |
| Installation | Support desktop, Tripod, Wall mount and ceiling mount |
| Video Compression Format | YUV, MJPEG,H.264 |
| Accessories | DC 12V power adaptor, IR remote control,manual, ceiling brackets and screws. |
| Size: | 182*182*182mm/262*233*220(before/ after packing) |
