SDI USB HDMI PTZ Video Conference Camera 20X HD 1080P TEVO NV20A
2.38 mega pixel
20X optical zoom
Pan: 350° Tilt : 90°
VISCA, PELCO-D/P, RS232, RS485
PRESET+Number: To set preset position of this number.
RESET+Number: To clear preset position of this number.
Tip2: SDI support 328ft(100m)
3G-SDI video transfer, HDMI support 98ft(30m) HD video transfer and USB support 66ft(20m) HD video transfer.
Tip 3: Image Flip and Image Mirror.
Press MENU - IMAGE - Mirror, and adjust Left/Right/UP/DOWN to manipulate image flip and Mirror.
-
20x optical zoom
-
Sleek and intelligent design
-

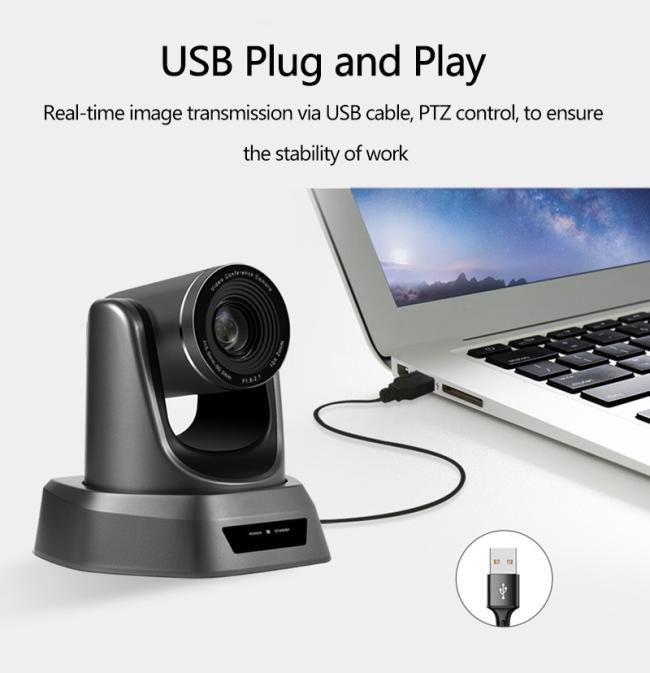

Plug & Play USB Connectivity
-
Accurate, smooth and silent PTZ Movement
-
Preset: 9 via IR remote setting (255 via RS232)
-
Wide field of view with no video distortion
-
1/3 inch high quality, 2.1MP (16:9) CMOS sensor
-
Superior quality with Full Glass Lens Material
-
Support HD1080P60/50/30/25,720P60/50,etc.
-

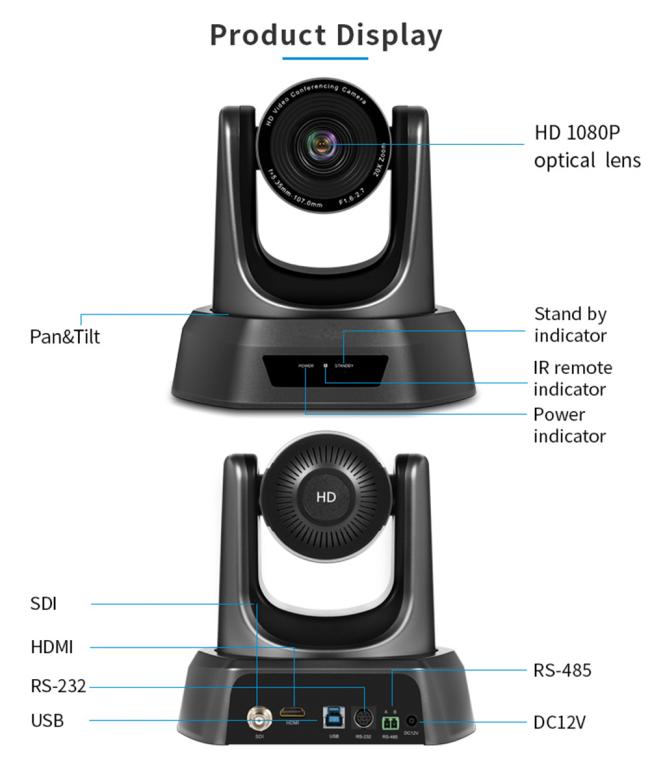

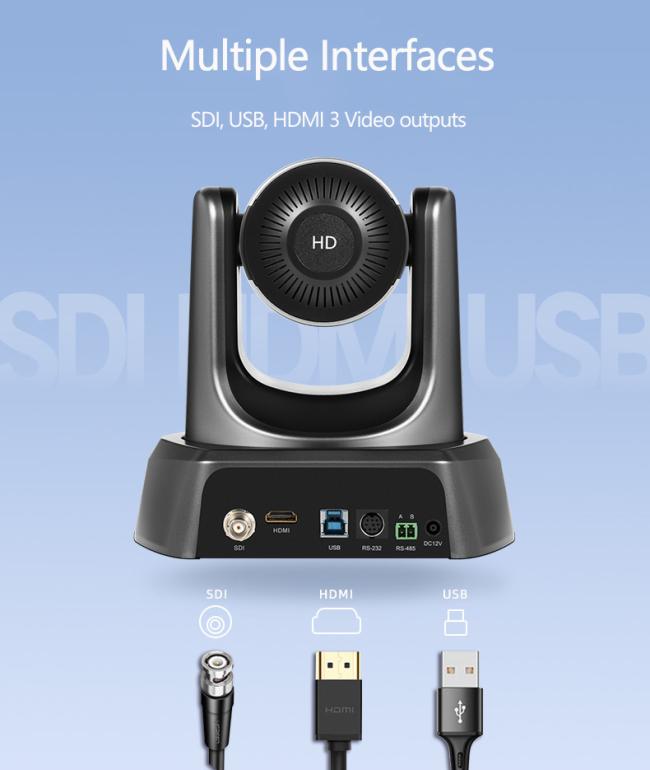

Support USB, HDMI and SDI 3 video output at the same time
-
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
-
2D and 3D NR for best video quality in different lighting conditions
-
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
-
Compatible with most leading video conferencing software and platform
Technical Parameters of This NV20A USB HDMI Conference Camera|
Model No. |
TEVO-NV20A |
|
Image Sensor |
1/3" CMOS |
|
Effective pixel |
2.38 mega pixel(16:9) |
|
Horizontal Resolution |
1080P60/50/30/25, 1080i60/50, 720P60/50 |
|
Focal length |
F=5.5mm(wide)-110(tele) |
|
Signal standard |
NTSC/PAL |
|
Zoom |
20x zoom |
|
Horizontal view angle |
Near-end 54.7°~Far-end 3.3° |
|
Gain control |
Auto/manual |
|
Focus |
Auto/manual |
|
SN ratio |
≥50dB |
|
Shutter speed |
1/30 sec to 1/10,000s, auto |
|
Preset position |
Remote-controller support 9 presets PELCO Control Protocol supports 255 presets |
|
Pan/Tilt movement range |
Pan: ±175°(max speed 80°/S), Tilt: -35°~+55°(max speed 60°/S) |
|
Control terminal |
RS-232, RS485 |
|
Control Protocol |
VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
|
Video output |
USB, SDI, HDMI |
|
Noise Reduction |
2D/3D |
|
Work Temperature |
-10°~50° |
|
Work Humidity |
-20°~60° |
|
Baud rate |
34800/9600bps |
|
Decoder |
Built-in |
|
Address Set |
1~64 |
|
Installation |
Support desktop, Tripod, Wall mount and Ceiling mount |
|
Power supply |
DC12V/2A |
|
Power |
12W |
|
Weight |
1.5kg/2.85kg(before / after packing) |
|
Size |

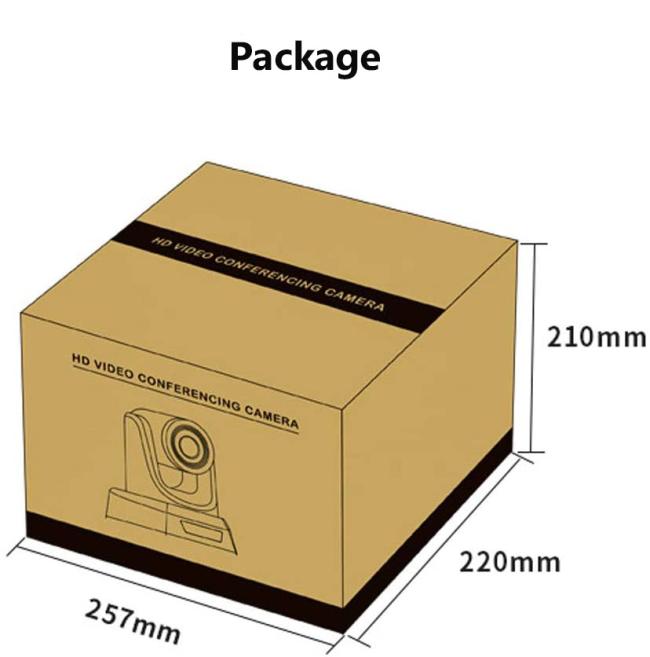

162*172*175mm /257*220*210mm (before / after packing) |
|
Accessories |
DC 12V Power adaptor, IR remote control, Ceiling brackets & screws, Manual |

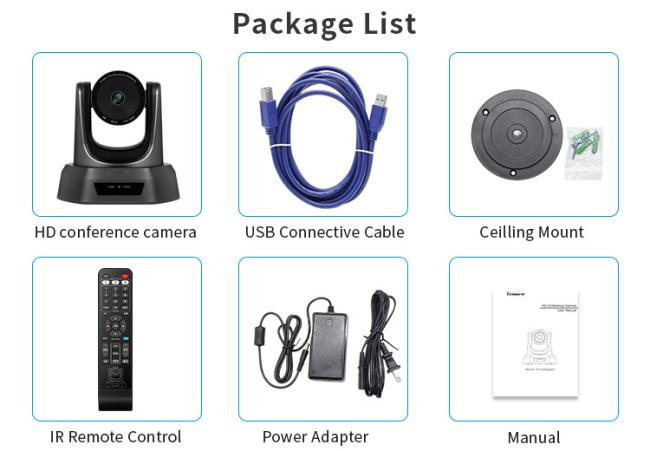

What is In The Box?
Tongveo Store Introduction
Due to our extensive partner network, TONGVEO can play a decisive role in international or global video conferencing projects. We focued on developing and implicating the technology of video conferencing products,SD,HD PTZ video conference camera and omnidirectional conference microphone speakers.
We designing, tooling, produce and sale directly in order to ensure the most possible competitive price and excellent quality under Control.
Our Product: Video conference camera,Video conference omnidirectional microphone, video Conference software product
Video conference system, audio conference system, Network Conference system, Education system, Tele-medicine system, Courtrooms, Public safety system, Financial facility, Airports, Prisons, Highways, Port, Forest Fire Prevention, Schools and Customs systems.
All of our products are compliant with CE, FCC, CO, COG, And Rosh standards.
