Intelligent Conferencing USB PTZ Camera 1080P Resolution 10x Zoom

Price Negotiable
Price: Negotiable
MOQ: 1 set
Delivery Time: 1-10 working days
Brand: Tongveo
Product Description

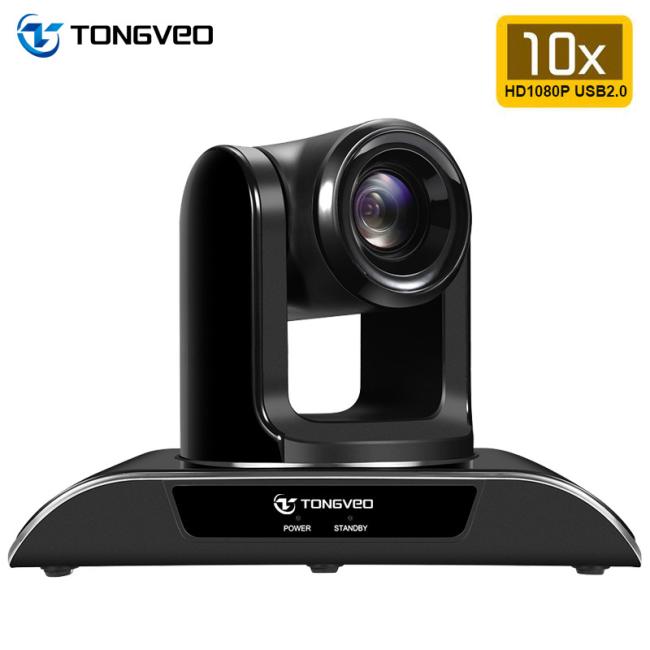

introduction for conference PTZ camera:

* 10x optical zoom,Sleek and intelligent design, Plug & Play USB2.0 Connectivity
* Crystal clear HD1080P image quality,Wide field of view with no video distortion
* Preset: 9 via IR remote setting (256 via RS232)
* 1/2.9 inch high quality, 2.1MP (16:9) CMOS sensor
* Superior quality with Full Glass Lens Material
* Support ceiling mount, wall mount and tripod mount (Reverse mountable)
* 2D and 3D NR for best video quality in different lighting conditions
* Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
* Compatible with most leading video conferencing software and platform
* Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth

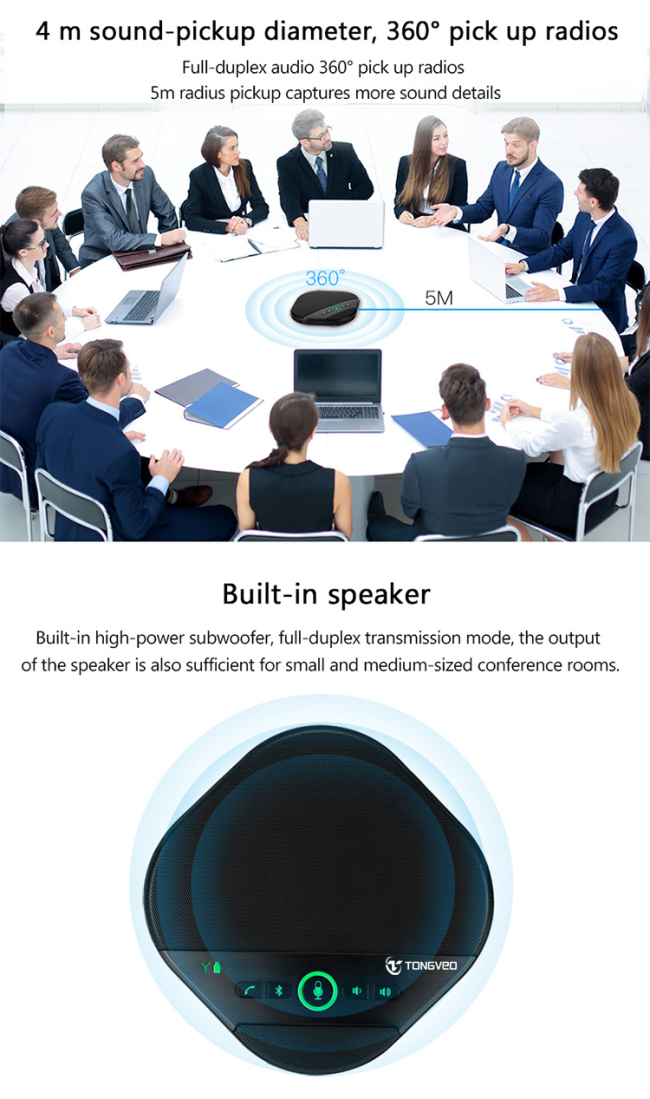

Introduction for Bluetooth Conference speakerphone:

* Intuitive plug and play connectivity that connect in Seconds to laptop and tablet via USB,Bluetooth to mobile phone and PAD
* Built-in high-fidelity all-pointing provide 360 degree audio pickup over 5 m
* Echo cancellation and noise reduction
* Compatible with all leading UC platform
* Perfect for PC,smart phone or tablet

Parameters:

Items
VHD102U
Image Sensor
1/2.9 inch SONY HD CMOS
Effective pixel
2.1 mega pixel (16:9)
Horizontal Resolution
1080p 30/25 720p 30/25
Signal standard
NTSC/P AL
Zoom
10x optical zoom
Focal length
F=5.0mm(wide)-50.0(tele)
Horizontal Angle
Near-end 47°~Far-end 5.3°
Gain control
Auto/manual
Focus
Auto/manual
SNR ratio
≥50dB
Wide dynamic
D-WDR
Shutter speed
8to1/ 10000s(auto)
Preset position
IR remote control supports 9 presets
PELCO Protocol supports 256 presets
Pan/Tilt movement range
Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S)
Control terminal
RS-232, RS485
Control Protocol
VISCA, PELCO-D, PELCO-P (RS-232, RS485)
Video output
USB2.0
Video Compression Format
YUV, MJPEG, H.264



Model No.
A3000B
Meeting room
20-60m2
Participants
10-20
Pickup range
5m
Response frequenc
100Hz-22KHz
Built-in microphone
4
Bluetooth
YES
Wireless receiver
NO
Max output
95dB
Horn response frequency
100HZ-22KHZ
Full duplex
YES
Noise suppression
YES
Automatic gain control
YES
Product size
180*180*42mm/355*265*120mm(before/after packaging)
Product weight
600g/1200g(Net/gross weight)
Accessories
USB cable(5m),5V power adapter,manual, 3.5mm audio cable
Interface
USB interface, RJ45 EX1,EX2,I/O line in/out, DtP6 interface
Operating system
Windows,Mac OSX, Android, Linux
