12.5 Ton Wrecker Winch
Marine winch Hydraulic traction winch free fall 12.5 ton for ship pulling heavy object

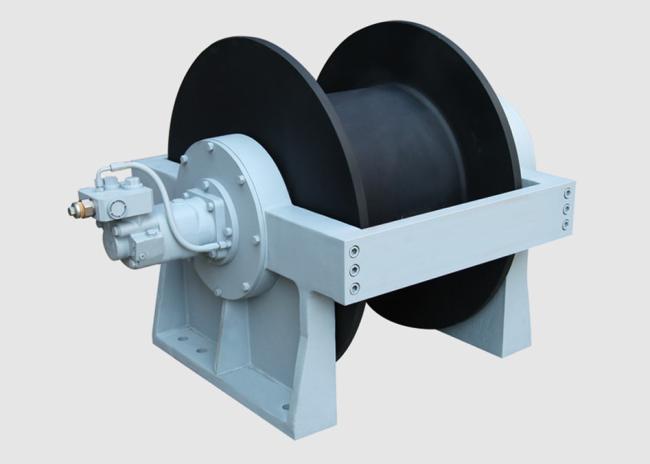

YJA125 hydraulic winch is installed in a variety of ships. The oil pump, driven by the engine, pumps the high-pressure oil into the hydraulic motor through the directional value and balancing value. The hydraulic motor drives the reel through the planetary gear reducer in two stages to reduce speed. The reel winds the steel wire rope to pull heavy object.

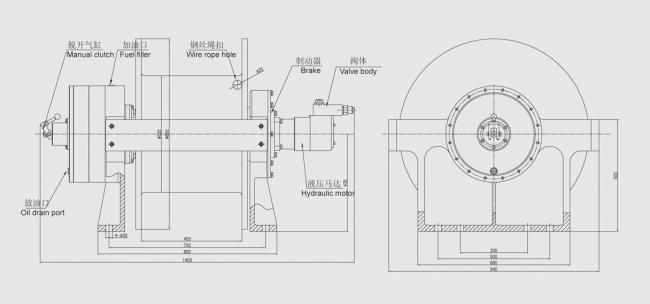

YJA125 hydraulic winch is composed of planetary gear reducer, brake, reel, hydraulic motor and other components. Equppied with floating planetary gear reducer, the winch runs smoothly and the structure is strong. The multi-plate friction brake has large brake torque, is safe and reliable. Therefore, the winch is featured with small size, compact structure and high trans-mission efficiency.
Contact us for more details!
| Rated line pull (1st layer) | KN/Kgs / lbs | 125/12500/27260 |
| Line speed (1st layer) | m/min | >15 |
| Transmission ratio | i | 53.272 |
| Oil pressure | MPa / Bar | 18/ 180 |
| Oil flow | L/min | 160 |
| Drum diameter x Bottom diameter x Length(internal) | mm | 850*520*450 |
| Drum capacity | m | 100 |
| Suggested high-intensity wire rope diameter | mm | Φ32 |
| Wire rope layers | 4 |
Features
- Full-float typed planetary gear reducer makes the operation more stable, the structure more reasonable.
- Adopt multidisc-typed friction normally-closed brake makes the brake torque larger, safer and more reliable.
- The product is featured by its small size, compact construction and high transmission efficiency.
- Free spooling function.
- Adopt high efficiently hydraulic motor with long use life.
- The installation bracket can be manufactured according to the customer's requirement.
- According to the requirement of customers, manufacture the balance valve and shuffle valve special for this winch.
- Adopt manual, or pneumatic clutch.
We can customize various spec as your request.

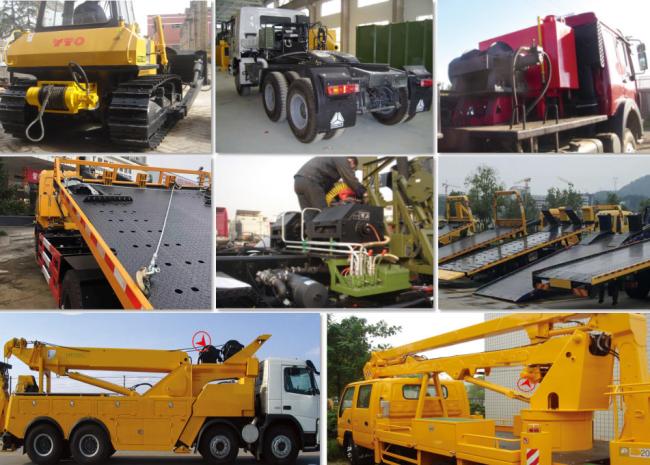

Ideal for ues in a variety of engineering requipment and ship board equipment, such as tow truck, trailer, tractor, Bulldozer, Crawler truck, and more.
Q: Are you trading company or manufacturer ?
A: We are factory, established in 1998.
Q: What is your terms of payment?
A: T/T 30% in advance, 70% see the B/L copy.
100% Irrevocable LC
Q: What is your terms of delivery?
A: FOB, CFR ,CIF, DDU or as your requirement
Q:Do you supply customized service?
A: Sure! We are manufacturer, and we have our own engineer group. They can work out customized design according to your special requirement.
Q: How about your delivery time?
A: Generally it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on your purchase quantity.
Q: How about package?
A: Wooden box conforming to export standards.
Q:What information should I provide to you before you could recommend a suitable winch and quote for me?
A: 1. Intended application of the winch (including working condition)
2. Line pull (KN / kgs / lbs)
3. Line speed (m/min)
4. Drum capacity/rope length (m)
5. Rope diameter(if have)
6. Oil pressure and oil flow (if have)
7. Other special requirements
