100AH Lifepo4 Lithium Ion Battery
MUST’s lithium batteries are drop-in replacements to lead acid batteries and are available with some of the most innovative features in the industry including advanced battery management systems (BMS) and active intelligent monitoring.
COMPLIANCE
| Certifications | CE (battery) UN38.3 (battery) UL1642 & IEC62133 (cells) |
| Shipping Classification | UN 3480, CLASS 9 |
MECHANICAL PERFORMANCE
| Dimension (L x W x H) | 320 x 172 x 215 mm 13.0 x 6.7 x 8.5″ |
| Approx. Weight | 27.8 lbs (12 kg) |
| Terminal Type | DIN POST |
| Terminal Torque | 80 ~ 100 in-lbs (9 ~ 11 N-m) |
| Case Material | ABS+PC |
| Enclosure Protection | IP65 |
TEMPERATURE PERFORMANCE
| Discharge Temperature | -4 ~ 131 ºF (-20 ~ 55 ºC) |
| Charge Temperature | -4 ~ 113 ºF (0 ~ 45 ºC) |
| Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| BMS High Temperature Cut-Off | 149 ºF (65 ºC) |
| Reconnect Temperature | 131 ºF (55 ºC) |
Why Choose MUST?
① Our products are all designed and manufacturing by ourselves & has already sold around 108 countries.
② The company's turnover in 2021 reached US$150 million.
③ More than 50 Strong R&D and after sales engineers with well- experienced and professional.
④Highly strict system for choosing suppliers with some key components IC, Resistances imported from Japan, Germany etc.

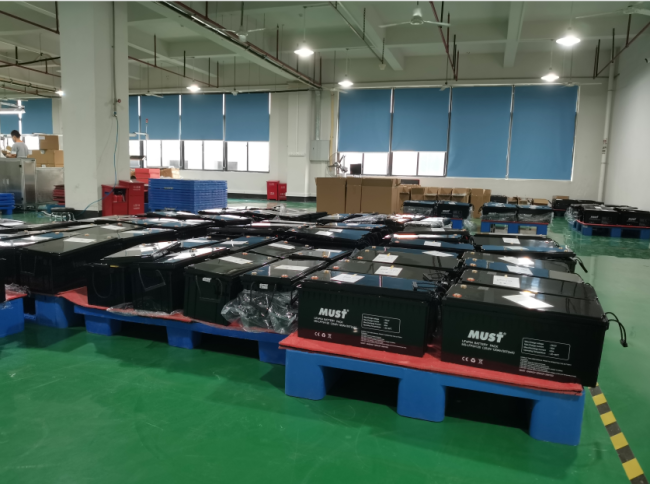

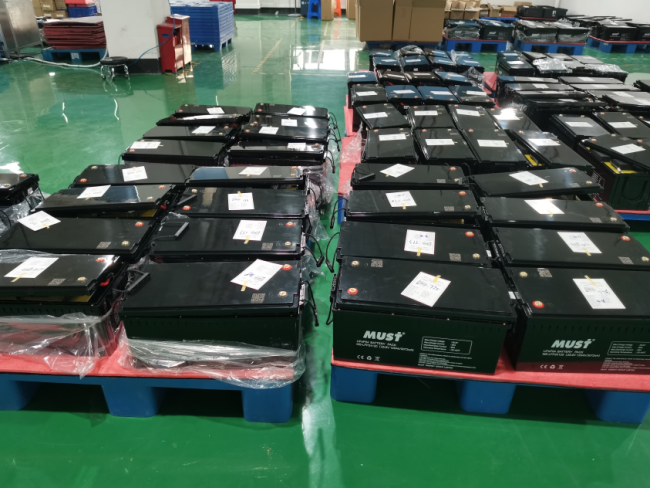

⑤The monthly production capacity reaches 30,000 units.
Operation Notice
♦ Do not heat the battery directly or thrown into a fire.
♦ Do not assemble or store in high temperature (over 55 °C) environment
♦ Do not short-circuit the battery directly.
♦ Do not use acid corrosion of the battery casing.
♦ Do not throw it into water or put in wet environment.
♦ Do not knock, impact the battery.
