Grade A Portable Lithium Battery Pack 12V 100Ah For Solar UPS System
MUST Brand 12V Lithium Ion Battery 12.8V 100Ah For Solar /UPS Grade A Battery Cell

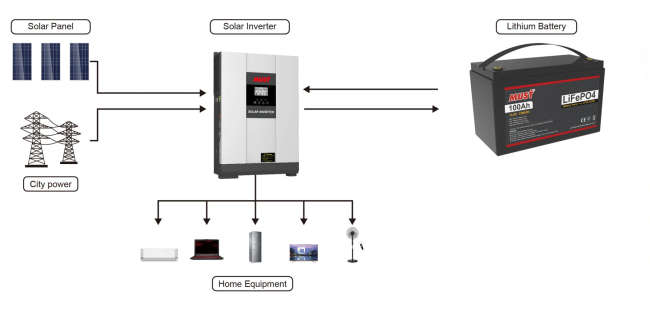

Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.
Suitable applications include:
•Caravan
•Marine
•Golf Car
•Buggies
•Solar Storage
•Remote Monitoring
•Switching applications and more
LECTRICAL PERFORMANCE
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 100 Ah |
| Capacity @ 20A | 300 min |
| Energy | 1280 Wh |
| Resistance | ≤30 mΩ @ 50% SOC |
| Self Discharge | <3% / Month |
CHARGE PERFORMANCE
| Recommended Charge Current | 20A |
| Maximum Charge Current | 100A |
| Recommended Charge Voltage | 14.6V |
| BMS Charge Cut-Off Voltage | <15.6 V (3.9V/Cell) |
| Reconnect Voltage | >14.4 V (3.6V/Cell) |
| Balancing Voltage | <14.4 V (3.6V/Cell) |
| Maximum Batteries in Series | 4 (*Consult MUST) |
DISCHARGE PERFORMANCE
| Maximum Continuous Discharge Current | 100 A |
| Peak Discharge Current | 200 A (3s) |
| BMS Discharge Cut-Off Current | 300 A ±10 A (30ms) |
| Recommended Low Voltage Disconnect | 11 V (2.75V/Cell) |
| BMS Discharge Cut-Off Voltage | >8.0 V (2s) (2.0V/Cell) |
| Reconnect Voltage | >10.0 V (2.5V/Cell) |
| Short Circuit Protection | 250 ~ 500 μs |
COMPLIANCE
| Certifications | CE (battery) UN38.3 (battery)UL1642 & IEC62133 (cells) |
| Shipping Classification | UN 3480, CLASS 9 |
MECHANICAL PERFORMANCE
| Dimension (L x W x H) | 320 x 172 x 215 mm13.0 x 6.7 x 8.5″ |
| Approx. Weight | 27.8 lbs (12 kg) |
| Terminal Type | DIN POST |
| Terminal Torque | 80 ~ 100 in-lbs (9 ~ 11 N-m) |
| Case Material | ABS+PC |
| Enclosure Protection | IP65 |
TEMPERATURE PERFORMANCE
| Discharge Temperature | -4 ~ 131 ºF (-20 ~ 55 ºC) |
| Charge Temperature | -4 ~ 113 ºF (0 ~ 45 ºC) |
| Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| BMS High Temperature Cut-Off | 149 ºF (65 ºC) |
| Reconnect Temperature | 131 ºF (55 ºC) |
HEATING FOIL PERFORMANCE
| Heating Temperature Range | -4 to 41 ºF (-20 to 5 ºC) |
| Heating Time | Approximately 1 hour @ 7.5 A |
| BMS Heating Foil Cut-Off | 158 ºF (70 ºC) |
Q1: What is the MOQ for this model?
A1:1 pc for you to test the quality , We can also ship the goods in a week to customer when we have stock.
Q2: How would the goods be shipped?
A2: We ship goods by DHL, UPS, FedEx, TNT and by Sea normally.
Q3: How about the delivery time?
A3: 7 days for sample; 40-45 days for bulk order.
Q4: What is the warranty of this model?
A4: Three years warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q6: What is the payment?
A6:T/T, Western Union, Ali Pay, LC are warmly welcomed.
