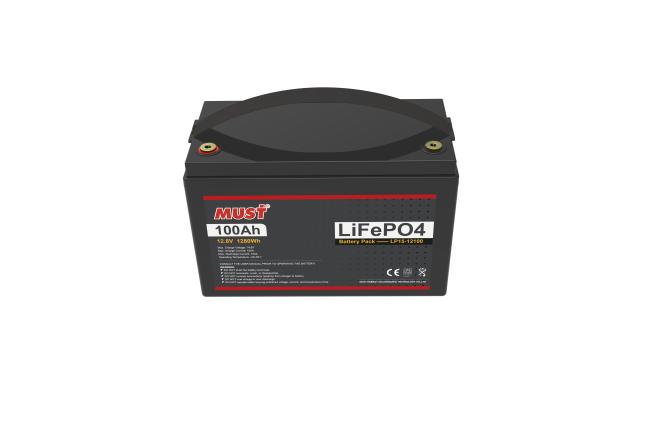

LiFePO4 12 Volt Lithium Battery Pack , Lithium Ion Caravan Battery 100AH
12V Lithium Ion Battery 12.8V 100AH LiFePO4 Lithium Battery Pack 1280 WH IP65
Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.
Suitable applications include:
•Caravan
•Marine
•Golf Car
•Buggies
•Solar Storage
•Remote Monitoring
•Switching applications and more
LECTRICAL PERFORMANCE
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 100 Ah |
| Capacity @ 20A | 300 min |
| Energy | 1280 Wh |
| Resistance | ≤30 mΩ @ 50% SOC |
| Self Discharge | <3% / Month |
CHARGE PERFORMANCE
| Recommended Charge Current | 20A |
| Maximum Charge Current | 100A |
| Recommended Charge Voltage | 14.6V |
| BMS Charge Cut-Off Voltage | <15.6 V (3.9V/Cell) |
| Reconnect Voltage | >14.4 V (3.6V/Cell) |
| Balancing Voltage | <14.4 V (3.6V/Cell) |
| Maximum Batteries in Series | 4 (*Consult MUST) |
DISCHARGE PERFORMANCE
| Maximum Continuous Discharge Current | 100 A |
| Peak Discharge Current | 200 A (3s) |
| BMS Discharge Cut-Off Current | 300 A ±10 A (30ms) |
| Recommended Low Voltage Disconnect | 11 V (2.75V/Cell) |
| BMS Discharge Cut-Off Voltage | >8.0 V (2s) (2.0V/Cell) |
| Reconnect Voltage | >10.0 V (2.5V/Cell) |
| Short Circuit Protection | 250 ~ 500 μs |
COMPLIANCE
| Certifications | CE (battery) UN38.3 (battery)UL1642 & IEC62133 (cells) |
| Shipping Classification | UN 3480, CLASS 9 |
MECHANICAL PERFORMANCE
| Dimension (L x W x H) | 320 x 172 x 215 mm13.0 x 6.7 x 8.5″ |
| Approx. Weight | 27.8 lbs (12 kg) |
| Terminal Type | DIN POST |
| Terminal Torque | 80 ~ 100 in-lbs (9 ~ 11 N-m) |
| Case Material | ABS+PC |
| Enclosure Protection | IP65 |
TEMPERATURE PERFORMANCE
| Discharge Temperature | -4 ~ 131 ºF (-20 ~ 55 ºC) |
| Charge Temperature | -4 ~ 113 ºF (0 ~ 45 ºC) |
| Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| BMS High Temperature Cut-Off | 149 ºF (65 ºC) |
| Reconnect Temperature | 131 ºF (55 ºC) |
HEATING FOIL PERFORMANCE
| Heating Temperature Range | -4 to 41 ºF (-20 to 5 ºC) |
| Heating Time | Approximately 1 hour @ 7.5 A |
| BMS Heating Foil Cut-Off | 158 ºF (70 ºC) |
"MUST ENERGY (GUANGDONG) TECHNOLOGY CO., LTD established in 1998, with professional R&D team, reliable production team and over 20 years experience in green energy filed, MUST ensure you a STABLE, EFFICIENCY, POWERFUL sustainable power solutions, in the areas of home/office power, government/education, and business solutions like Edge Computing, Micro Data Centers, Network Closets, Server Rooms, Small & Medium Data Centers, Industrial Power, Solar Power System, so far MUST sell products to customers in more than 100 countries. Our Li-ion battery portfolio covers Cells, Modules (12V, 24V, 48V), Lead Acid Replacement Lithium Battery, Powerwall Battery, Rack Mounted Power Storage, Telecom Lithium Battery, Solar Lithium Battery, UPS Lithium Battery, Motive Battery, Energy Storage System and Battery cabinets (indoor/outdoor), which offer customers excellent scalability and adaptability to a wide variety of requirements. Customized design is also available upon request."
Other Types of Lithium Battery
Q1: What is the MOQ for this model?
A1:1 pc for you to test the quality , We can also ship the goods in a week to customer when we have stock.
Q2: How would the goods be shipped?
A2: We ship goods by DHL, UPS, FedEx, TNT and by Sea normally.
Q3: How about the delivery time?
A3: 7 days for sample; 40-45 days for bulk order.
Q4: What is the warranty of this model?
A4: Three years warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q6: What is the payment?
A6:T/T, Western Union, Ali Pay, LC are warmly welcomed.
