Solar 12 Volt Lithium Iron Phosphate Battery 100Ah Rechargeable
Price:
USD225/pc
MOQ:
100
Delivery Time:
10-15days
Brand:
MUST
Product Description
MUST 12.8V 100Ah Lithium Ion Battery BMS Board for Solar System
Product Description
LP15-12100 (12.8V/100Ah)
- A lithium-iron battery, or a lithium-iron-phosphate battery, is typically made with lithium iron phosphate (LiFePO4) as the cathode. One thing worth noting about their raw materials is that LiFePO4 is a nontoxic material, whereas LiCoO2 is hazardous in nature.

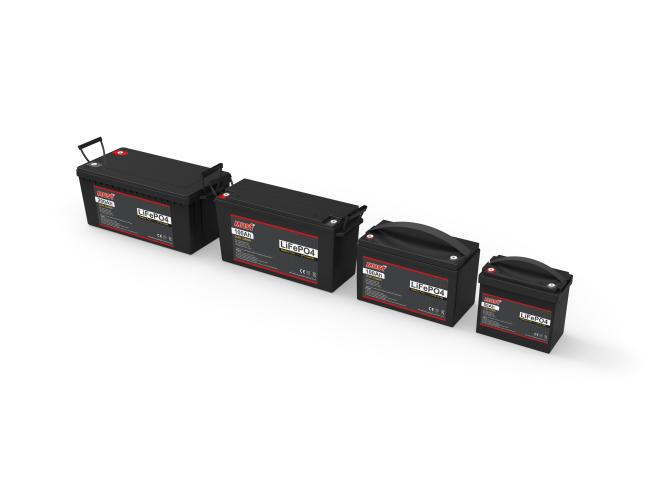

Pictures
Detailed parameters
ELECTRICAL PERFORMANCE
| Nominal Voltage | 12.8V |
| Nominal Capacity | 50AH |
| Capacity @ 20A | 300 min |
| Energy | 640Wh |
| Communication | CAN2.0/RS232/RS485 |
| Resistance | ≤30 mΩ @ 50% SOC |
| Efficiency | >96% |
| Module Parallel | Up to 3 packs |
CHARGE PERFORMANCE
| Recommended Charge Current | 20A |
| Maximum Charge Current | 50A |
| Recommended Charge Voltage | 14.6V |
| BMS Charge Cut-Off Voltage | <15.6 V (3.9V/Cell) |
| Reconnect Voltage | >14.4 V (3.6V/Cell) |
| Balancing Voltage | <14.4 V (3.6V/Cell) |
| Maximum Batteries in Series | 4 (*Consult MUST) |
MECHANICAL PERFORMANCE
| Dimension (L x W x H) |
228*144*210mm
9.0 x 5.7x 8.3”
|
| Approx. Weight | 27.8lbs (7.5 kg) |
| Terminal Type | DIN POST |
| Terminal Torque | 80 ~ 100 in-lbs (9 ~ 11 N-m) |
| Case Material | ABS+PC |
| Enclosure Protection | IP65 |
DISCHARGE PERFORMANCE
| Maximum Continuous Discharge Current | 50 A |
| Peak Discharge Current | 80A (3s) |
| BMS Discharge Cut-Off Current | 120A ±5A (300ms) |
| Recommended Low Voltage Disconnect | 11V (2.75V/Cell) |
| BMS Discharge Cut-Off Voltage | >8.0V (2s) (2.0V/Cell) |
| Reconnect Voltage
|
>10.0 V (2.5V/Cell) |
| Short Circuit Protection | 250 ~ 500 μs |
TEMPERATURE PERFORMANCE
| Discharge Temperature | -4 ~ 131 ºF (-20 ~ 55 ºC) |
| Charge Temperature | -4 ~ 113 ºF (0 ~ 45 ºC) |
| Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| BMS High Temperature Cut-Off | 149 ºF (65 ºC) |
| Reconnect Temperature | 131 ºF (55 ºC) |
HEATING FOIL PERFORMANCE
| Heating Temperature Range | -4 to 41 ºF (-20 to 5 ºC) |
| Heating Time | Approximately 1 hour @ 7.5 A |
| BMS Heating Foil Cut-Off | 158 ºF (70 ºC) |
