25.6V 125AH 3200WH Lithium Battery Solar System Deep Cycles

Price Negotiable
Price: Negotiable
MOQ: 1 pieces
Delivery Time: 7 days for sample , 30-45 days for bulk order
Brand: MUST
Product Description



Lithium Ion Solar Batte 25.6V 125AH 3200WH Lithium Ion Battery Pack Lead Acid Replacement Series









Lithium Iron Phosphate Battery LP15-24125 (25.6V/125Ah)



With smart design and elegant appearance, MUST LiFePO4 battery is an ideal replacement for traditional lead acid battery,offering a drop-in solution for lead acid battery replacement. Our battery can be used individually or assembled in series to create larger system.

  •  equivalent.



APPLICATIONS

Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.

Suitable applications include:

•Caravan
•Marine
•Golf Car
•Buggies

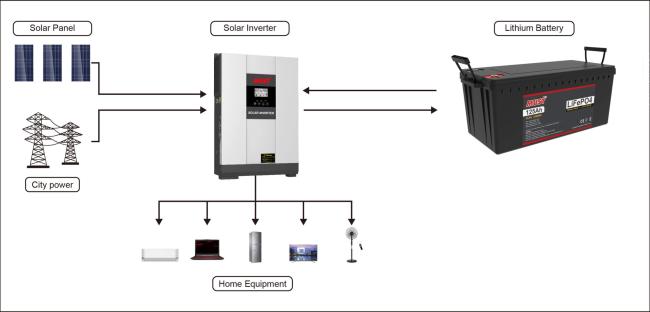

•Solar Storage
•Remote Monitoring
•Switching applications and more



ELECTRICAL PERFORMANCE

Nominal Voltage 25.6 V
Nominal Capacity 125 Ah
Capacity @ 20A 300 min
Energy 3200 Wh
Resistance ≤40 mΩ @ 50% SOC
Self Discharge <3% / Month

CHARGE PERFORMANCE

Recommended Charge Current 20A
Maximum Charge Current 100A
Recommended Charge Voltage 29.2V
BMS Charge Cut-Off Voltage <31.2 V (3.9V/Cell)
Reconnect Voltage >28.8 V (3.6V/Cell)
Balancing Voltage <28.8 V (3.6V/Cell)
Maximum Batteries in Series 8 (*Consult MUST)

DISCHARGE PERFORMANCE

Maximum Continuous Discharge Current 100 A
Peak Discharge Current 200 A (3s)
BMS Discharge Cut-Off Current 300 A ±10 A (31ms)
Recommended Low Voltage Disconnect 22 V (2.75V/Cell)
BMS Discharge Cut-Off Voltage >16.0 V (2s) (2.0V/Cell)
Reconnect Voltage >20.0 V (2.5V/Cell)
Short Circuit Protection 250 ~ 500 μs

COMPLIANCE

Certifications CE (battery) UN38.3 (battery)
UL1642 & IEC62133 (cells)
Shipping Classification UN 3480, CLASS 9

MECHANICAL PERFORMANCE

Dimension (L x W x H) 522 x 240 x 218 mm
20.6 x 9.5 x 8.6″
Approx. Weight 27.8 lbs (30kg)
Terminal Type DIN POST
Terminal Torque 80 ~ 100 in-lbs (9 ~ 11 N-m)
Case Material ABS+PC
Enclosure Protection IP65

TEMPERATURE PERFORMANCE

Discharge Temperature -4 ~ 131 ºF (-20 ~ 55 ºC)
Charge Temperature -4 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature 23 ~ 95 ºF (-5 ~ 35 ºC)
BMS High Temperature Cut-Off 149 ºF (65 ºC)
Reconnect Temperature 131 ºF (55 ºC)

HEATING FOIL PERFORMANCE

Heating Temperature Range -4 to 41 ºF (-20 to 5 ºC)
Heating Time Approximately 1 hour @ 7.5 A
BMS Heating Foil Cut-Off 158 ºF (70 ºC)

Company Info :





Must Power Limited established in 1998 Shenzhen, China, which is a leading manufacturer of power system products & service solutions, including Lithium Battery ,Uninterruptible Power Supplies (UPS), Power Inverters, Solar Inverters, Solar Charge Controllers, etc. Also we provide solar system solutions to clients all over the world.

























Our Services



Certifications













FAQ

1. Are you a manufacturer?
Yes, MUST is a manufacturer with 20+ year experience on Lithium Battery, Solar Inverter and UPS system.

2. Can I have a sample order?
Yes, we welcome sample order to test and check quality.

3. What about the lead time?
(1)Sample needs 3-5 days

(2)Mass production time needs around 25 working days.

4. Do you have any MOQ limit?
(1)For Retails,we have no MOQ.,1pc can be an order.
(2)For wholesales,we have MOQ for better price, normally 50-100pcs.

5. How do you ship the goods and how long does it take to arrive?
(1)For small quantity,we often ship by air, arrive time is about 3-10 days to different countries.
(2)For official order,suggest to ship by Ocean to save cost. To USA, arrive time is about 25 days,to
Europe,arrive time is about 30 days.

6. How to proceed with an order?
(1)Let us know your requirements or application.
(2)We quote according to your requirements or our recommendations .
(3)Customer confirms the samples and places formal order.
(4)We arrange the production.
(5) We ship to you .

7. Is it OK to print my logo?
Yes, OEM or ODM order are welcome .

8. Which certificates do you have?
We have CE/UN38.3/MSDS ...etc. Promise a good quality to our customers.

9. How about warranty?
