100AH Rack Mount Lithium Battery
Price:
Negotiable
MOQ:
1
Delivery Time:
30-45 working days
Brand:
MUST
Product Description
MUST Lithium Battery
Technical Data
ELECTRICAL PERFORMANCE
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 100 Ah |
| Capacity @ 20A | 300 min |
| Energy | 5120 Wh |
| Communication | CAN2.0/RS232/RS485 |
| Resistance | ≤45 mΩ @ 50% SOC |
| Efficiency | ＞96% |
| Module Parallel | Up to 16 packs |
MECHANICAL PERFORMANCE
| Dimension (L x W x H) |
482 x 480 x 133 mm 19.0 x 18.9 x 5.2” |
| Approx. Weight | 20.0 lbs (44 kg) |
| Terminal Type | DIN POST |
| Terminal Torque | 80 ~ 100 in-lbs (9 ~ 11 N-m) |
| Case Material | SPPC |
| Enclosure Protection | IP65 |
TEMPERATURE PERFORMANCE
| Discharge Temperature | -4 ~ 131 ºF (-20 ~ 55 ºC) |
| Charge Temperature | -4 ~ 113 ºF (0 ~ 45 ºC) |
| Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| BMS High Temperature Cut-Off | 149 ºF (65 ºC) |
| Reconnect Temperature | 131 ºF (55 ºC) |

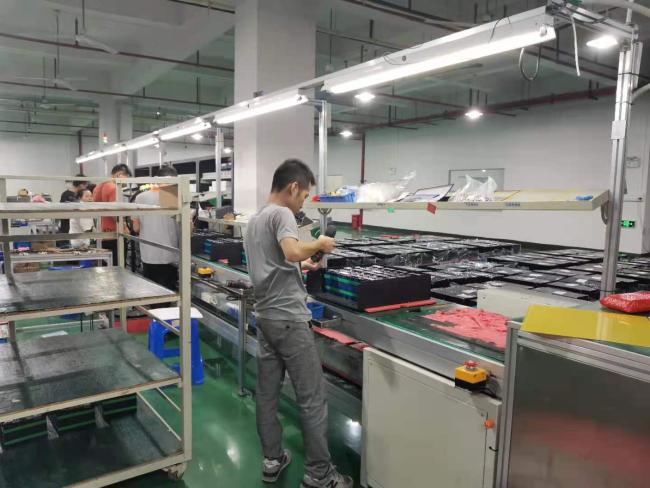

Company Picture
