PE Fiber Optic Cable Protection Sleeve 60mm 50mm 45mm 40mm Custom
Price:
Negotiable
MOQ:
10000pcs
Delivery Time:
15 days
Brand:
Focus Infra or OEM
Product Description
Fiber Optic Cable Protection Sleeve For Optical Fiber Jumper
Features:

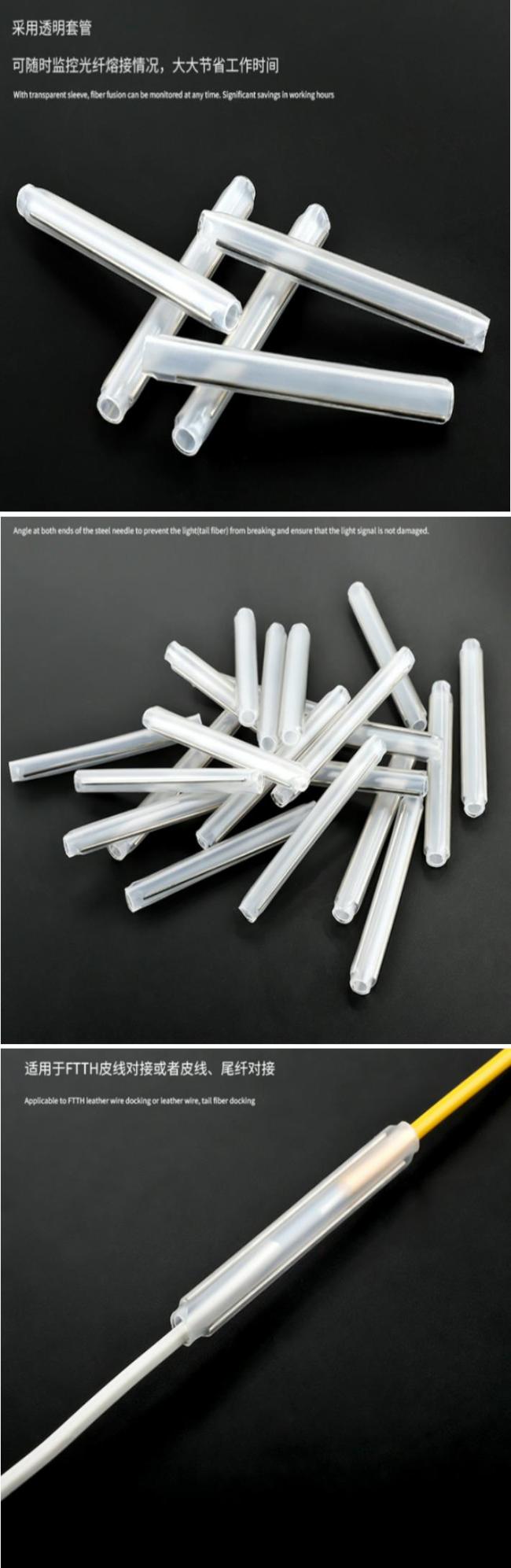

- With transparent sleeve,fiber fusion can be monitored at any time. Significant savings in working hours.
- Angle at both ends of the steel needle to prevent the light(tail fiber) from breaking and ensure that the light signal is not damaged.
- Applicable to FTTH leather wire docking or leather wire, tail fiber docking.
| Product name | Fiber heat shrinkable tube |
| Steel needle material | 304 stainless steel |
| Outer skin material | Environmentally friendly PE |
| Product unit | 50pcs per bag |
| Length dimension | 60mm 50mm 45mm 40mm |
| Product color | Transparent |
| Scope of application | Optical fiber fusion splicing, protecting optical fiber |
Technical Parameters:
|
Specification |
Test method |
Typical data |
|
Tensile strength(MPa) |
ASTM D 2671 |
18 |
|
Elongation at Break (%) |
ASTM D 2671 |
700 |
|
Density(g/cm2) |
ISO R1183D |
0.94 |
|
Dielectric strength (KV/mm) |
IEC 243 |
20 |
|
Permittivity |
IEC 243 |
2.5 |
|
Length rate of change (%) |
ASTM D 2671 |
+5 |
