Patchcord Armored 10m Patch Cable G652D SC UPC Patch Cord
SC UPC SC UPC Patchcord Armored 1m to 15m Simplex Ftth Cable PVC Fibra Optica Patch Cable
Description:
SC UPC SC UPC Patchcord Armored 1m to 15m Simplex Ftth Cable PVC Fibra Optica Patch Cable is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box.
According to different transmission media, optical fiber jumpers can be divided into common single-mode and multi-mode jumpers of silicon-based optical fiber, as well as other optical fiber jumpers with plastic as transmission media; According to the connector structure, it can be divided into FC jumper, SC jumper, St jumper, LC jumper, MTRJ jumper, MPO jumper, Mu jumper, SMA jumper, FDDI jumper, E2000 jumper, din4 jumper, D4 jumper and so on. SC type optical fiber jumper with the connector connecting GBIC optical module. Its shell is rectangular. The fastening method is plug-in pin latch type without rotation (most used on routers and switches).
| Technical Parameters | ||||||||
| PARAMETER+A2:L17 | UNIT | FC,SC,LC | ST,MU | |||||
| SM | MM | SM | MM | |||||
| PC | UPC | APC | PC | PC | UPC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
| Operating Wavelength | nm | 1310 1510 | ||||||
| Exchangeability | dB | ≤0.2 | ||||||
| Vibration | dB | ≤0.3 | ||||||
| Operating Temperature | ℃ | -40℃ to 75℃ | ||||||
| Storage Temperature | ℃ | -40℃ to 85℃ | ||||||
| Cable Diameter | mm | Φ3.0 Φ2.0 Φ0.9 or customized | ||||||
| Material of the jacket | PVC or LSZH or customized | |||||||
| Color fo the jacket | SM yellow, OM1,OM2 orange, OM3 aqua,or customized | |||||||
| Single mode fibe | ITU-T G652, or G655, or G657 | |||||||
| Multi monde fiber | ITU-TG.651 | |||||||
| Fiber type | 9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3) | |||||||
3.Application
1. Communication rooms
2. FTTH (Fiber to The Home)
3. LAN (Local Area Network)
4. FOS (fiber optic sensor)
5. Fiber Optic Communication System
6. Optical fiber connected and transmitted equipment
7. Defense combat readiness
8. Telecommunication networks
9. Fiber optic communication networks
10. CATV, LAN, MAN, WAN, Test &Measurement
Characteristics:

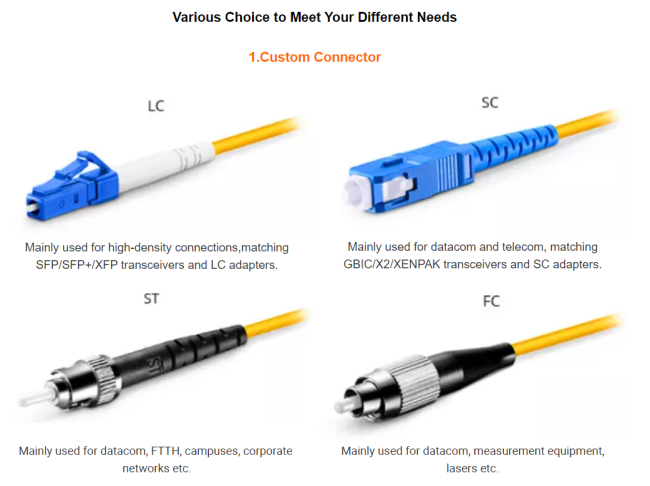

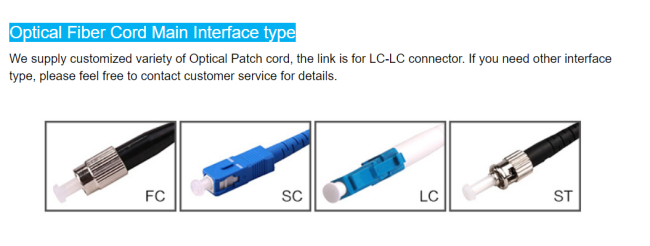

1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPCAPC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...

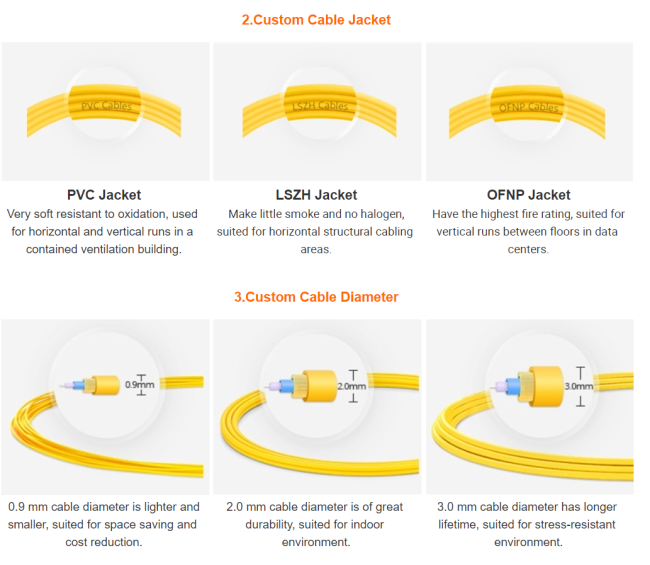

5. Cable Diameter: 3.0mm,2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customized
