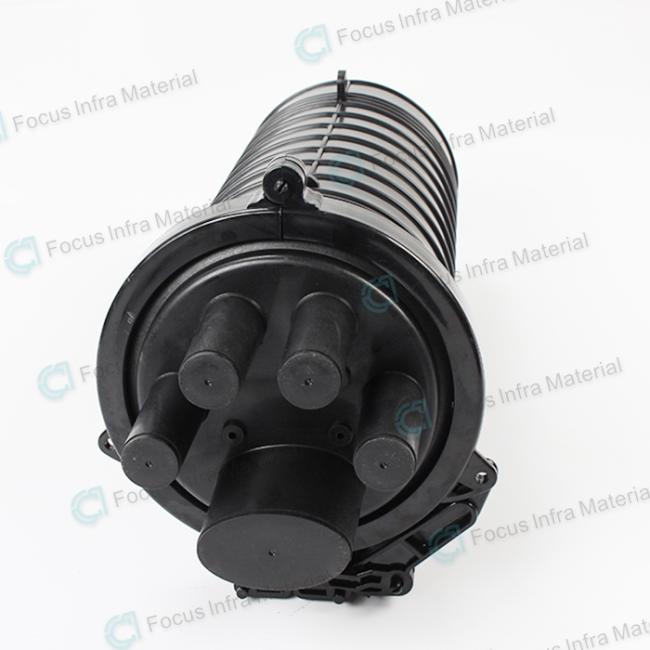

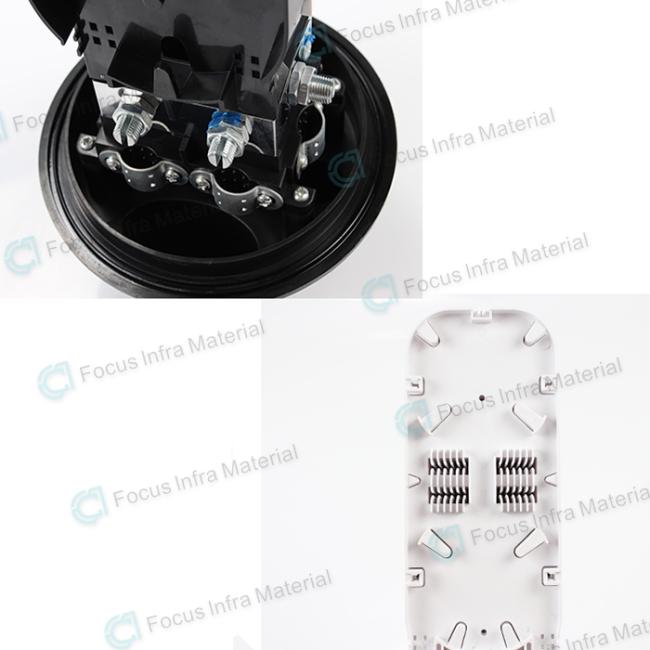

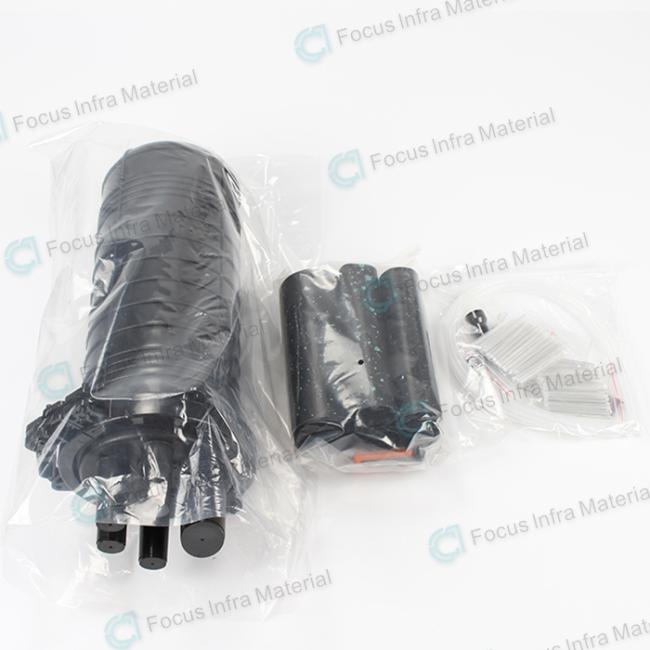

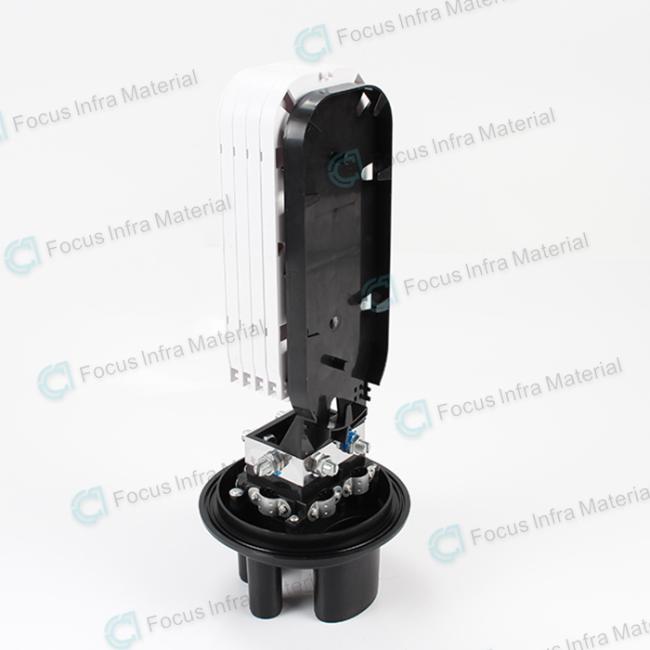

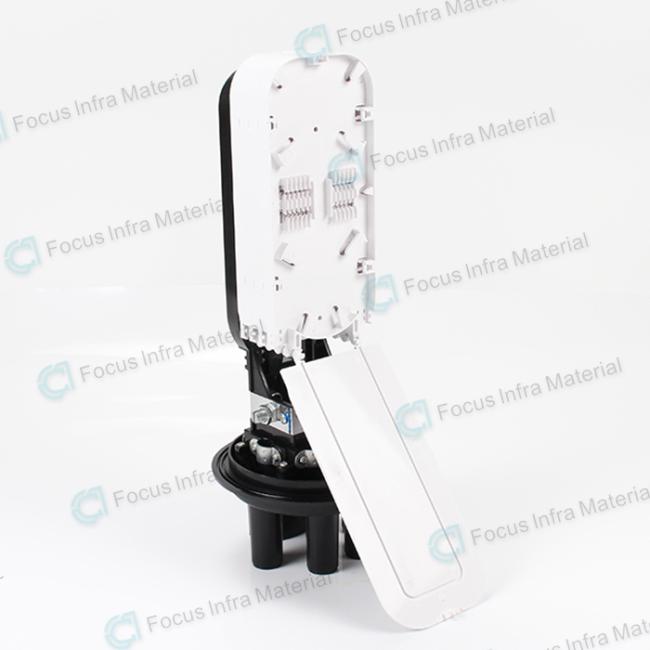

96 Core Fiber Optic Splice Closure
Duct Mounting IP65 1 Inlets 4 Outlets Plastic Fiber Optic 48 96 72 Cable Splice Closure Equipment
Description:
Duct Mounting IP65 1 Inlets 4 Outlets Plastic Fiber Optic 48 96 72 Cable Splice Closure Equipment, also known as Duct Mounting IP65 1 Inlets 4 Outlets Plastic Fiber Optic 48 96 72 Cable Joint Box, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. Horizontal Type 3 Inlets 3 Outlets Fiber Optical Cable Splice Joint Box is widely apply for the connecting of optical cable. Duct Mounting IP65 1 Inlets 4 Outlets Plastic Fiber Optic 48 96 72 Cable Splice Closure Equipment is used for the protective connection and fiber distribution between two or more optical cables, it is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.
Duct Mounting IP65 1 Inlets 4 Outlets Plastic Fiber Optic 48 96 72 Cable Splice Closures are widely apply for the connecting of optical cable.It Suitable for straight-through, diverging and connection of FTTH. FTTB all kinds of optical communication passive network.
Specification:
| Product name | Dome Type Vertical Fiber Optic Splice Box |
| Protection level | IP65 |
| Scope of application | 12 core to 96 core |
| Gross weight | 2 kg |
| Main material | ABS |
| Scope of use | Outdoor Aerial Dome,Buried,pole mount type outdoor |
| Ambient temperature | - 40 °C ~ + 60 °C |
| Service life | ≥20 years |
| Application scope | FTTH FTTB FTTX Network |
| Atmospheric pressure | 70kPa~106kPa |
| Insulation resistance | >2*10MΩ/500V(pc) |
| Tensile strength | >1200N |
