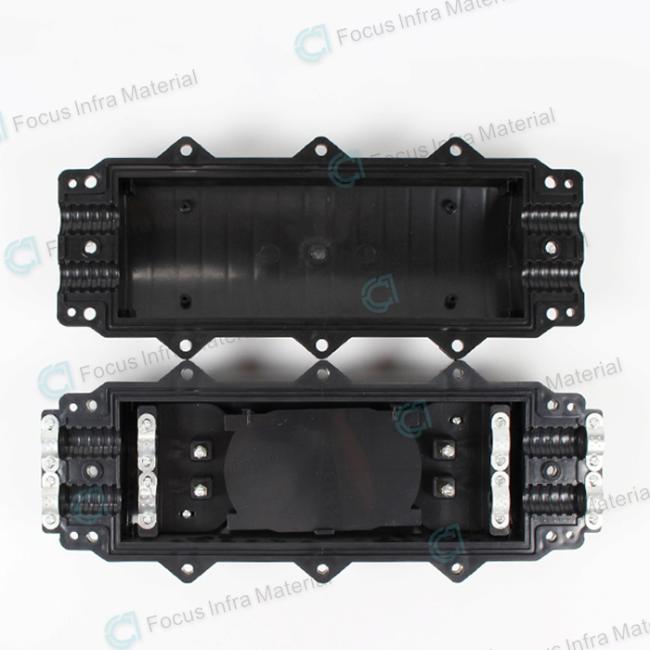

48F 72F 96F Fiber Optic Splice Closure 2 In 2 Out Joint Closure 48 Fibre 2kg

Price Negotiable
Price: negotiable
MOQ: 50pcs
Delivery Time: 15 days
Brand: Focus Infra or OEM
Product Description

Fiber Optical Splice Joint Protect Closure is also known as Optical cable junction box, fiber optical cable junction box and gun barrel. It can be place with the aerial cable or buried in earth or put in the pipeline. It is one of commonly used equipment of user access point.

A Fiber Optical Closure is used for the outdoor connection between optical distribution cable and optical in room cable.

Our Fiber Optical Splice Junction Box is available for aerial, duct, direct buried application, it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength. The solid shell and main structure of optical cable junction box can endure the worst environmental changes, and play a flame retardant role at the same time. Waterproof effect, so that vibration, impact, cable tension, twist and so on are protected.

Product name Horizontal Type Vertical Fiber Optic Splice Box
Protection level IP65
Scope of application 12 core to 96 core
Gross weight 2 kg
Main material ABS
Scope of use Outdoor Aerial Dome,Buried,pole mount type outdoor
Ambient temperature - 40 °C ~ + 60 °C
Service life ≥20 years
Application scope FTTH FTTB FTTX Network
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1000N
