SC APC Fiber Optic Adapters 50db LC Simplex Adapter FTTH FTTX FTTA

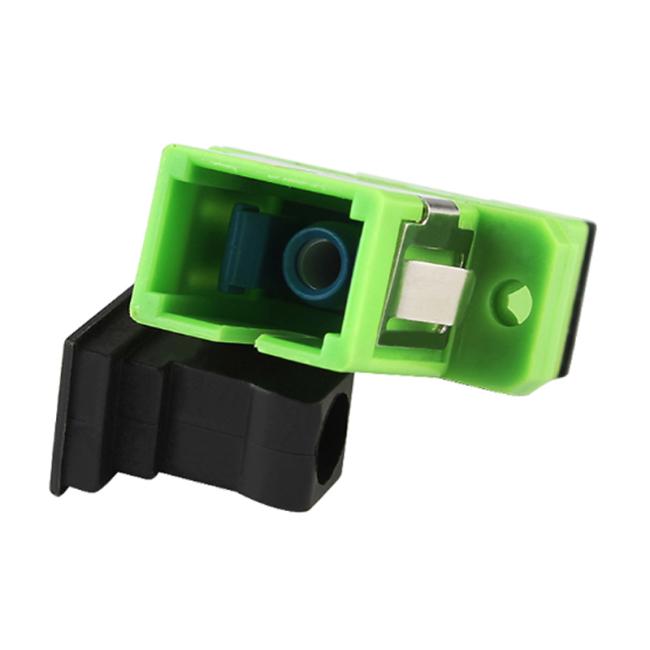

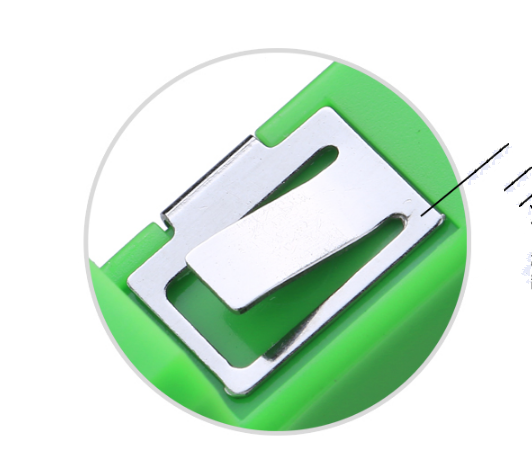

SC APC SX Single Mode with Metal Clips with Flange Fiber Optic Coupler
Desciption:
Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).
Single mode SC/APC Simplex Fiber Optic Adapters are designed for mounting in standard rectangular cut out style panels. This series features either bronze or ceramic alignment sleeves to meet your specific design requirements.
APPLICATIONS
CATV
Telecommunication networks
Local Area Networks (LANs)
Metro networks
Data processing networks
Industrial, military and medical
Feature:
1. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
2. Multimode or Single Mode, OM3,OM4 available
3. Quad
4. Ceramic sleeve, ABS housing
5. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
6. Operating temp.: -40° C~+85° C
7. Standard plugging force: 2~6N
8. Durability > 1000 times
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
