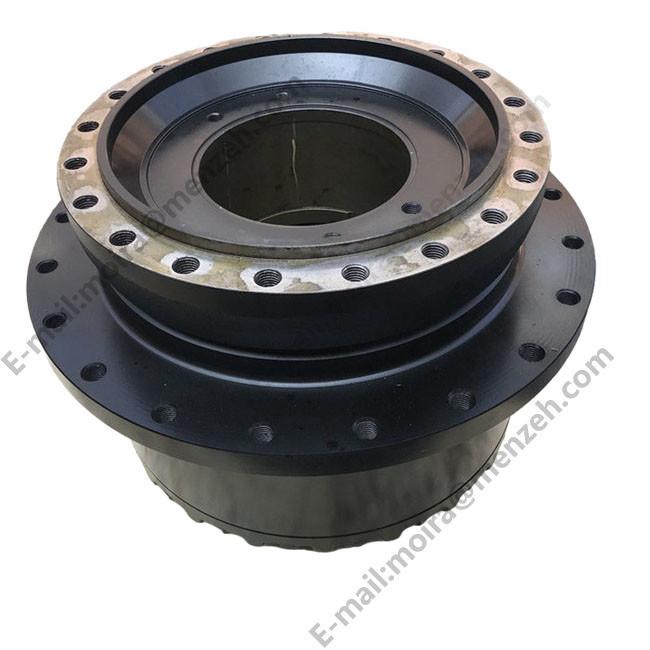

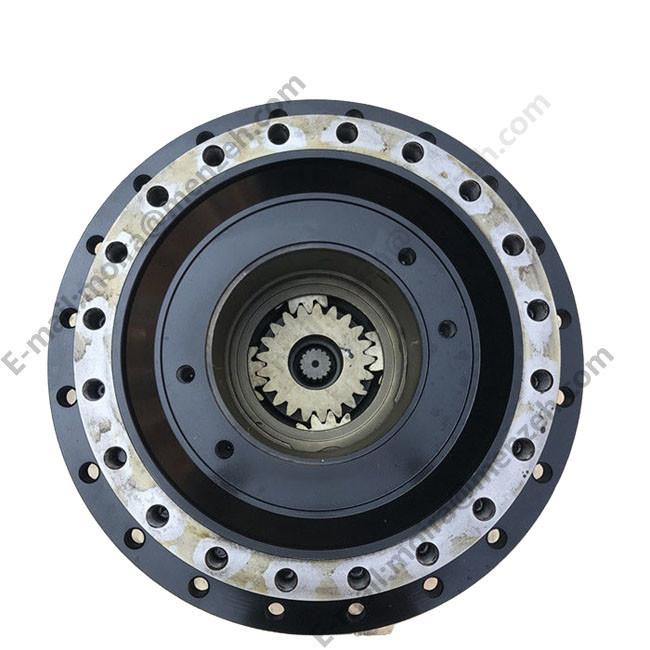

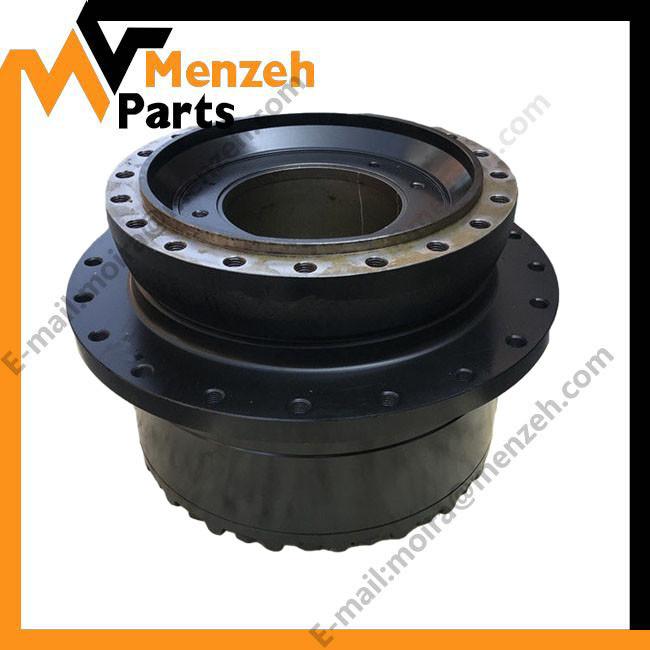

227-6045 3530499 3530528 Excavator Travel Gearbox For E345D E330D E345C E349D

Price Negotiable
Price: Negotiated
MOQ: 1pc
Delivery Time: 1-3 working Days
Brand: MENZEH GEARS
Product Description

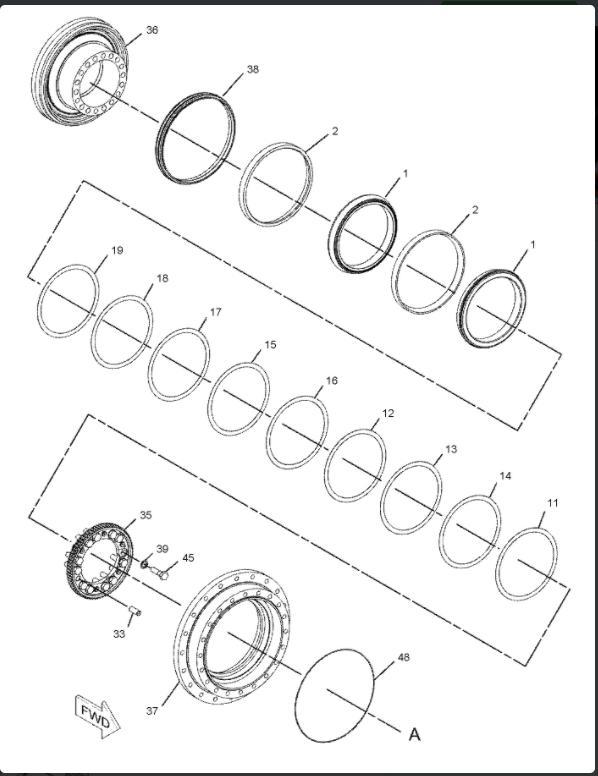

Pos. Part No Qty Parts name Comments
1 2R-0524 [2] CONE-BEARING
2 2R-0525 [2] CUP-BEARING
3 4I-7576 [14] WASHER (66.3X104X3-MM THK)
4 7M-8485 [2] SEAL-O-RING
5 7Y-0661 [3] SHAFT-PLANETARY
6 7Y-0662 [4] SHAFT-PLANETARY
7 199-4583 [11] BEARING AS
8 7Y-0808 B [1] SHIM (1.6-MM THK)
9 7Y-1469 [1] COUPLING
10 7Y-1470 [1] GEAR-SUN (21-TEETH)
11 7Y-1472 B [1] SHIM (0.15-MM THK)
12 7Y-1473 B [1] SHIM (0.3-MM THK)
13 7Y-1474 B [1] SHIM (0.4-MM THK)
14 7Y-1475 B [1] SHIM (0.5-MM THK)
15 7Y-1476 B [1] SHIM (0.6-MM THK)
16 7Y-1477 B [1] SHIM (0.7-MM THK)
17 7Y-1478 B [1] SHIM (0.8-MM THK)
18 7Y-1479 B [1] SHIM (1-MM THK)
19 7Y-1480 B [1] SHIM (1.6-MM THK)
20 7Y-1482 [1] CARRIER-PLANETARY
21 7Y-1483 [1] GEAR-RING (63-TEETH)
22 7Y-1485 [1] CARRIER-PLANETARY
23 7Y-1487 [1] GEAR-RING (85-TEETH)
24 7Y-1488 [1] CARRIER AS
  7Y-0656 [3] SHAFT-PLANETARY
25 7Y-1491 [1] GEAR-SUN (21-TEETH)
26 7Y-1493 [1] SPACER (8.7X50X14-MM THK)
27 7Y-1495 [3] GEAR-PLANETARY (29-TEETH)
28 7Y-1498 [1] COVER
29 7Y-1499 [3] GEAR-PLANETARY (20-TEETH)
30 7Y-1504 [4] GEAR-PLANETARY (20-TEETH)
31 7Y-5235 M [20] BOLT (M24X3X190-MM)
32 110-7217 [2] RING-RETAINING
33 114-1541 [6] PIN-DOWEL
34 169-5559 [1] GEAR-SUN (26-TEETH)
35 199-4719 [1] GEAR-COUPLING
36 200-3489 [1] HOUSING-MOTOR
37 200-3490 [1] HOUSING-GEAR
38 205-9025 [1] SEAL GP-DUO-CONE
  205-9024 [2] RING-TORIC
39 227-6048 [12] WASHER (26X40X4-MM THK)
40 094-0584 [6] WASHER (40.3X72X1-MM THK)
41 199-4582 [3] BEARING AS
42 095-0891 [7] PIN-SPRING
43 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
44 3E-2338 [2] PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL)
45 6V-8133 M [12] BOLT (M24X3X80-MM)
46 7Y-1484 [1] SPACER (191X221X8.5-MM THK)
47 7Y-1492 [2] SPACER (67X101.1X10-MM THK)
48 8C-5240 [1] SEAL-O-RING
49 8T-3957 M [10] BOLT-SOCKET HEAD (M12X1.75X30-MM)
50 8T-4167 [20] WASHER-HARD (26X44X4-MM THK)
51 8T-4240 [3] RING-RETAINING
52 1U-8846 B   SEALANT-GASKET
  B   USE AS REQUIRED
  M

METRIC PART



227-6045 3530499 3530528 Hydraulic Travel Reducer For E345D E330D E345C E349D Excavator Spare Parts Travel Gearbox















FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
