KTC0185 LC00233 LC00232 Excavator Swing Gearbox For CX470B CX460
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description

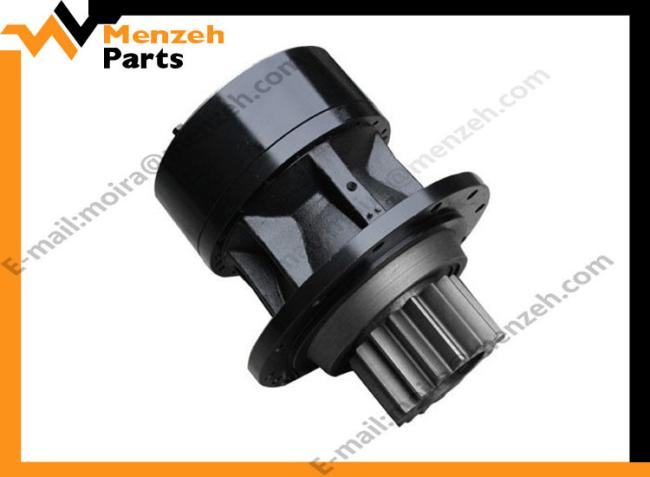

KTC0185 LC00233 LC00232 CX470B CX460 Swing Gearbox Gear Redyction Excavator Parts

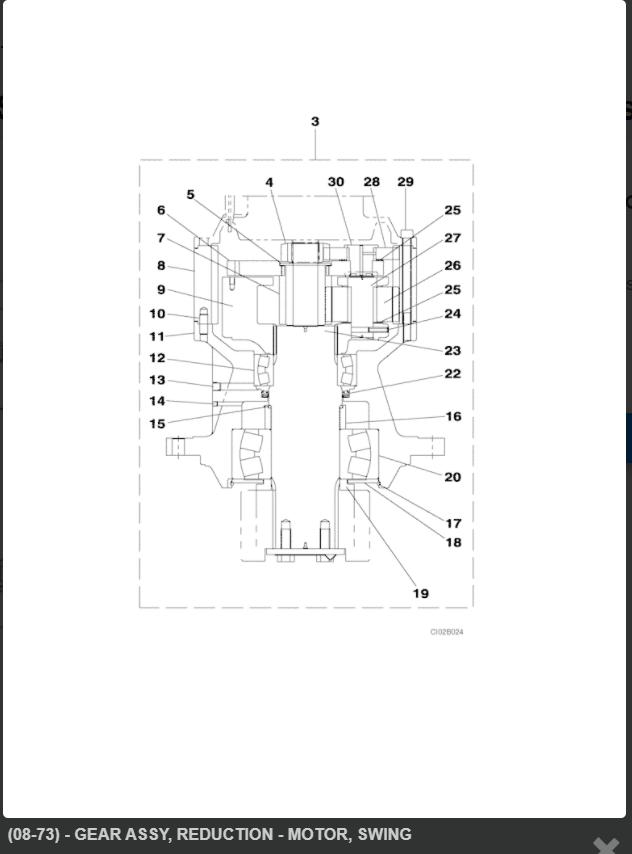

| Pos. | Part No | Qty | Parts name | Comments |
| 3 | KTC0185 | [1] | GEAR REDUCTION UNIT | SUM Incl. 4 - 30; Replaces KTC0148 Superseded by part number: KTC10240 |
| 3 | KTC10240R | [1] | REMAN-REDUCTION UNIT | RAC CX460 CRAWLER EXCAVATOR (NORTH AMERICA), Reman for New PN KTC0185 |
| 3 | KTC10240C | [1] | CORE-REDUCTION UNIT | RAC Return Number |
| 4 | KTC0160 | [1] | SUN GEAR | SUM |
| 5 | NSS | [1] | NOT SOLD SEPARAT | CON Plate, Thrust, Order KTC0182 |
| 6 | KTC0182 | [1] | SHAFT, PLANETARY CAR | SUM Replaces KTC0167 |
| 7 | KTC0161 | [1] | SUN GEAR | SUM |
| 8 | KTC0166 | [1] | RING GEAR | SUM |
| 9 | KTC0183 | [1] | PINION CARRIER | SUM GEAR CARRIER Replaces KTC0168 Superseded by part number: KTC10210 |
| 10 | KTC0155 | [4] | PIN | SUM |
| 9.5. | KTC0188 | [1] | PLANETARY REDUCER | SUM Incl. 10 - 23 |
| 11 | KTC0170 | [1] | HOUSING | SUM |
| 12 | KTC0150 | [1] | BEARING,130mm ID x 210mm OD x 64mm W | SUM |
| 13 | 150824A1 | [1] | PLUG | SUM |
| 14 | 158352A1 | [2] | PLUG | SUM |
| 15 | KTC0158 | [1] | RETAINING WIRE | SUM |
| 16 | KTC0151 | [1] | SPACER | SUM |
| 17 | KTC0159 | [1] | RETAINING WIRE | SUM |
| 18 | KTC0152 | [1] | BEARING COVER | SUM |
| 19 | KTC0154 | [1] | SPACER | SUM |
| 20 | 150252A1 | [1] | BEARING,140 mm ID x 300 mm OD x 102 mm | SUM Superseded by part number: KTC0190 |
| 22 | KTC0153 | [1] | OIL SEAL | SUM |
| 23 | KTC0184 | [1] | SHAFT ASSY. | SUM Replaces KTC0169 |
| 24 | NSS | [4] | NOT SOLD SEPARAT | CON Pin, Spring, Order KTC0183; Replaces 338W100Z040B |
| 25 | NSS | [7] | NOT SOLD SEPARAT | CON Plate; Order KTC0182 |
| 26 | NSS | [4] | NOT SOLD SEPARAT | CON Gear Planetary, Order KTC0183, Replaces KTC0163 |
| 27 | NSS | [4] | NOT SOLD SEPARAT | CON Pin, Order KTC0183; Replaces KTC0165 |
| 28 | NSS | [3] | NOT SOLD SEPARAT | CON Gear, Planetary; Order KTC0182; Replaces KTC0162 |
| 29 | 150237A1 | [18] | BOLT,Hex Skt | SUM |
| 30 | NSS | [3] | NOT SOLD SEPARAT | CON Pin, Order KTC0182; Replaces KTC0164 |

FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
