Electric Hydraulic Fixed Boom Marine Mounted On Deck For Cargo Handling
Electric hydraulic fixed boom marine mounted on deck for general cargo handling
The stiff box boom marine cranes are reliable cranes for general cargo handling, service, and offshore use purse. Onboard various ship types and offshore units. The stiff box boom crane is designed as an electro-hydraulic driven stiff boom crane, with an integrated electro-hydraulic power package or independent electro-hydraulic power package, delivered as a complete unit ready for installation to the foundation. The crane is equipped with a hydraulic powered winch, hydraulically powered luffing, and a hydraulic powered slewing system.
Technical specification
| 1 | SWL | see load chart |
| 2 | Max working radius | 10m |
| 3 | Min working radius | 2.5m |
| 4 | Hosting speed | 0~12m/min |
| 5 | Slewing speed | 0.6r/min |
| 6 | Slewing angle | 360° free |
| 7 | Luffing time | 55s |
| 8 | Hook travel | 25m |
| 9 | Working condition | |
| Heel | ≤ 5° | |
| Trim | ≤ 2° | |
| 10 | Electric motor | |
| Power | 45 Kw | |
| Speed | 1480r/min | |
| Power source | 440V 50Hz, | |
| Protect class | F | |
| Working type | S1 | |
| 11 | Flow | 80L/min |
| 12 | Design temperature | -10°~40° |
| 13 | Dead weight | ~11500 kg |
General drawing

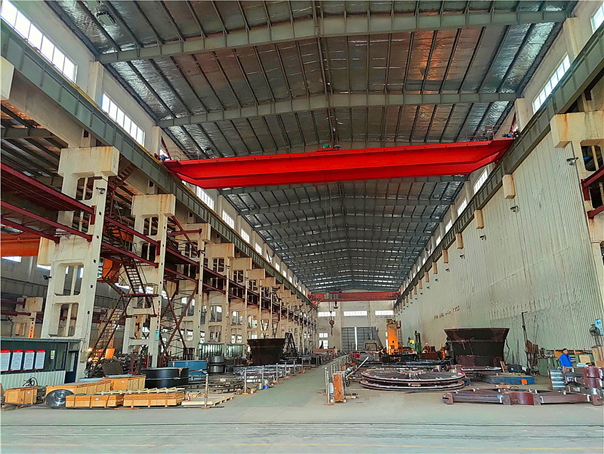

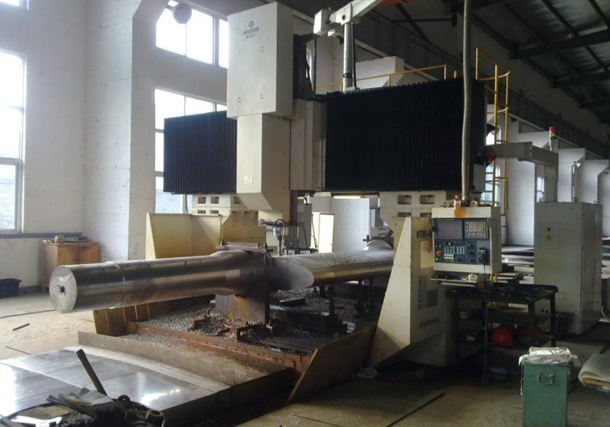

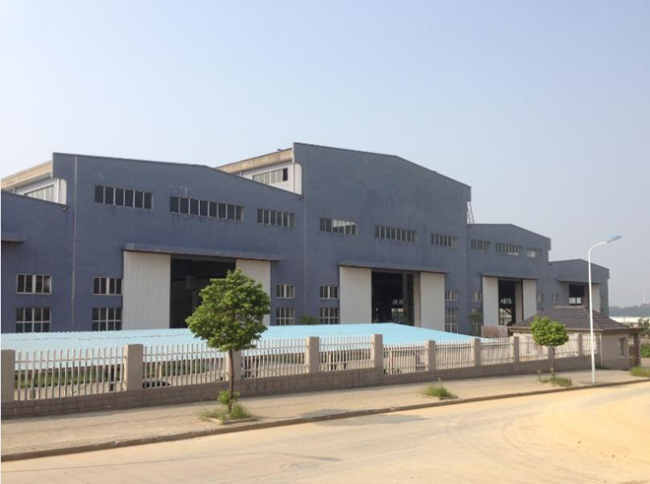

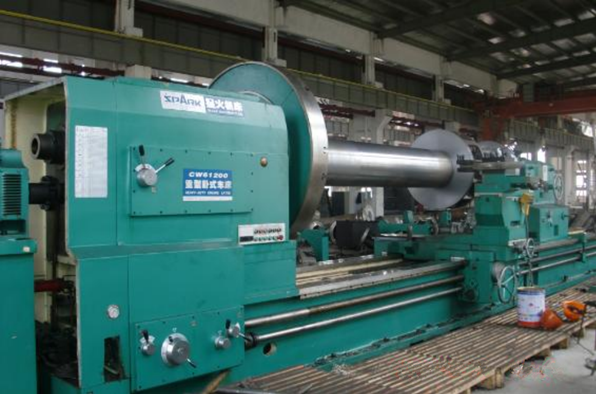

Pictures of our factory
