Waterproof Drip And Spray Test Chamber IPX1 To IPX4 Rain Test Chamber
Waterproof Drip and Spray Test Chamber IPX1 to IPX4 Rain Test Chamber
Complied Standards & Clauses
The equipment is designed and manufactured according to requirements of IEC 60529: 2013 IPX1, IPX2, IPX3 and IPX4.
Product Overview
It is used for testing electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components’ physical and other related properties under simulated climatic conditions. After the test, it is judged whether the performance of the product meets the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.
Technical Parameters
| Model | SN4413-1400 |
| Inner Chamber | 1400mm*1400mm*1400mm |
| Outer Chamber | Approx. 1900mm*1560mm*2400mm |
| Outer Chamber Material | Spray treatment, concise, beautiful and smooth |
| Inner Chamber Material | High quality stainless steel plate |
| Weight | Approx.380KG |
| Turntable | |
| Rotating Speed | 1 ~5 rpm adjustable |
| Turntable Diameter | 600mm |
| Turntable Height | Adjustable height: 200mm |
| Turntable Bearing Capacity | Max. 20KG |
| Turntable Function |
IPX1 turntable parallel IPX2 turntable can be tilted 15° IPX3/4 turntable can rotation 360° |

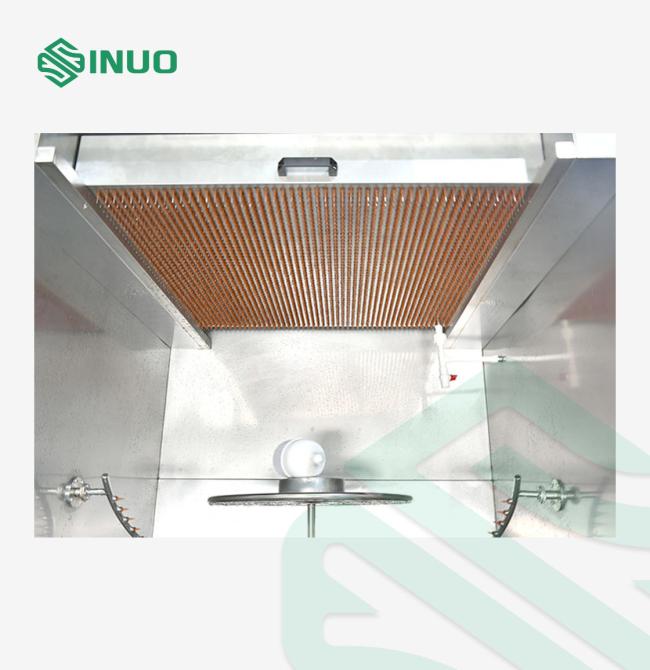

| IPX1/2 Dripping | |
| Dripping Hole Diameter | φ0.4 mm |
| Dripping Aperture Spacing | 20 mm |
| IPX1, IPX2 Dripping speed (water flow) |
1 +0.5 0mm/min(IPX1) 3 +0.5 0mm/min(IPX2) |
| Dripping Area | 1000X1000 mm |
| Distance between Drip Box and Sample | 200 mm |

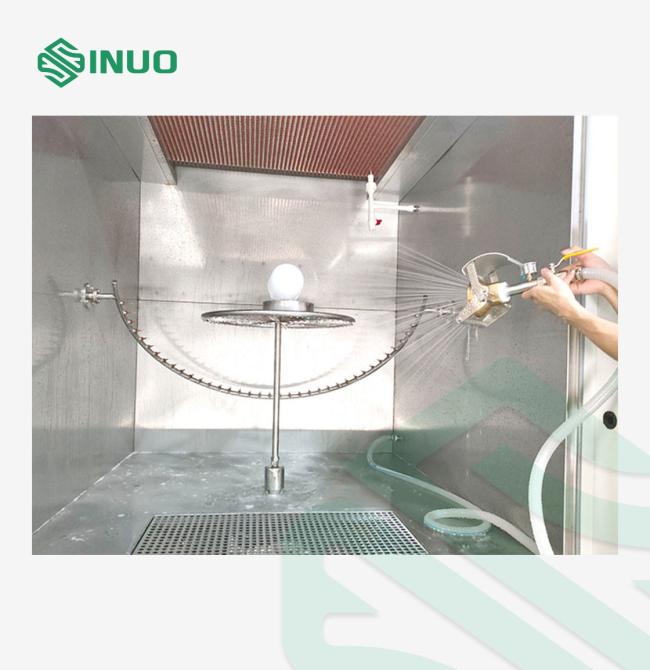

| IPX3/4 Oscillating Tube | |
| Oscillation Tube | R600 mm |
| Distance between Nozzle Sample | Within 200mm |
| Spray Aperture Spacing | 50 mm |
| Oscillating Angle Range of Oscillating Tube |
±60° (IPX3), approximately ±160°(IPX4) (Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved) |
| Needle Hole | φ0 .4 mm |
| Oscillating Speed | IPX3: 15times/min; IPX4: 5times/min |
| Water Flow of Each Hole | 0.07 L/min +5% |
| Spray Pressure | 80-150Kpa |
Details
