IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment
IPX5 IPX6 Automotive Parts Water Resistance Tester IP Code Test Equipment
Complied Standards & Clauses
It is designed and manufactured in accordance with the standard requirement of IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX5 and IPX6.
Product Overview
The testing system is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree I IPX5 and IPX6.
This IPX5 and IPX6 water ingress testing equipment ensures that the water spray speed reaches the standard required value by controlling the water supply flow, the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles as shown in IEC 60529 figure 6.
Technical Parameters
| IPX5/6 | |
| Parameters of Hose Nozzle |
IPX5: Ф6.3mm; IPX6: Ф12.5mm
|
| Delivery Rate |
IPX5: 12.5±0.625L/min IPX6: 100±5 L/min |
| Distance from Nozzle to Enclosure Surface | 2.8m ((The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m) |
| Water Jet Directions | The angle of water jetting can be adjusted |
| General | |
| Control & Operation | PLC and touch screen intelligent control system |

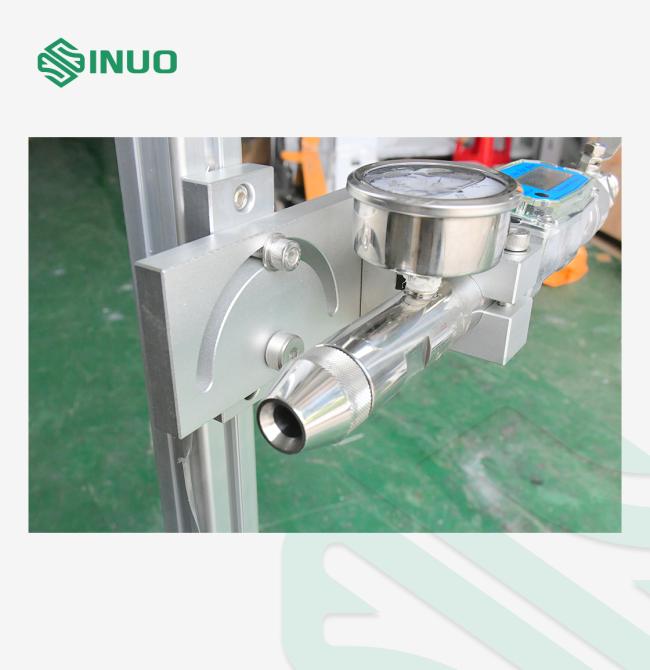

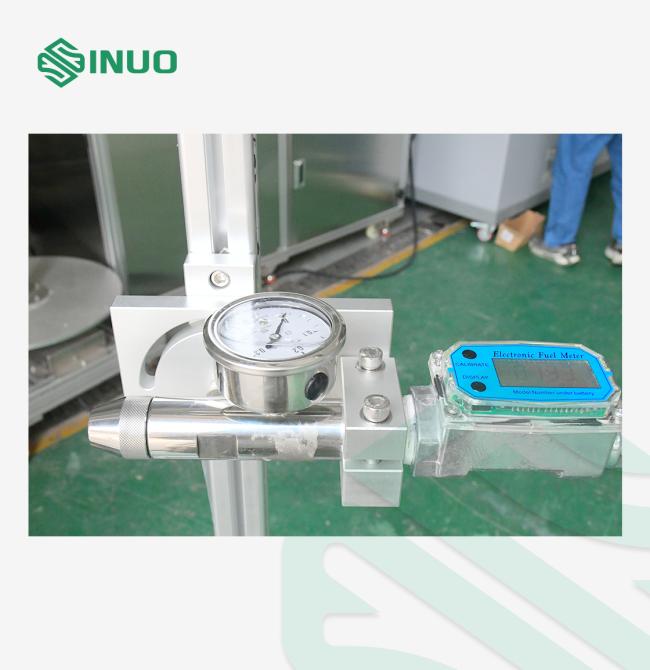

| Nozzle Fixed Method | Spray nozzle and hose nozzles are fixed on the support |
| Pressure Gauge | 0~0.25MPa, can be displayed |
| Test Duration | 0.01S～99.9 min, can be preset |
| Turntable | Diameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50kgs |
| Water Storage Tank | This test system adopts open type structure, the test water is not recycled. The test system is equipped with an approximately 500L stainless steel water storage tank. The water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water. The water storage tank and electrical control part are integrated. |
| Safety Protection | Phase sequence protection, leakage protection, water shortage protection, abnormal protection. |
| Power Supply | AC380V,50Hz, 4KW |
