Oscillating Tube Waterproof Tester IPX3 IPX4 IPX5 IPX6 Test Chamber
Oscillating Tube Waterproof Tester IPX3 IPX4 IPX5 IPX6 Test Chamber
Complied Standards & Clauses
Conforms toIEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures (IP Code)> IPX3, IPX4, IPX5, IPX6 test, figures 4 and figure 6.
Product Overview
Water can be a powerful enemy of electronics — from corrosion and deformation to dangerous short circuits that may lead to fire. The IPX3~IPX6 Oscillating Tube and Jet Nozzle Test Chamber is designed to simulate real-world rain and water jet conditions to ensure your products can withstand moisture exposure and meet IEC 60529 waterproof standards.
This chamber provides a reliable and repeatable testing environment for assessing the water resistance of electronic devices, lighting fixtures, electric cabinets, automotive components, and more. It enables comprehensive testing under controlled conditions using oscillating tubes and high-pressure jet nozzles — covering IPX3, IPX4, IPX5, and IPX6 testing requirements.
Whether you’re in R&D, production, or quality assurance, this equipment helps evaluate and improve product design, enhance safety, and ensure compliance — all in one robust system.
Technical Parameters
| Inner Chamber Size | L1000*W1000*H1000mm |
| Outer Chamber Size | L1480*W3800*H1800mm |
| Turntable Diameter | ￠400mm |
| Turntable Maximum Load Bearing | 10KG |
| Turntable Speed | 1-5r/min (adjustable) |
| Turntable Rotation Method | Always positive / positive and negative alternate |
| Flow Adjustment Method | Manually adjust flow by adjusting flow meter on the panel |
| Test Time | 0-999 min |
| Power supply for sample |
Configured with a waterproof socket inside the chamber for client to power on sample during test
|
| Equipment dimensions | Approx.2770mm(L)*1330mm(W)*1750mm(H) |
| Total Weight | Approx. 350kg |
| Required site place | 3.2m(L)*2m(W)*2m(H) |
| IPX34 Oscillating Tubes Parameters | |
| Oscillation Tube | R200 mm and R400mm |
| Distance between Nozzle Sample | Within 200mm |
| Spray Aperture Spacing | 50 mm |
| Oscillating Tube Swing Angle |
±60° (IPX3), approximately ±160°(IPX4) (Note: standard requires IPX3:120°; IPX4: almost 360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved) |
| Angle Between Two Holes |
120°(IP3) 180°(IP4) |
| Needle Hole | φ0 .4 mm |
| Oscillating Speed | IPX3: 15times/min; IPX4: 5times/min |
| Water Flow of Each Hole | 0.07 L/min +5% |
| Spray Pressure | 80-150Kpa |

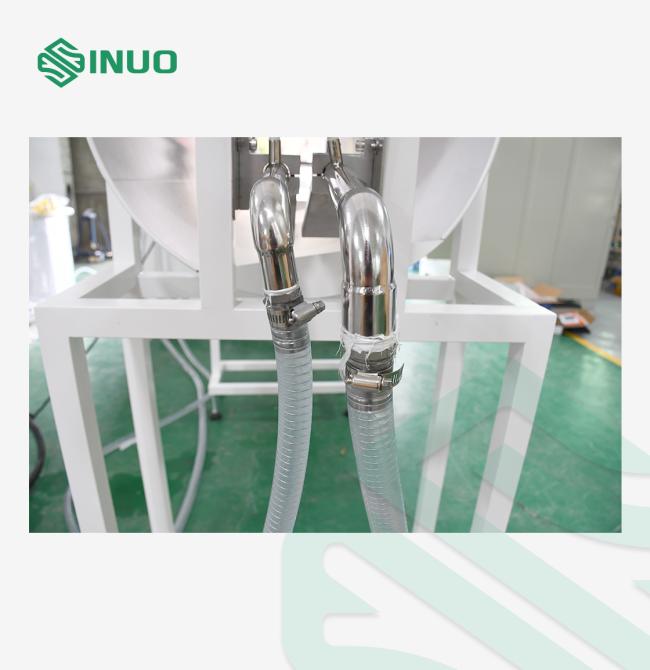

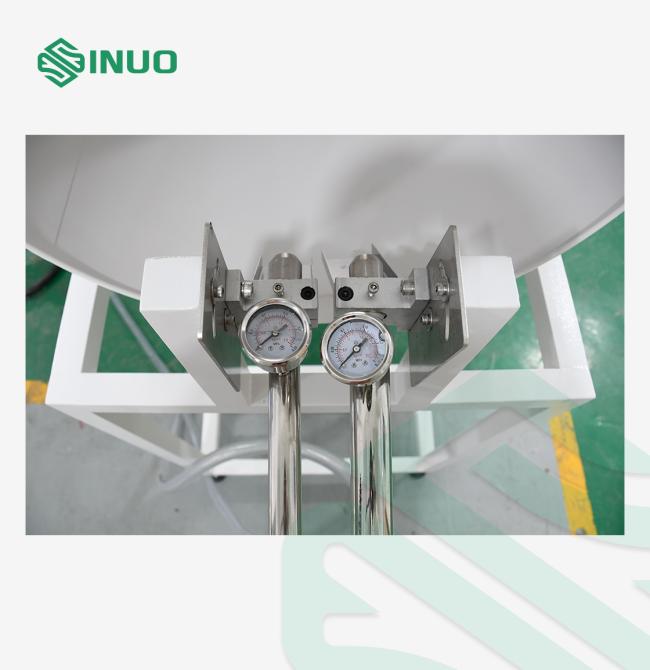

Details
