IEC 62196 Electric Vehicle Connector Couplers Over-pressure Test System
IEC 62196 Electric Vehicle Connector Couplers Over-pressure Test System
Complied Standards & Clauses
Conforms to IEC62196-3 clause 101.6.
Equipment Overview
This overpressure test system is designed to meet IEC 62196-3-1 Clause 101.6 requirements. It conducts pressure leakage testing for liquid coolant systems up to 10 L, ensuring reliable sealing performance.
Equipped with a high-pressure booster pump, the system verifies the pressure resistance of each sample according to its rated specifications. The setup includes an electrical control unit, precision pressure regulation system, and water tank, with test samples manually installed and connected for accurate and repeatable testing.
Technical Parameters
| Volume size | Less than 10L |
| Electrical control method | Computer intelligent control and operation |
| Water tank dimensions |
WDH=500×500×1000mm With transparent viewing window for observe bubbles |
| Pressure control accuracy | +1% of the upper limit of the test pressure value, -1% of the lower limit |
| Display accuracy | 0.1 Bar |
| Test medium | Dry air |
| Power supply | AC 220V, 60Hz, 0.3KW |
| Pressure control method | Computer control |
| Boost rate | Adjustable, non-uniform linear |
| Pressure hold time | 0-9999s arbitrarily set, with seconds as the time unit, computer display |
| Test process | Boost-hold-relief |
| Drive air pressure | 0.2-0.8MPa |
| Test pressure | 1.0-10.0Bar, booster pump drive |
| Computer |
Intel i5 4 G memory (or above) 512G SSD,Windows7 operating system and OFFICE processing software, with RS232 communication interface |
| Standard output Interface |
ZG1/4 internal thread User should consider the connection between our ZG1/4 internal thread to tests samples |
| Pressure curve display | Real-time display, data collected by software |
| Test data storage | Can save reports in excel form |
| Test station | Single station |
| Safety protection | |
| Power | Leakage protection, overload and short circuit protection |
| Motor | Overload, short circuit protection |

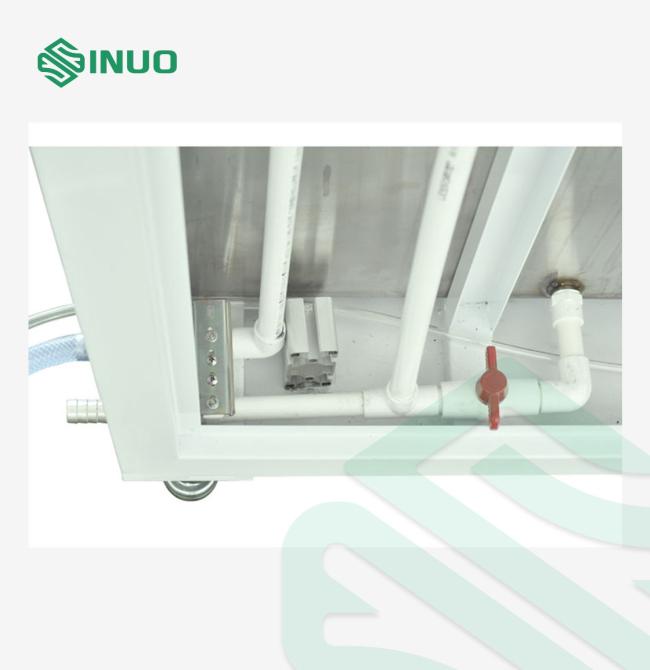

Details:
