IEC 60529 IPX8 Test Chamber Immersion Test Equipment for Automotive Component
High Pressure Water Tank IPX8 Immersion Test Equipment IEC 60529
Complied Standards & Clauses
Conforms to IEC 60529:2013 IPX8 etc.
Product Overview
This test is applicable to electrical and electronic products that are waterproof and may be subjected to immersion in water during transportation or use. The test specimens are immersed in a water tank to a specified depth and subjected to a specified pressure. After the test, the extent of water ingress and any changes in performance are examined.
Technical Parameters
| Inner diameter of the tank | 350mm |
| Height inside the tank | 590mm |
| External dimensions of the tank | Approximately 360mm in outer diameter * 900mm in height |
| Stainless steel tank thickness | 5mm |
| Time control | 1～99999S |
| Pressure management methods | Manual adjustment |
| Pressure display method | The touchscreen display allows for pressure setting and pressure display via the touchscreen. |
| Pressure gauge adjustment range | Atmospheric pressure to 500 kPa (1–50m water depth) |
| Maximum limit pressure | The settings are configurable at the factory. It features pressure switch protection, typically set to automatically vent when the pressure reaches 550 KPa. |
| Pressure protection | Spring-loaded safety relief valve; Program control: If the pressure exceeds the upper limit, the system immediately shuts down and releases the pressure. |
| Pressure release method | Automatic pressure release after the test is completed. |
| Lid opening method | Manual opening and closing |
| Pressurization system | External air supply (to be provided by the user, ≥ 5 kg) |
| Control system | Touch screen control |
| Container material | 304 stainless steel |
| Features | This water immersion test device is equipped with a pressure protection and explosion-proof device and a drainage and pressure relief device. |
| Safety and protection system | Alarm sound notification |
| Equipment usage conditions | |
| Drain pipe diameter | Please plan the equipment placement carefully, and install the circuit breaker nearby in advance. The drain pipe should be installed below the circuit breaker, and the drain pipe (1/2 inch pipe) should be installed close to the ground. |
| Power requirements |
AC 220-240V, 50Hz±10%; Power: 1KW; Install a separate 16A circuit breaker; the circuit breaker must have terminal blocks, and the power cord must be ≥2.5㎡ |
| Environmental conditions |
Temperature: 15℃ to 35℃; Relative humidity: 25% RH to 75% RH; Atmospheric pressure: 86 kPa to 106 kPa |
| The pressure gauge reading corresponds to the water depth |
0.1MPa=1Kg/cm²=10M； 0.2MPa=2Kg/cm²=20M； 0.3MPa=3Kg/cm²=30M； 0.4MPa=4Kg/cm²=40M； |

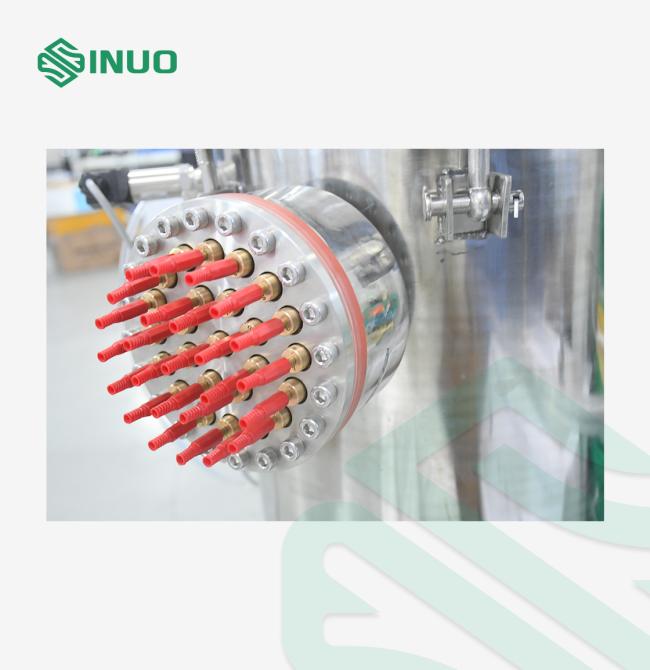

Details
