Vehicle Run-Over Resistance Test Equipment for Plugs & Connectors IEC 62196-1
Vehicle Run-Over Resistance Test Equipment for Plugs & Connectors IEC 62196-1
Product information:

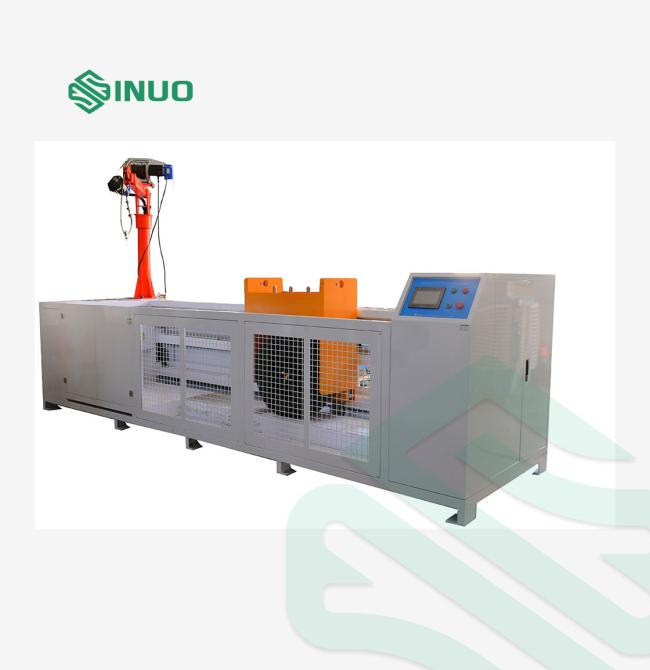

The test equipment is used to check whether a plug or vehicle connector shall have adequate resistance to damage from being driven over by a vehicle, unless it is provided with a cable management system which prevents the accessory from being left on the ground.
Compliance Standards:
- Conforms to IEC 62196-1: 2022 clause 33, UL 2594:2016 clause 58.
Technical parameters:
| Test station | Single station |
|---|---|
| Electrical control method | PLC intelligent integrated control, 7-inch color human-machine touch interface operation |
| Operation mode | Program-controlled operation or manual, can be switched |
| Drive over power system | Motor plus worm gear acceleration and deceleration |
| Drive over stroke | 0~2.0m |
| Load Carrying |
A. Crushing force (5000±250) N B. Crushing force (11000±550) N C. Crushing force 4893 N (1100 lbf) |
| Drive over speed | (8±2)km/h, speed adjustable by motor |
| Drive over method | It is driven by a linear motor module to simulate the forward and backward reciprocating motion of rolling tires. This simulates the damage caused by accidental crushing of the charging nozzle head of the charging pile when the car is moving forward or reversing in reality. |
| Rolling force adjustment | Using weights, the force range is 4890~11000N adjustable, and the weights are loaded and unloaded by cantilever crane. |
| Drive over tires |
|
| Drive over tire pressure | (220±10) kPa or (218±13)kPa |
| Load bearing base plate | Base plate with cement/concrete floor, can be equipped with fixing clamps. |
| Timing count display | Touch screen design parameters can be set within standard requirements. |
| Deceleration method | Our company has designed a braking mechanism to prevent rigid collisions. |
|
Safety protection |
|
| Usage environment |
Power supply: Three phase AC480V±10%/60Hz, power 15KW Overall dimensions: approximately W4700*D1300*H3000mm; weight: approximately 2400kg |
