UV Weatherproof Test Chamber for Accelerated Material Aging ASTM G154
Price:
Negotiable
MOQ:
1
Delivery Time:
30 days
Brand:
Sinuo
Product Description
UV Weatherproof Test Chamber for Accelerated Material Aging ASTM G154
Product Overview
The UV Weatherproof Test Chamber is designed and manufactured according to the standard requirements of ISO 4892-82, ASTM G154, ISO 4892-3, ISO 11507, ASTMD 4329, and others. This chamber simulates the hazards caused by sunlight, rain, and dew exposure. It utilizes fluorescent UV lamps to simulate sunlight effects and condensed moisture to replicate rain and dew conditions. Test materials are placed at specific temperatures and subjected to alternating light and moisture cycles in programmed sequences.
The testing process, which can take from days to months, reproduces outdoor environmental hazards including: fading, discoloration, loss of gloss, chalking, cracking, turbidity, bubbles, embrittlement, strength loss, and oxidation. UV test data assists in new material selection and formulation durability evaluation for various industries including coatings, inks, paints, resins, plastics, rubber, printing and packaging, aluminum profiles, adhesives, automotive, motorcycle, cosmetics, metals, electronics, and electroplating.
Main Technical Parameters
| Parameter | Specification |
|---|---|
| Model | SN882B |
| Sample Placement Area | Chamber type WDH=1140*600*500(mm) |
| Sample Size | WDH=1100*600*500(mm) Inner size sample |
| Shape Space | Approximately 1400*1750*750(mm) W×H×D |
| Center Distance in the Lamp | 70mm |
| Distance Between Test Surface and Lamp Center | 50±3 mm |
| Nozzle Quantity | Top row 4 pcs |
| Spraying Pressure | 70～200Kpa adjustable |

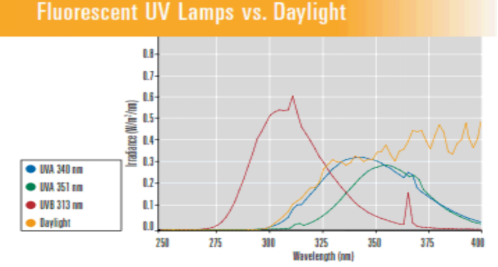

| UV-B Lamp Irradiation Distribution | Standard machine irradiation intensity 0～0.9 W/m² at 313nm, adjustable |

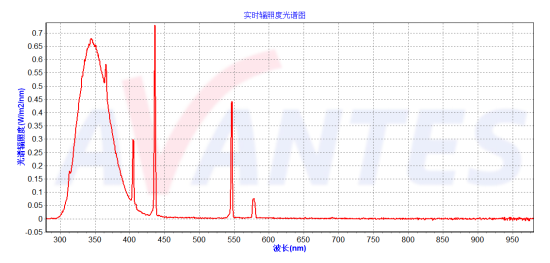

| UV-A Lamp Irradiation Distribution | Standard machine irradiation intensity 0～0.9 W/m² at 340nm, adjustable |
| Lamp Length | 1220mm |
| Lamp Power | 40W |
| Lamp Lifespan | More than 1600 hours |
| Number of Lamps | 8 pcs lamps in the top row |
| Weight | 80 kg |
| Maximum Power | 3 KW |
| Maximum Current | 15A |
| Power Supply Conditions | AC 220V single-phase two-wire with protective grounding; voltage fluctuation range ±10%V; frequency fluctuation range 50/60Hz; TN-S or TT power supply; protective grounding resistance less than 4Ω |
Note: Customers can select either UV-A or UV-B lamps when placing an order. If no specific instructions are provided, the default configuration will be UV-A lamps.
Performance Indicators
| Parameter | Specification |
|---|---|
| Operating Environment Conditions | Values measured at ambient temperature +25℃, relative humidity ≤85%, no test sample in chamber |
| Temperature and Humidity Range | Irradiation temperature: 50～70℃ Condensation temperature: RT～60℃ Spraying temperature: room temperature Relative humidity: Condensation cycle ≥85%RH; Irradiation cycle ≤75%RH |
| Main Technical Parameters | Temperature resolution: 0.01℃ Temperature deviation: ±1℃ Temperature uniformity: 2℃ Temperature fluctuation: ±1℃ |
| Heating Rate | Irradiation temperature RT→+70℃ ≤45 min Condensation temperature RT→+60℃ ≤45 min |
Structural Characteristics
- Chamber Structure: Inner chamber made of SUS304# stainless steel; outer chamber made of painted steel plate
- Irradiation System: Lamp tubes evenly arranged on both sides for uniform sample irradiation
- Water Tank: 25mm depth with controllable water level
- Sample Frame: Stainless steel welded construction with spring buckle fixation for easy installation
- Mobility: Fixed casters and casters installed at bottom for easy movement and positioning
- Water Supply: Manual or automatic mode selection available
- Heating System: Special isolation type radiation heating device and air supply system for uniform heat distribution
- Condensation: Test sample surface directly constitutes inner chamber wall for enhanced condensation
- Spray System: Specially made spray device with automatic spray head and adjustable water pressure
- Chamber Cover: Two-way flip cover design for easy opening and closing
Control Panel & Components
- Control Panel: Power switch, alarm, radiation accumulation timer, radiation ammeter, radiation intensity adjustment knob, controller
- Power Distribution Control Cabinet: Cooling fan, distribution board, controller

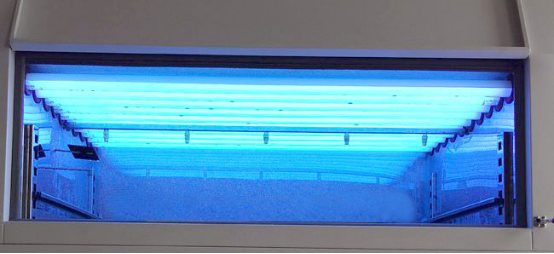

- Lamp Arrangement:
![UV test chamber lamp arrangement diagram]()
System Components
- Radiation Heating System: Scale-type heating tube, multi-wing centrifugal fan air supply loop, temperature controller with contactless SSR output control
- Condensation Heating System: Steam heating method with nickel-metal alloy heating tube and P.I.D control
- Water Supply System: Manual and fully automatic control systems with water pipe connection
- Drainage System: Drain valve control with manual drainage and automatic over-water overflow control
- Spray System: Booster pump for water pressure control with fully automatic timing and cycle control
Electrical Control System

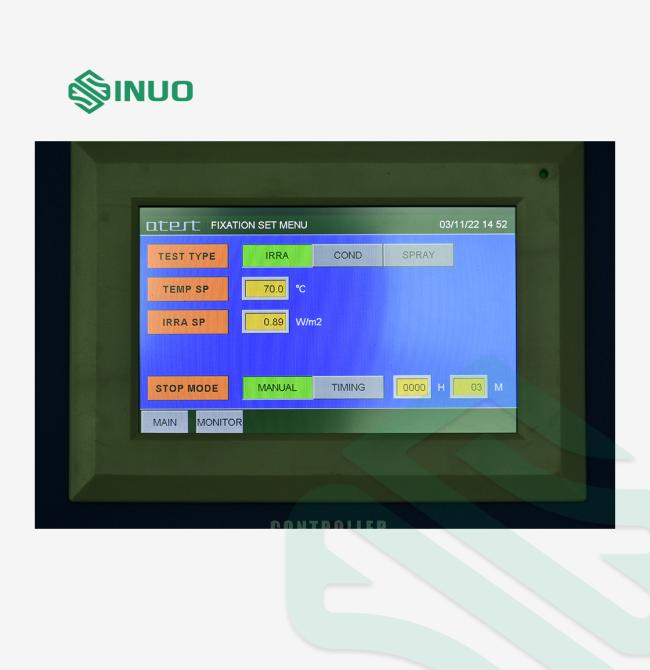

- Controller: Imported LCD touch screen temperature controller (Q-TEST) for irradiation temperature, condensation temperature, timing, and cycle control
![UV test chamber controller interface]()
- Irradiance Meter/Solar Eye: Model TEMI-UVI with detection wavelength range 200nm-480nm, measurement range 0.4-1.6 W/m²
- Temperature Input: Human Machine Interface with touch input
- Program Capacity: Maximum 120 groups, 1-99 segments per program, 1200 segment memory capacity
- Communication: RS-232 interface for monitoring and remote control system
- Operation Modes: Programming method / Fixed value method
- Power Off Memory: Hot start/cold start/stop recovery modes
- Scheduled Startup: Programmable automatic startup timing
- Curve Recording: 60-day maximum recording time with 1.5-minute sampling cycle
Safety Protection Systems
- Test Chamber: Extreme over-temperature protection, water shortage protection
- Booster Pump: Water shortage protection, water pressure over-high protection
- Heating System: Heating pipe dry burning protection, water supply abnormality, drainage abnormality
- Power System: Leakage protection, overload and short circuit protection
