IEC62196 Electric Vehicle Screwed Glands Torque Test Apparatus

Complied Standards & Clauses

IEC 62196-1Ed.4CDV: 2020 "Plugs, Socket - Outlets and Couplers for Industrial and Similar Applications, and For Electric Vehicles" clause 26.5, table 15.

Equipment Overview

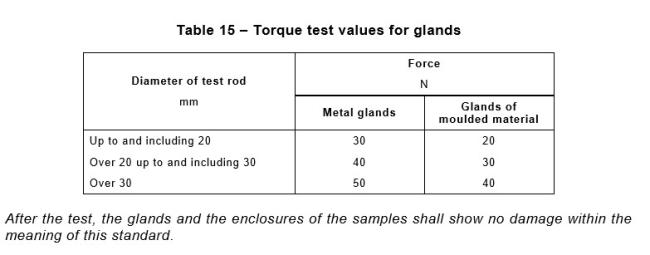

This screwed gland tester conforms to IEC 62196-1Ed.4CDV 2020 clause 26.5, table15.

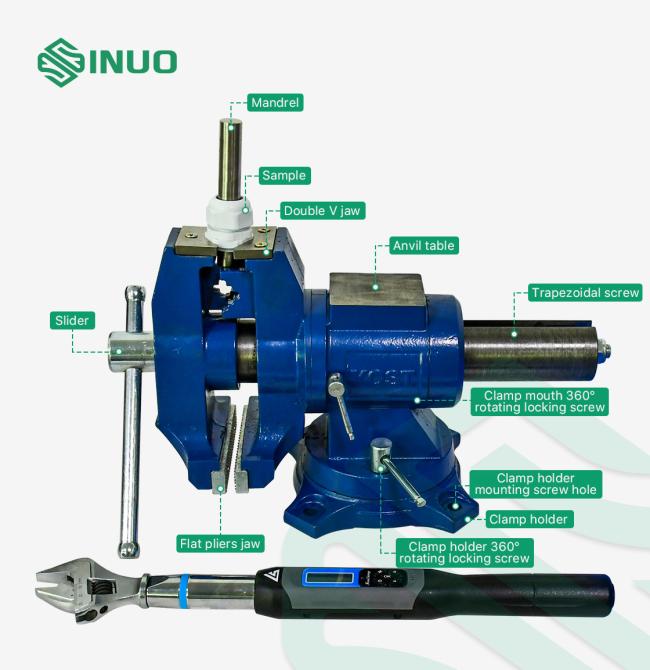

Based on the above table, the torque range is 5N.m to 12.5N.m. As per client’s requirements, the torque needs up to 50N.m, so there are equipped two sets of the torque wrenches : one is 1.5~30N.m, the other is 6.75~135 N.m. The whole testing equipment showing as following:

1. Torque wrench 1.5-30 N.m:

2. Torque wrench 6.75-135 N.m:

3. Vice:

4. Mandrels

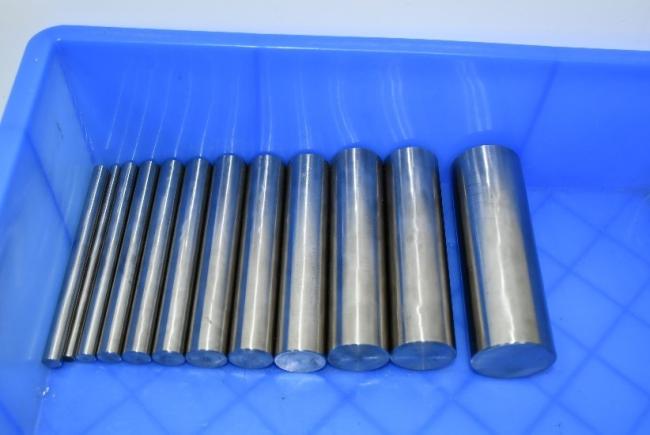

cylindrical metal rods (Ф5,Ф7,Ф9,Ф10,Ф12,Ф14,Ф16,Ф18,Ф20,Ф22,Ф25,Ф30,Ф32,Ф40mm). If required rods’ diameter are not included, please contact us for customization.
