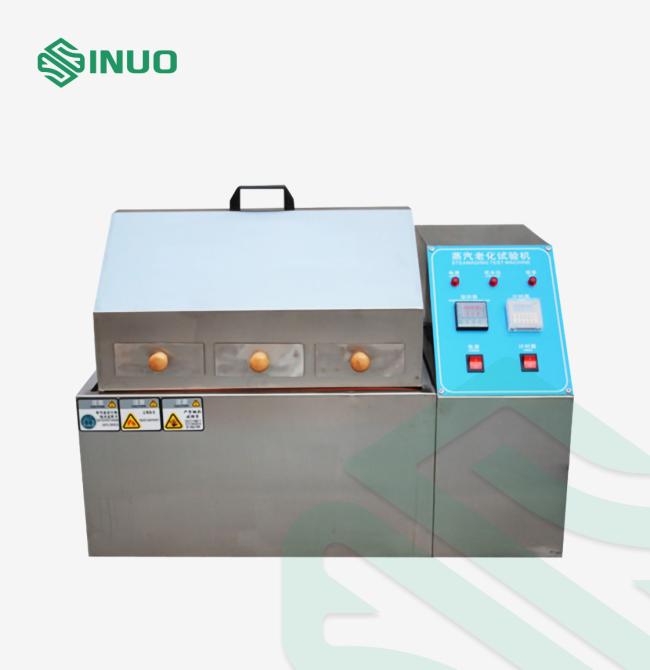

IEC 62196 Electric Vehicle Air Saturated Test Chamber 304 Stainless Steel

IEC 62196 Electric Vehicle Air Saturated Test Chamber 304 Stainless Steel

Complied Standards & Clauses

IEC 62196-1 Ed.4CDV 2020 clause 30.

Equipment Overview

This air saturated test chamber is required by IEC 62196-1Ed.4CDV 2020 clause 30. It is used to process further rusting in saturated water vapor for plugs, screws and other metal components after being soaked in ammonium chloride water.

Chamber features:
1. Adopt microcomputer temperature controller. +, M. +. Control LED digital display.
2. Adopt platinum temperature sensor (PT-100), and temperature is precisely controllable with resolution ability 0.1℃.
3. Water vapor test target can be set and controlled, steam test operation timing can be set and controlled.
4. Inner chamber stainless steel material: SUS#316 full argon welding, and outer chamber: SUS#316 material.

5. Fully automatically control.

Technical Parameters

Applied Standards	IEC 62196-1 Ed.4 CDV 2020
Applied Clauses	Clause 30
Vapor Temperature	(20±5)℃
Timing Device	0.1～999.9s/m/h
Response Time	Up to 99% within ≤1min
Box Material	SUB304 stainless steel
Test Space	W250mm×D200mm×H200mm
Input Power	Customized
