94v0 FR4 High TG PCB Fabrication Assembly Multilayer HDI PCBA Electronics
94v0 FR4 High TG Pcb Fabrication Assembly Multilayer HDI PCBA Electronics
Bom smt PCBA Assembly 94v0 FR4 High TG Multilayer HDI PCB Board Manufacturer in china

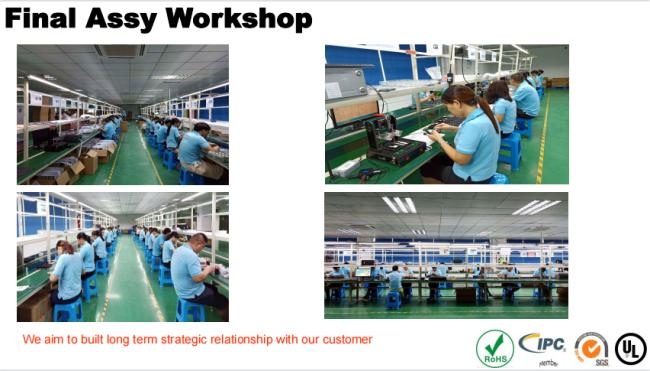

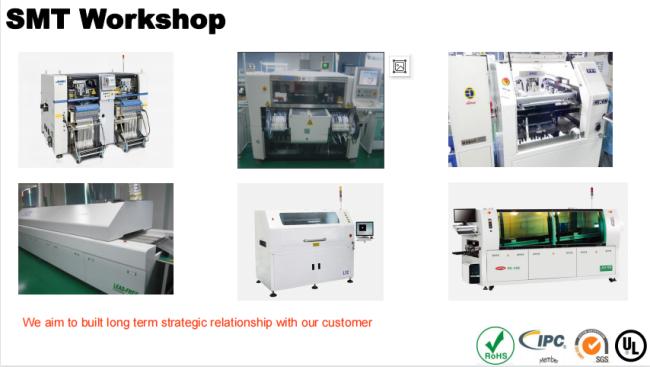

Factory Introduction
Leadsintec PCB Manufacturing Capability
| Surface processing: | HASL / Plating gold / immersion gold / Plating gold finger / OSP / Flux |
|---|---|
| Layers: | 1~32 layers |
| Copper Thickness: | O.5OZ~5OZ |
| Board Thickness: | 0.2mm~6.0mm |
| Min Hole Size: | 0.2mm |
| Min Line Width: | 0.1mm |
| Min Line Spacing: | 0.1mm |
| Max board Size: | 508mm*609mm |
| Solder mask type: | Green / Black / Red / Yellow / White / Blue… |
| Silkscreen color: | White / Yellow / Black |
| Data file format: | Gerber file and corresponding drilling file, PROTEL series, BOM list |
| Base material: | FR4, CEM3, PTFE, Aluminum based, High TG FR4, High-frequency board, Rogers |

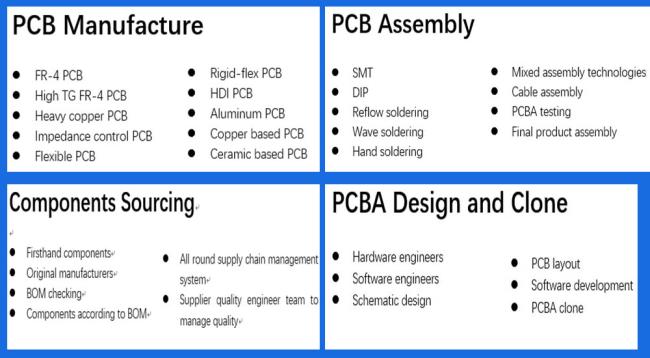

What Can We Do?
Our Criteria/Kits for QA and Workmanship
FAQ
01: Could you please provide more details about this product?
A1: Kindly please send us your PCB Gerber files and requirements, so that we can prepare quotations for you. All PCB products are customized uniquely according to specific designs and requirements from different customers. This product is manufactured for other customers, but may not be suitable for your project.
02: Could you please provide the price matrix?
A2: Kindly please send us the PCB documents and we will prepare quotations for your case by case, in order to offer correct prices for you. And the quotation would be ready very soon. The price is depended on many factors, like the board material, board thickness, copper thickness, surface finish, and even minimum hole diameter, hole quantity, minimum trace width & clearance, and so on.
Q3: What are the common freight terms or international commercial terms or incoterms?
A3: Usually we offer EXW, FCA, FOB, CIF, and DDU terms, and the default term on the quotation is FCA Shenzhen if no special requirement is provided. Kindly please mention the terms when you have any requirements.
Q4: What are the shipping modes?
A4: Usually it includes courier, air shipment, rail shipment, and ocean shipment. For samples and small quantity orders, usually shipped by courier. For medium quantity orders, usually shipped by air shipment or rail shipment.
05: Which courier companies do you work with?
A5: We worked with courier companies including DHL, FedEx, UPS, TNT, and EMS.
Q6: What is the payment term?
A6: It is TT in advance at the beginning and negotiable in the future.
Q7: What is the lead time or production time?
A7: For sample orders, it is 5-7 days. For small quantity orders, it is 7-10 days. For medium quantity orders, it is 10-15 days. For large quantity orders, it is 15-30 days.
Q8: Do you offer quick turn or expedite service?
A8: Yes, we offer quick turn or expedite or short lead timer production service. But the main business is medium to large quantities orders. Quick turn service production is a small part of Our business.
Q9: What kind of certificates do you have?
A9: We have ISO 9001 and UL certificates. Q10: How do you pack the PCB boards? A10: The PCB boards are packed in a vacuum package with a drying agent inside each package. And the outer cartons are natural blank paper cartons with labels indicating part number, quantity, and date. The content and format of labels can be customized according to your requirements.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
