Double Sided SMT Printed Circuit Board Assembly High TG FR4 Halogen Free
Double Sided SMT Printed Circuit Board Assembly High TG FR4 Halogen Free
1-40 SMT PCBA Assembly Layers circuit board pcb pcba SMT assembly
Product Description
|
Base Material
|
FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
|
|
Surface treatment
|
HASL, HASL lead-free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…
|
|
Solder mask
|
Double-sided green LPI,Also support red, white, yellow, blue, black
|
|
Design file format
|
Gerber RS -274X, 274D, Eagle, and AutoCAD's DXF, DWG
|
|
Leading Time
|
||
|
Layer
|
Quick Turn/Usual Time
|
Mass production
|
|
2L
|
24hours/ 4-5days
|
8-10days
|
|
4L
|
48hours/ 6-7days
|
10-12days
|
|
6L
|
72hours/ 7-8days
|
12-14days
|
|
8L
|
72hours/ 8-10days
|
16-18days
|
|
10L
|
96hours/ 12-14days
|
18-20days
|
|
For More Information, welcome to Email us!
|
||

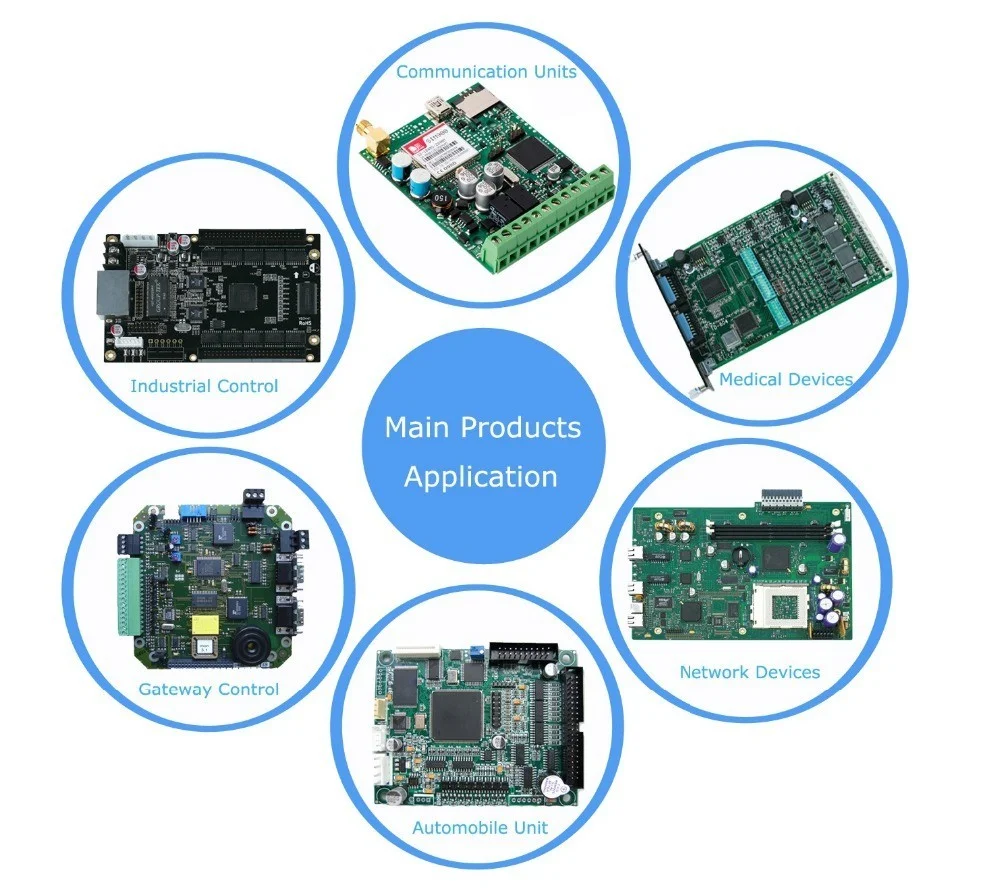

What Can We Do?
Our Criteria/Kits for QA and Workmanship
FAQ
Q: Are my design files secure when I send them to you?
A: Your files are held in complete safety and security. Your files are never shared nor will any third parties have access to your design files. Leadsintec can sign a Non-disclosure agreement before sending files.
Q: For small quantity orders, can you produce prototype PCBs?
A: Yes, Leadsintec PCB can produce prototypes. but the greater the quantity, the greater the cost savings.
Q: Do you have after-sales product servicing available for your customers?
A: Yes, for any quality problems Leadsintec PCB will take our responsibility to solve them for you at any time. What we can always guarantee is our best service, high quality with competitive price.
Q: What're files do you need in the PCBA projects?
A: Exclude the PCB file, the PNP(Pick and Place) file, and the Components Position file also needed.
Q: Does our product will be tested before shipment?
A: Yes, we could provide Function Circuit Testing if you provide us the testing methods.
