HASL SMT PCBA Assembly
HASL Electronic SMT PCBA Assembly
Competitive Electronic SMT PCBA Assembly Manufacturer in China,PCB Fabrication and SMT PCBA Assembly
PCBA Capability
| SMT Lines | 13 Lines |
| Capacity | 8 Million Placements Per Day |
| Max Board Size | 680*550mm Smallest:0.25"*0.25" |
| Min Components size | 0201-54 sq.mm (0.084 sq.inch),Long Connector,CSP,BGA,QFP |
| Speed | 0.15sec/chip, 0.7sec/QFP |
| Wave-Solder | Max.PCB Width:450mm |
| Min.PCB Width:unlimited | |
| Components Height:Top 120mm/Bot 15mm | |
| Sweat-Solder | Metal Types:Part,Whole,Inlay,Side-step |
| Metal Material:Copper,Aluminum | |
| Surface Finish:Plating Au,Plating Silver, Plating Sn | |
| Air Bladder Rate: less than 20% | |
| Press-fit | Press Range:0-50KN |
| Max.PCB Size:800*600mm | |
| Assembly Types | SMT and Thru-hole |
| Solder Type | Water Soluble Solder Paste, Leaded, and Lead-Free |
| File Formats | Bill of Materials, Gerber Files, Pick-N-Place Files(XYRS) |
| Type of Service | Turn-Key, Partial Turn-Kye, or Consignment |
| Component Packaging | Cut Tape, Tube Reels Loose, Parts |
| Turn Time | 1-15days |
| Testing | XRAY Inspection, AOI Testing ICT, Flying Probe, Burn-in, Function Test |
Detailed terms for PCB assembly:
* Technical requirement:
1. Professional surface-mounting and through-hole soldering technology
2. Various sizes like 1206, 0805, 0603 components SMT technology
3. ICT (in-circuit test), FCT (functional circuit test) technology
4. PCB assembly with UL, CE, FCC, RoHS approval
5. Nitrogen gas reflow soldering technology for SMT
6. High standard SMT and solder assembly line
7. High density interconnected board placement technology capacity

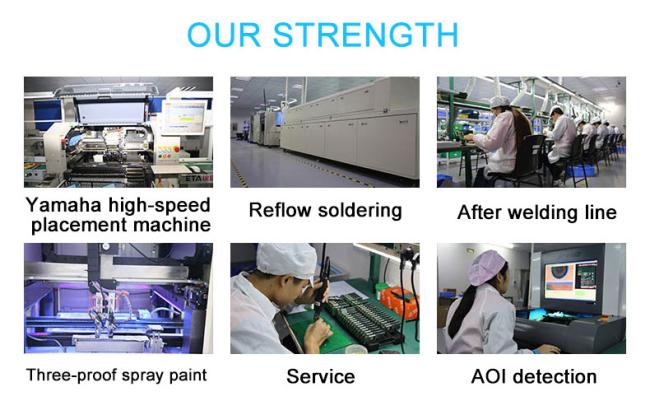

What Can We Do?
Our Criteria/Kits for QA and Workmanship
Inquiry:
1. PCB: Please provide Gerber file for detailed Quote.
2. PCBA: Please provide Gerber file and Bom list.
3. COPY PCB/PCBA: Please provide us the details of PCB. Picture and Sample will be better.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Northern Europe(40.00%),North America(10.00%),Western Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee the quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
PCBA,PCB,Components
4. why should you buy from us, not from other suppliers?
10 years engineer support for RD, electronic SMD, DIP, package process Quality according to ISO9001 In house IPC-610-E process Very good communication and service support
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash,Escrow;
Language Spoken:English,Chinese
