Double Sided 2mm Medical PCBA Rigid Flexible PCB Assembly Services
Double Sided 2mm Medical PCBA Rigid Flexible PCB Assembly Services
Medical PCB Assembly double Sided 0.075mm Rigid Flexible PCB Assembly Services
PCB Manufacturing
As a 20 years PCB manufacturer in China, Leadsintec is providing the latest printed circuit board technologies and highest quality standards for the electronics industry. You can trust us to meet your demands, from small volume to mass production whatever the simplest PCB boards or the most complex.
>> 20 Years Experience

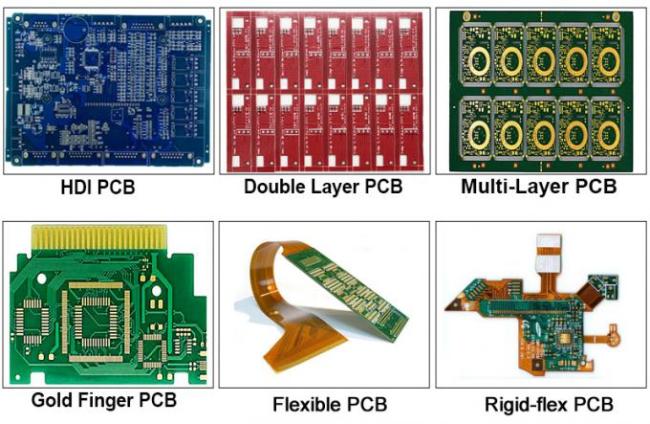

Accept Standard: IPC III, Military, Automotive, Medical, We offer you expanded PCB capabilities: Rigid PCB, Flexible, Rigid-flex, HDI board, High TG PCB
>> Up to 48 layer prototype PCB
Manufacture PCB board up to 56 layers, Raw material: Fr4, Rogers, Arlon, Teflon, Taconic, Nelco, Isola, Ceramic, Metalcore
>> Up to 18 layer mass production
Support PCB surface process: HASL-LF, ENIG, Plating gold, Immersion tin, Immersion silver, ENIPIG, OSP
>> PCB Manufacturing Capability:
| Article | Description | Capability |
| Laminate Materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board Cutting | Number of layers | 1-48 |
| Min. thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Component Sourcing | Yes | |
| Tolerance of PCB | ±5% | |
| Max Size of Finish Board | 700*460mm | |
| MOQ | NO MOQ (1pcs) | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
| Sub-assembly | Plastic,metal,screen | |
| Min Line/Space | 0.075/0.075mm | |
PCB Assembly
Leadsintec is a China PCB assembly manufacturer, who offers complete PCB assembly services in Shenzhen , Leadsintec’s capable of providing turn-key and partial turn-key printed circuit board assembly services.
For full turn-key, we take care of the entire process, including manufacturing of Printed Circuit Boards, procurement of components (100% original), PCBA Testing, continuous monitoring of quality, and final assembly.
>> Flexible Volume Assembly Alternatives:
* Prototype PCB Assembly
* Low-Volume, High Mix PCB Assembly
* High-Volume PCB Assembly
* Consigned & Partial PCB Assembly
* Full Turnkey PCB Assembly
* Cable & Wire Harness Assembly
* Box Build Assembly Services
Leadsintec Detailed Assembly Capabilities Are Listed In the Table Below:
| Feature | Capability |
| Quality Grade | Standard IPC 3 |
| Order Quantity | 1pc - 10,000+pcs |
| Build Time | 1 - 3 days, 1 - 3 weeks, or scheduled deliveries PCB Spec Requirements |
| Max board size | 700x460 mm |

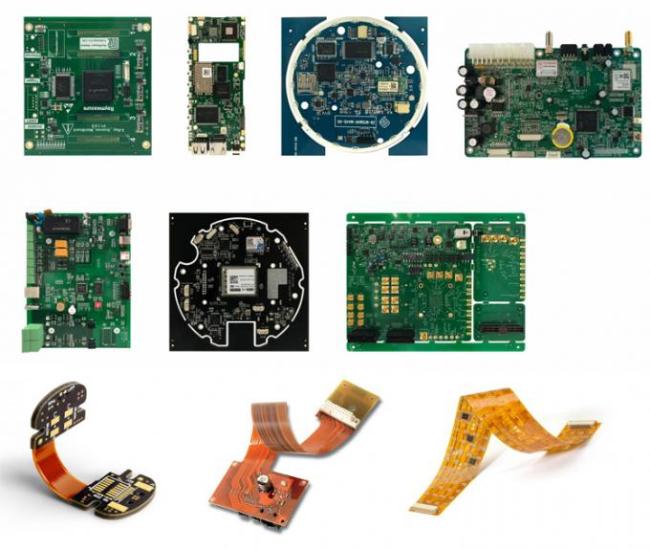

| Board Type | Rigid PCBs, Flexible PCBs, Rigid-flex PCB, Metal core PCBs, HDI PCB, Gold-Plated PCB |
| Surface finish | HASL, ENIG, immersion gold, immersion silver, immersion tin, OSP… |
| Assembly Types | Surface mount Thro-hole Mixed technology (SMT & Thru-hole) Single or double-sided placement Conformal coating Shield cover assembly for EMI emission control |
| Solder Type | Lead-free - RoHS |
| Parts Procurement | full accordance with the customer's designated supplier. Can also help customers reviwe and improve the supply chain |
| Function Test | 100% Functional test |
| PCBA Testing | X-ray,AOI Test,Functional test |
| PCB outline | Square,circle,irregular(with jigs) |
| Sub-assembly | Plastic,metal,screen |
Components Sourcing
We can make purchases in full accordance with the customer's designated supplier. Can also help customers review and improve the supply chain, identify the specifications of electronic components, lower the cost and avoid the introduction of any defective products.
