High Frequency Medical PCB Assembly Flexible Fpc PCB Assembly
Medical PCB Assembly Flexible Fpc Pcb Assembly Services Pcb Printed Circuit Board Manufacturing
Leadsintec Service Type
Leadsintec is a Professional 20 Years One-Stop PCB Solution manufacturer in Shenzhen China. We provide high-quality bare PCB and PCB assembly services, including components sourcing, function test, conformal coating, and complete assembly for clients all over the world.
Leadsintec provides superior service for automotive electronics, medical electronics, military and aerospace electronics, telecommunications, industrial control, smart home, and other industries around the world.
1. Various Materials Bare PCB Manufacturing

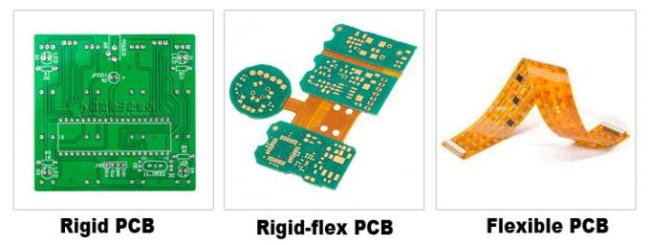

Offering: Rigid PCB; Flexible PCB; Rigid-flex PCB; HDI PCB; Gold-Plated PCB; High-Frequency PCBs; Aluminum PCB; Copper Base Circuit Board; High TG PCB; Heavy Copper PCB... (Customizable)
2. One-stop PCB Assembly Service

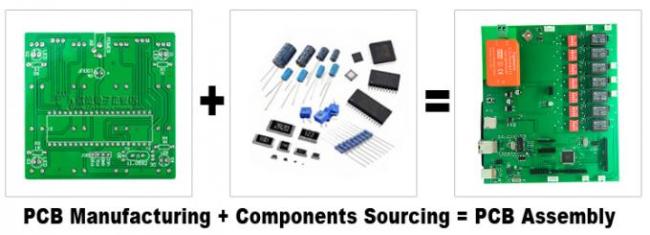

PCB Manufacturing + Components Sourcing + PCB Assembly + Testing.
3. Capability of PCB Manufacturing and Assembly
| Article | Description | Capability |
| Laminate Materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board Cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Component Sourcing | Yes | |
| Tolerance of PCB | ±5% | |
| Max Size of Finish Board | 700*460mm | |
| MOQ | NO MOQ (1pcs) | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
| Sub-assembly | Plastic,metal,screen | |
| Min Line/Space | 0.075/0.075mm |
|

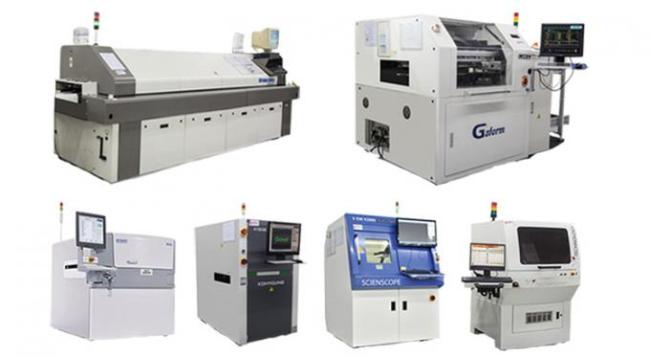

4. Advanced Equipment
Leadsintec has imported advanced machinery from the US, Japan, Germany, and Israel to improve our production and technical ability. We have set a great example in the PCB field of flying probe testing, buried and blind via and special controlled impedance. We have a highly developed R&D division that has helped our factory successfully produce mechanical micro via, high-density impedance, and HDI.
* Solder Paste Jet
* X-RAY
* AOI
* Wave Soldering
* Reflow
* X-RAY Counter
* Surface Mount Machine
* On-line AOI
* MY-500
* SPI
5. We only use world-class branded electronic components.
We can make purchases in full accordance with the customer's designated supplier. Can also help customers review and improve the supply chain, identify the specifications of electronic components and avoid the introduction of any defective products.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
