CEM3 Electronics Customized PCBA Assembly 3.2mm Thickness Immersion Gold
CEM3 Electronics Customized PCBA Assembly 3.2mm Thickness Immersion Gold
Automotive Pcb Pcba Assembly Customized Pcb Printed Board Pcba Assembly Electronics Pcb
Leadsintec is an OEM manufacturer that focus on PCB & PCBA assembly manufacturing for over 20 years. We have the capability to manufacture PCB ranging from basic single-sided boards up to 48 layers and provide one-stop turnkey services, including PCB layout, manufacture, PCB assembly, components source, PCBA function testing services, and so on. We started business in 2004 and always provide high quality, technically advanced products within the customer’s timescales so that we can provide the best electronic services for you. This commitment, combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customer's PCB requirements: –– PCB Manufacturing + Components Sourcing + PCB Assembly + Testing.
Our production capacity
| PCB Item | PCB Manufacture Capacity |
| Layer Counts | 1--48L |
| Base Material | FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B) |
| Material Thickness(mm) | 0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2 |
| Max board size(mm) | 700x460mm |
| Board Outline Tolerance | ±0.15mm |
| Board Thickness | 0.4mm--3.2mm |
| Thickness Tolerance | ±8% |
| Minimum line/space | 0.1mm |
| Min Annular Ring | 0.1mm |
| SMD Pitch | 0.3mm |
| Holes | |
| Min Hole Size(mechanical) | 0.2mm |
| Min Hole Size(laser hole) | 0.1mm |
| Hole Size Tol (+/-) | PTH:±0.075mm;NPTH: ±0.05mm |
| Hole Position Tol | ±0.075mm |
| Plating | |
| HASL/LF HAL | 2.5um |
| Immersion Gold | Nickel 3-7um Au:1-5u'' |
| Surface Finish | HAL, ENIG, Plated Gold, Immersion Gold, OSP |
| Copper | |
| Copper Weight | 0.5--6oz |
| Color | |
| Solder mask | Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue |
| Silkscreen | White, Black, Blue, Yellow |
| Acceptable File Format | Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 |
| Certificate | ISO9001, ISO14001, IATF16949, ISO13485 |

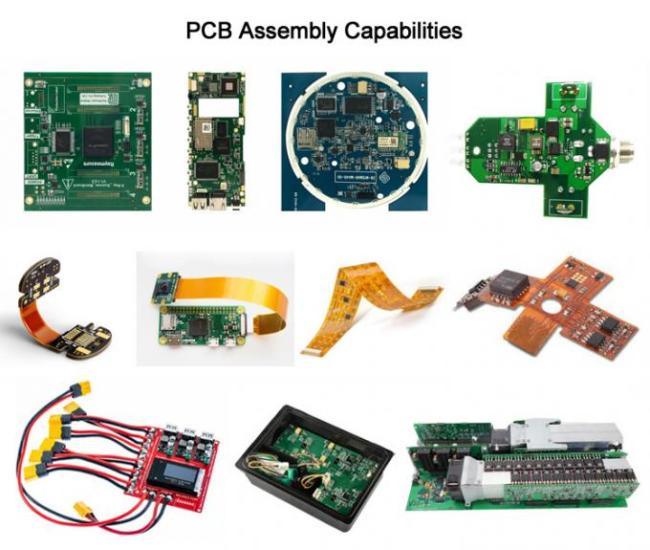

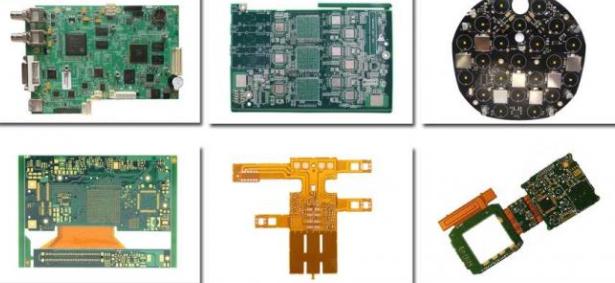

Bare PCB Manufacturing
Offering: Rigid PCB; Flexible PCB; Rigid-flex PCB; HDI PCB; Gold-Plated PCB; High-Frequency PCBs; Aluminum PCB; Copper Base Circuit Board; High TG PCB; Heavy Copper PCB......

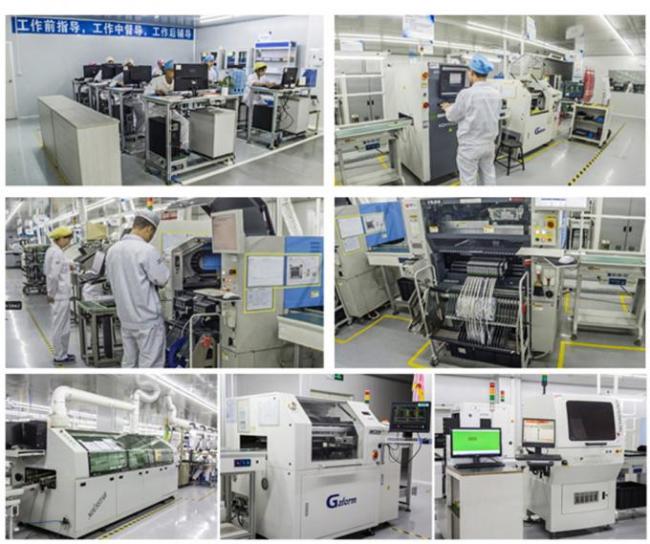

Advanced Equipment
Leadsintec has imported advanced machinery from the US, Japan, Germany and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing, buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via, high-density impedance and HDI.
PCB PCBA Application fields & Customers
We produce PCBs for our customers working in frequency ranges from LED products to communication equipments and in industries as diverse as Medical devices through to automotive, millitary, aerospace and Bluetooth etc.
Leadsintec will continue to maintain the refined management mode, further improve the management mechanism, and strive to create better quality, higher-end products. At the same time, make the company continue to develop in a better direction.
We have a global sales team available to assist you with PCB Manufacturing & PCB Assembly services,Send your PCB files to get better price now !
