High Frequency Prototype Electronic Board Assembly high TG FR4
High Frequency Prototype Electronic Board Assembly High TG FR4
Multilayer High-Frequency Prototype Automotive PCB Assembly Printed Circuit Board PCB for Speaker PCB & Other Boards

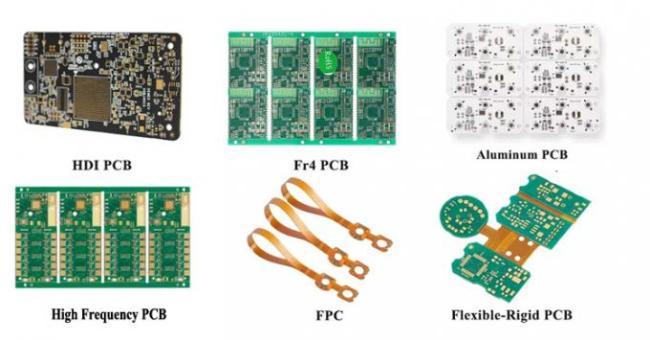

Our PCB manufacturing capabilities enable us to produce a wide range of products, We can make just about any printed circuit board you can think of including HDI PCB, Multilayer PCBs (up to 48 layers), High-tech PCB, Thick Copper PCB, Halogen PCB as standard options, and more special PCBs such as Flex-Rigid PCB, aluminum PCB, and Rogers PCB.
We will continue to upgrade our full-featured PCB services through better equipment and more efficient technology to provide customers with the highest quality full-featured PCB manufacturing and assembly. We will continue to develop and challenge ourselves and adhere to the highest quality and efficiency standards to ensure that we can help your printed circuit board use company achieve the greatest success.

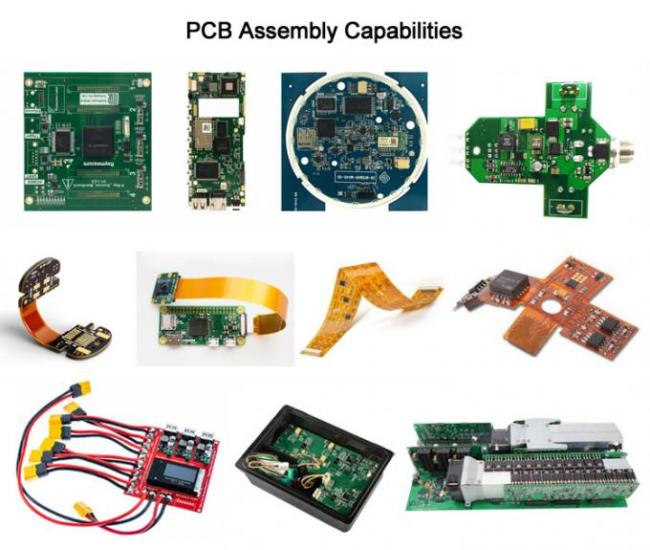

PCB production and assembly capabilities:
| Article | Description | Capability |
| Laminate Materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board Cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearance | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Component Sourcing | Yes | |
| Tolerance of PCB | ±5% | |
| Max Size of Finish Board | 700*460mm | |
| MOQ | NO MOQ (1pcs) | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
| Sub-assembly | Plastic,metal,screen | |
| Min Line/Space | 0.075/0.075mm | |

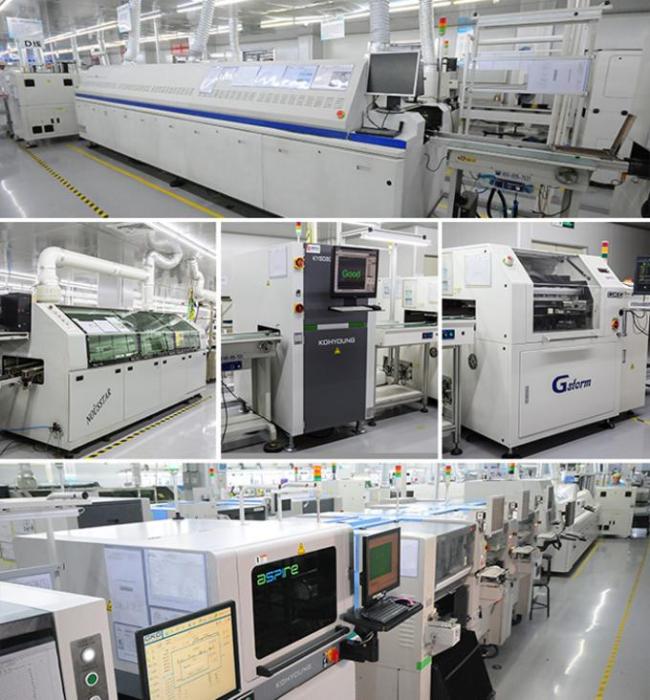

Advanced Equipment
Leadsintec has imported the advanced machinery from the US, Japan, Germany, and Israel to improve our production and technical ability. We have set a great example in the PCB field of flying probe testing, buried and blind via and special controlled impedance. We have a highly developed R&D division that has helped our factory successfully produce mechanical micro via, high-density impedance and HDI.
PCB and PCBA Application:
Our products are widely applied in various fields, including automotive, wireless, telecommunication, computer and storage devices, industrial equipment, aerospace, and medical devices, etc.
