Professional Automotive Electronics PCB Assembly Circuit Board Component Purchasing and Assembly
As a 20 years PCB manufacturer in China, Leadsintec is providing the latest printed circuit board technologies and highest quality standards for the electronics industry. You can trust us to meet your demands, from small volume to mass production whatever the simplest PCB boards or the most complex.
At the same time, Leadsintec is also a PCB assembly manufacturer, who offers complete PCB assembly services in Shenzhen, Leadsintec is capable of providing turn-key and partial turn-key printed circuit board assembly services.

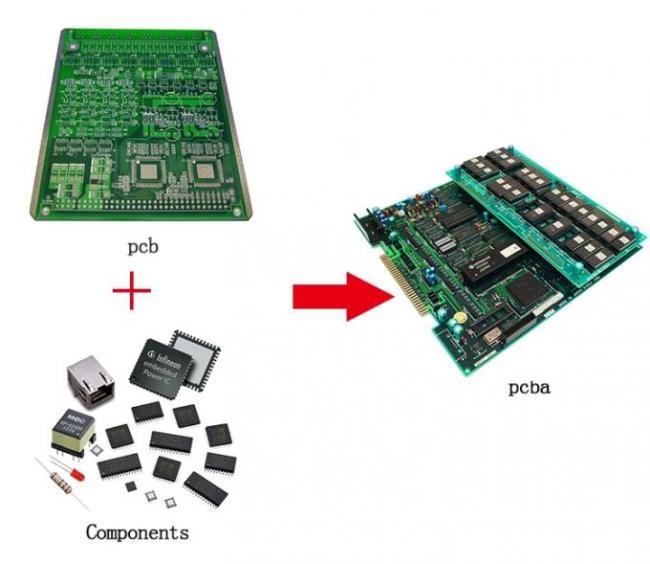

For full turn-key, we take care of the entire process, including manufacturing of Printed Circuit Boards, procurement of components (100% original), PCBA Testing, continuous monitoring of quality, and final assembly.
PCB Production Capacity
Accept Standard: IPC III, Military, Automotive, Medical, We offer you expanded PCB capabilities: Rigid PCB, Flexible, Rigid-flex, HDI board, High TG PCB.
| Layer count | 1-48L,HDI |
| Material | FR-4, High TG FR4, aluminium, FPC |
| Teflon,PTFE (F4B,F4BK), Rogers (4003,4350,5880) | |
| Max board dimensions | 800mm*620mm |
| Board shape | Rectangular,round,slots,cutouts,complex,irregular |
| Board type | Rigid,flexible,rigid-flexible |
| Board cutting | Shear,V-score,tab-routed,counter sunk |
| Board thickness | 0.2~8.0mm, Flex 0.1~0.25mm |
| Thickness Tolerance | ±10% |
| Min line width / space | 3mil/3mil |
| Minimum Drilling Hole (Mechanical) | 0.1mm |
| Minimum laser hole | 0.075mm |
| Blind Hole/buried plate | YES |
| Hole Position/hole Tolerance | PTH:±0.076MM |
| NPTH:±0.05mm | |
| InnerLayer Copper Thickness | 0.5-3 oz |
| OutLayer Copper Thickness | 0.5-4 oz |
| Impedance control tolerance | ±10% |
| Surface finish | HASL,Lead free HASL,ENIG,Immersion Tin,Immersion Silver,OSP... |
| Solder mask | Double-sided green,red,white,blue,black,etc |
| Silkscreen | Double-sided or single-sided in white,black,or negative |
| PCB Testing | E-test, Flying probe test |
| Acceptable File Format | Gerber RS-274X,274D,AutoCAD'S DXF,DWG,Pro-E,Ki-CAD |
| Quality Standards | IPC-A-600F and MIL-STD-105D CHINA GB<4588> |
Flexible Volume Assembly Alternatives:
- Prototype PCB Assembly
- Low-Volume, High Mix PCB Assembly
- High-Volume PCB Assembly
- Consigned & Partial PCB Assembly
- Full Turnkey PCB Assembly
- Cable & Wire Harness Assembly
- Box Build Assembly Services
PCBA Production Capacity:
| Types of PCB assembly | SMT (Surface Mounted Technology) |
| THT (Through Hole Technology) | |
| Mixed (surface mount and through hole) technology | |
| Cable assembly | |
| Component | Passive Component: small as 01005, 0201 |
| BGA, uBGA, QFN, POP, SOP,SSOP,PLCC,LGA | |
| Fine Pitch Parts: 0.25mm fine pitch parts | |
| Max Component Height: 25mm(SMT), Top 120mm/Bot 15mm (Wave-Solder) | |
| Component Package | Reels, cut tape, Tube and tray, Loose parts and bulk |
| Board Dimension | Min Board Size: No Limited |
| Max Board Size: 680 x 500mm | |
| Board Shape | We can assemble boards in Rectangular, Circular and irregular |
| Board Type | Rigid PCB, Flexible PCB, Rigid-flex PCB |
| Assembly process | Leaded Lead-Free (RoHS) |
| Design file format | Gerber RS-274X BOM (Bill of Materials) (.xls, .csv, . xlsx) Centroid(Pick-N-Place/XY file) |
| Electrical testing | X-ray Inspection AOI (Automated Optical Inspection) Functional testing |
| Certificate | ISO13485, IATF16949, ISO9001,ISO14001 |
| Quality Standards | IPC-A-600/IPC-A-610 compliance |
| Type of Service | Turn-key, partial turn-key or consignment |
| Sub-assembly | Plastic case,metal case,screen |

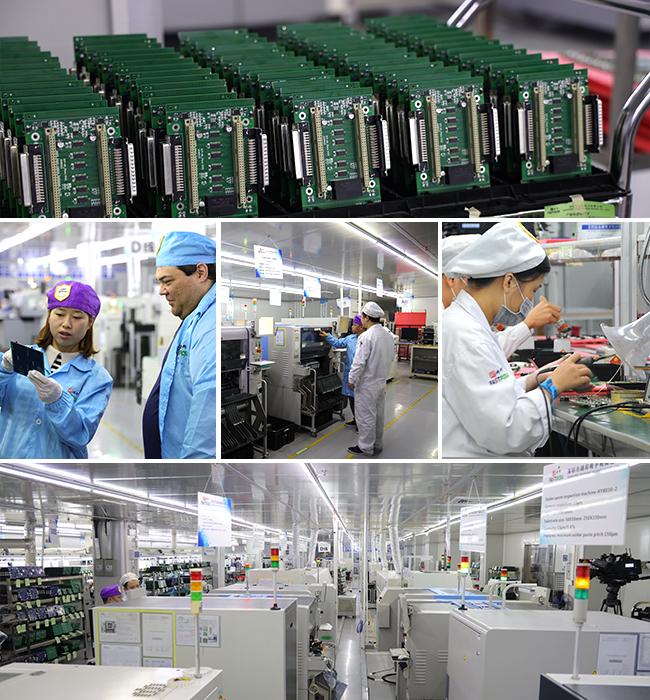

Why Choose Leadsintec?
With 20 years of development, FASPCBA turns into a first-class manufacturer of PCB and PCB Assembly, with a production capability of 35,000 square meters. We provide our customers with PCB solutions and services worldwide. especially more than 80% of printed circuit boards is exported to the overseas market.

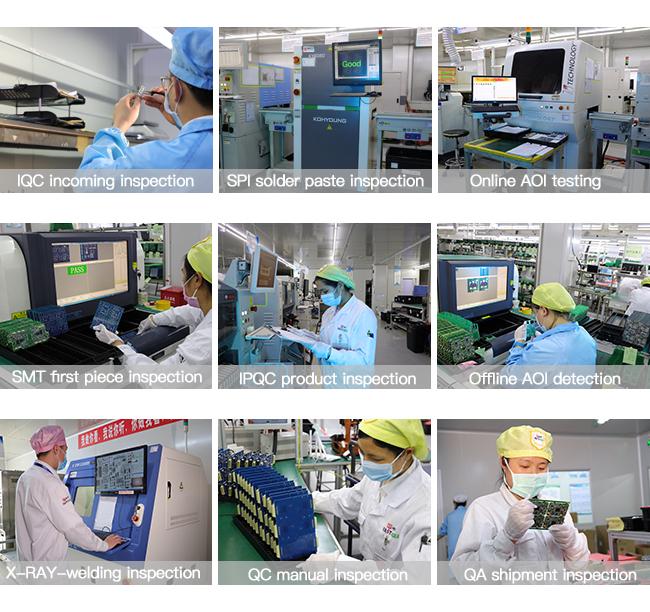

PCBA Testing With Multi-step Verification
Although we are fast on every process, we never ignore the quality, our experienced QC team and highest advanced equipment can make sure your prototypes are good quality and best fully functional.
We offer instant quotes for your turnkey PCB assembly order and you don’t need to wait for long to know how much the order would cost. Also, you can see the real-time status of your project. This helps you to monitor the PCB manufacturing stage. With a single point of contact and flexible services, Leadsintec full turnkey electronics assembly meets the unique needs of small businesses, large corporations, and entrepreneurs. You can upload your GERBER & BOM to receive a quote.
