BLDC Fan Multilayer PCB Board Assembly Double Side High Frequency 4OZ
BLDC Fan Multilayer PCB Board Assembly Double Side High Frequency 4OZ
Multilayer PCB Board Assembly BLDC Fan PCBA Gerber File
PCB production and assembly capabilities:
| Article | Description | Capability |
| Laminate Materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board Cutting | Number of layers | 1-48 |
| Min. thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Component Sourcing | Yes | |
| Tolerance of PCB | ±5% | |
| Max Size of Finish Board | 700*460mm | |
| MOQ | NO MOQ (1pcs) | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
| Sub-assembly | Plastic,metal,screen | |
| Min Line/Space | 0.075/0.075mm | |
Who is Leadsintec?
Leadsintecis one of the world's top turnkey PCB assembly manufacturers. We are the world-leading EMS PCB manufacturer specialize in printed circuit board, PCB assembly, PCB/PCBA prototype in China, and offering turnkey PCB Assembly services including quick turn PCB, component sourcing, cable assembly, comprehensive PCB testing, final package, worldwide shipping etc.
Highlight: Quick PCB | PCB Assembly | Custom PCB
Our products are widely used in medical instruments, industrial control, aerospace, communication, automotive, power electronics LED products, security, and others.
Why Buy Printed Circuit Board From Leadsintec?
* 24 hours production lead-time*
* Team supported with over 100 professionals & technical
* All-round and fast logistics service supportl
* Great quality approved by customers all over the world
* Trusted Experience
* NO MOQ!
* A 24/7 non-stop production and assistance service
* IPC-compliant, implementing ISO9001,ISO14001, ISO13485, IATF16949, 5S and 6Q standards
* The word leading EMS PCB manufacturer
One-stop turn-key PCB assembly services
* SMT and Through-Hole Assembly
* One-stop PCB Assembly
* X-Ray & AOI Testing
* BGA, FPGA,PGA,uBGA,SBGA,WLCSP
* over 98% customer satisfaction
* FreePCB Assembly Quote
Advanced Equipment

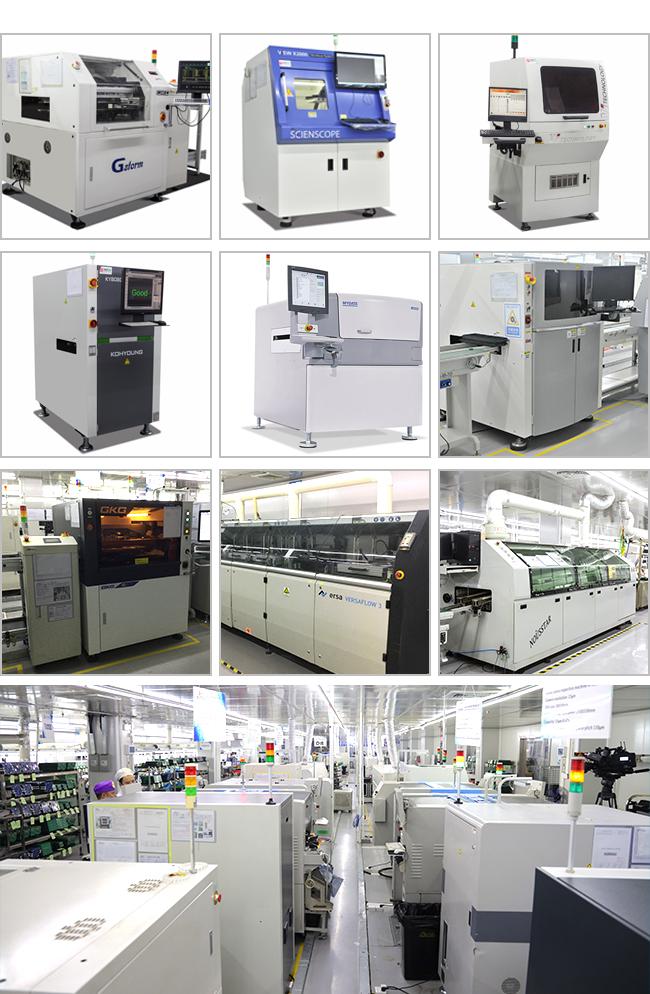

Leadsintechas imported the advanced machinery from the US, Japan, Germany, and Israel to improve our production and technical ability. We have set a great example in the PCB field of flying probe testing, buried and blind via and special controlled impedance. We have a highly developed R&D division that has helped our factory successfully produce mechanical micro via, high-density impedance, and HDI.
We are waiting for your response to move forward next step and offer you the wanted information, product, and service.
