12v Led Driver Multilayer PCB Board
12v Led Driver Multilayer PCB Board
Multilayer Board Pcb Pcba Pcb Board 12v 12v Led Driver Circuit Board Factory Offer Pcb Pcba Service
OEM Services

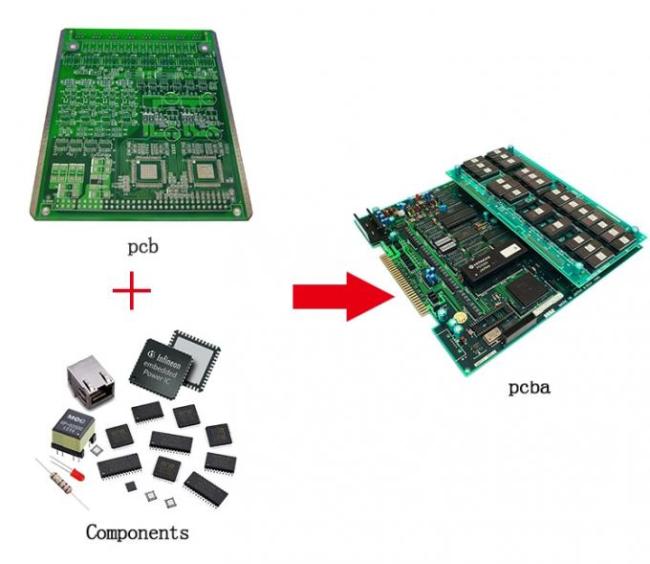

PCBA, PCB assembly: SMT & PTH & BGA
PCBA and enclosure design
Components sourcing and purchasing
Quick prototyping
Plastic injection molding
Metal sheet stamping
Final assembly

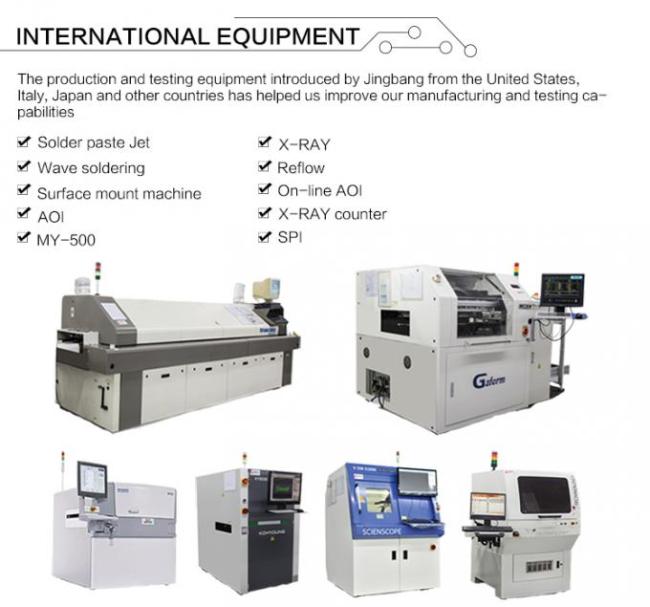

Test: AOI, In-Circuit Test (ICT), Functional Test (FCT), Reliable test
Custom clearance for material importing and product exporting
| Article | Description | Capability | |
| Sercive | PCB and SMT assembly with one-stop service | ||
| Material | Laminate materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board cutting | Number of layers | 1-48 | |
|
Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | ||
| Board thickness | Standard | (0.1-4mm±10%) | |
| Min. | Single/Double:0.008±0.004” | ||
| 4layer:0.01±0.008” | |||
| 8layer:0.01±0.008” | |||
| Bow and twist | 7/1000 | ||
| Copper weight | Outer Cu weight | 0.5-4 0z | |
| Inner Cu weight | 0.5-3 0z | ||
| Drilling | Min size | 0.0078”(0.2mm) | |
| Drill deviation | ±0.002″(0.05mm) | ||
| PTH hole tolerance | ±0.002″(0.005mm) | ||
| NPTH hole tolerance | ±0.002″(0.005mm) | ||
|
Solder mask
|
Color | Green,white,black,red,blue… | |
| Min solder mask clearanace | 0.003″(0.07mm) | ||
| Thickness | (0.012*0.017mm) | ||
| Silkscreen | Color | white,black,yellow,blue… | |
| Min size | 0.006″(0.15mm) | ||
| E-test | Function Test | 100% Functional test | |
| PCBA Testing | X-ray,AOI Test,Functional test | ||
| Pcb assembly | one-stop service electronic manufacxturer service | ||
| Component sourcing | Yes | ||
| Certificate | IATF16949,ISO9001 | ||
| Delivery time: | PCB | 3-12days | |
| PCBA | 8-20days | ||
| Tolerance of pcb | ±5% | ||
| Max size of finish board | 450*450mm | ||
| MOQ | NO MOQ (1pcs) | ||
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | ||
| PCB outline | Square,circle,irregular(with jigs) | ||
| package | QFN,BGA,SSOP,PLCC,LGA | ||
| Sub-assembly | Plastic,metal,screen | ||

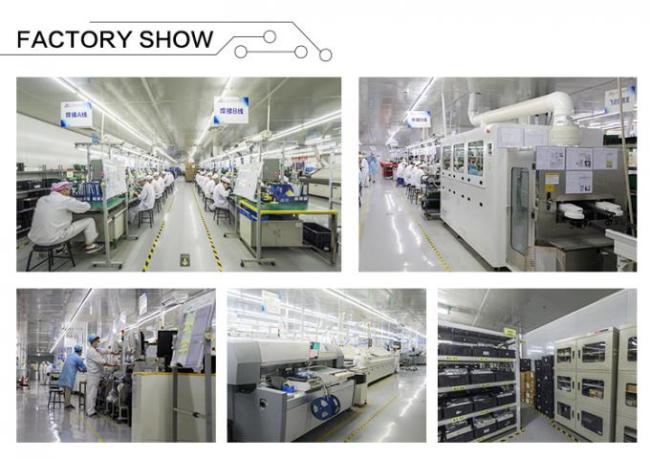

Leadsintec Technology Co., Ltd is a professional PCB manufacturer in China, Shenzhen. With 14 years of development, FASPCBA turns into a first class manufacturer of HDI PCB, with production capability 35,000 square meters. Leadsintec is providing high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world.
Our aggressive business strategy enables us to deliver high competitive services for our diverse, competitive customer base. Through this strategy, we are able to make fast, flexible decisions in response to changing market conditions and create most value and benefits for customers.
As for Service, we provide 7days 24hours on-line professional Pre-sale, Selling and After-Sale service to solve any question about the order. Any time, any requirement will get Prompt Reply from our well-trained and friendly support staff.
Our main market is Europe, north USA,Australia, South America, and Asia. we will put much more effort to build connection with more customers in more area. All we want to do, is to connect the world by our products, to share the Value, Happyness and Achievement with more customers.
Service
* Small to a medium volume PCB manufacturer
* Multi PCB types manufacturer
* EMS/PCBA/OEM customers reliable PCB partner
* Trustworthy supplier for PCB trading companies
