OEM Keyboard Electronics PCB Assembly 3mil 1.2mm 10 Layers halogen free
OEM Keyboard Electronics PCB Assembly 3mil 1.2mm 10 Layers Halogen Free
Electronic pcb assembly manufactur keyboard multilayer pcb board
| OEM Services: | |||
| Layers | 1-48 layers | Min. line width | 2mil |
|
Max.board size (single&doule sided) |
700*1200mm | Min.annular ring width: vias | 3mil |
| Surface finish |
HAL(with Pb free),plated Ni/Au, Immersion silver,Imm Ni/Au,Imm Sn, hard gold,OSP,ect |
Min.board thickness(multilayer) | 4layers:0.4mm;
6layers:0.6mm;
8layers:1mm;
10layers:1.2mm
|
| Board materials |
FR4; high Tg; high CTI; halogen free; high frequency(rogers,taconic, PTFE,nelcon, ISOLA,polyclad 370 HR); thick copper |
Plating thickness (Technique: Immersion Ni/Au) |
Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U'' |
| Impedance control | ± 10% |
Distance between line to board edge |
Outline: 0.2mm V-CUT: 0.4mm |
|
Base copper thickness(Inner and outer layer) |
Min. thickness:1/3 OZ Max.thickness:6OZ | Min.hole size(board thickness ≥2mm) | Aspect ratio≤16 |
| Finished copper thickness | Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness 0.5OZ,
Max.thickness 6 OZ
|
Max.board thickness(single&doule sided) | 6mm |
As the experienced quick turn pcb prototype factory china, Leadsintec provide one-stop pcba assembly service for customers of automotive pcba, communication pcba, military pcba, aerospace pcba, Iot pcba, smart home pcba, industrial pcba, medical pcba, etc over 20 years.

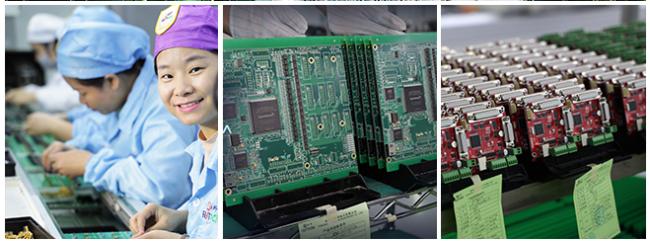

With an independent pcb factory in Jiangmen Guangdong province and PCB assembly factory in Shenzhen China, Leadsintec can provide the most competitive pcb cost for middle and high-end customers. The whole pcb fabrication and assembly process is strictly comply with ISO9001, ISO14001, ISO13485, IATF16949 Certification, safety, reliable and high yeild pcba obtained.
Leadsintec is the sole pcba assembly processing factory, who is highly praised by 2000 customers over 50 countries. The road to high quality is hard and long, Leadsintec will try our best to better service customers.
Leadsintec is the high tech pcb factory in baoan district shenzhen china, provide pcb and pcba solutions for customers involved in smart home, automotive electronic, medical electronic, industry, communication, military & aerospace etc.
